Removal & Installation (2.4L)
WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

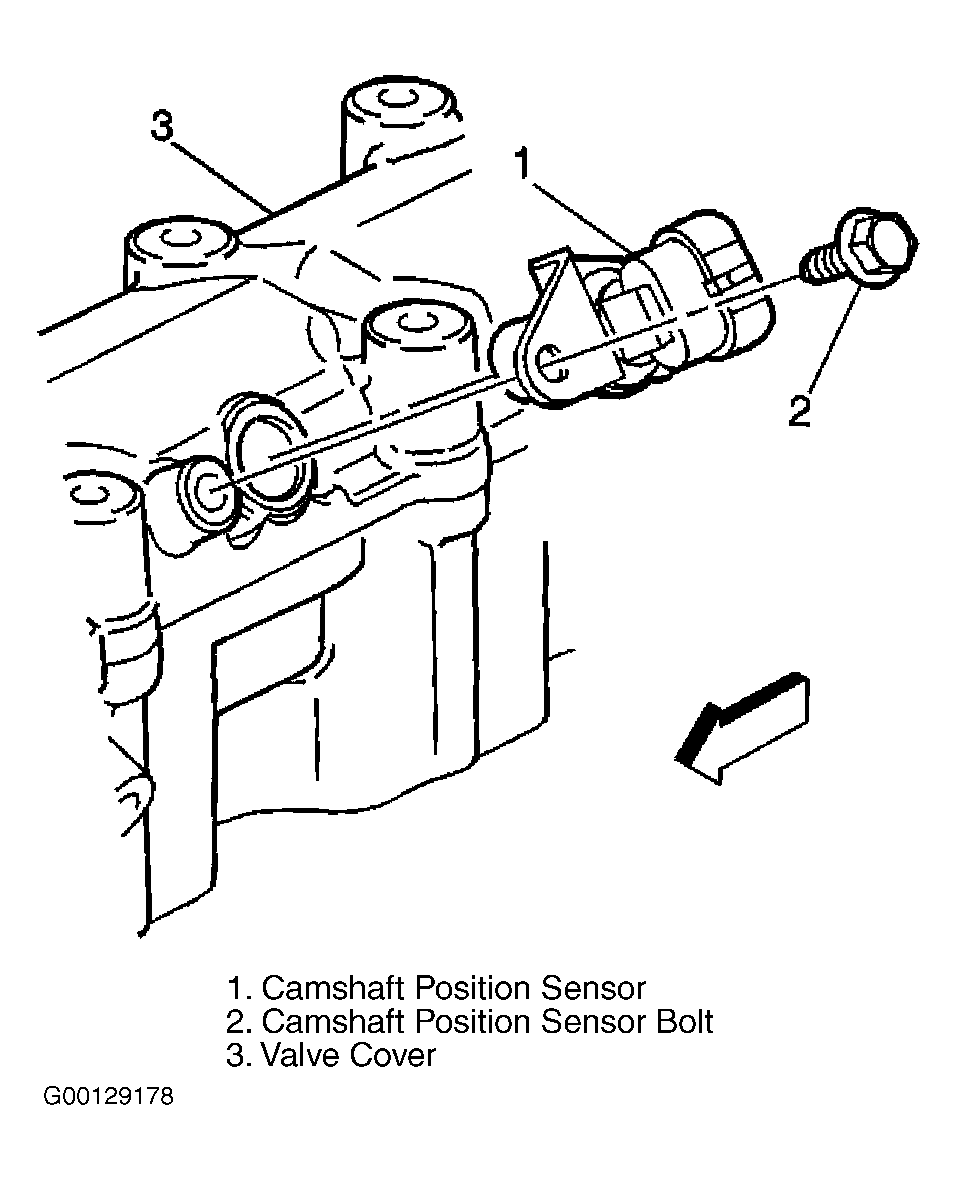

Camshaft Position (CMP) sensor is located in valve cover. See Fig 1. Disconnect negative battery cable. Remove CMP sensor mounting bolt and remove CMP sensor. To install, reverse removal procedure. Tighten CMP sensor bolt to specification. See TORQUE SPECIFICATIONS .
