Removal & Installation
WARNING: This page is about a different car, the 2002 Pontiac Sunfire and 2002 Chevrolet Cavalier. However, it is still accessible from the selected car via links, so may be relevant.

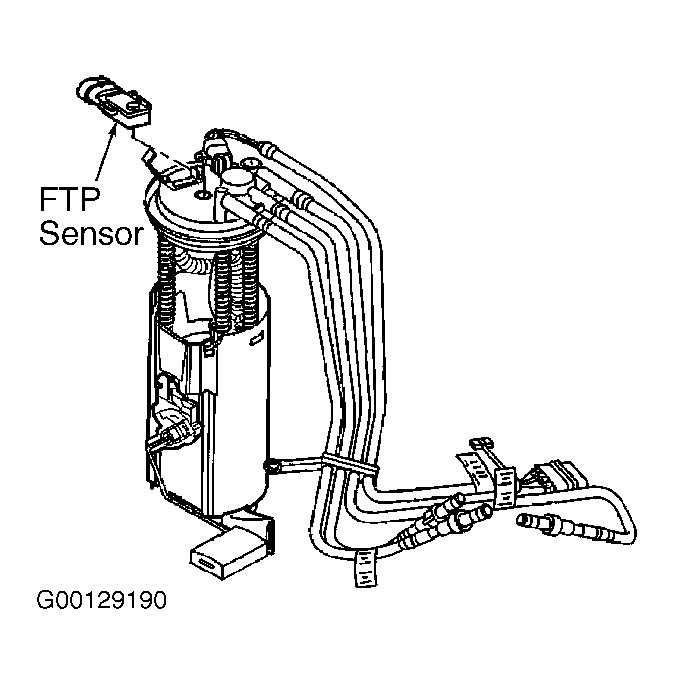

Fuel Tank Pressure (FTP) sensor is located on fuel sender assembly. See Fig 1. Release fuel system pressure. See FUEL SYSTEM PRESSURE RELEASE (GASOLINE) . Disconnect negative battery cable. Remove fuel tank. See FUEL TANK (GASOLINE) . Disconnect FTP sensor electrical connector. Remove FTP sensor. To install, reverse removal procedure. Tighten fasteners to specification. See TORQUE SPECIFICATIONS . Inspect for leaks by using the following procedure:
- Turn ignition on for 2 seconds.
- Turn ignition off for 10 seconds.
- Turn ignition on.
- Check for fuel leaks.
