Oil Pan - Right Side View

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

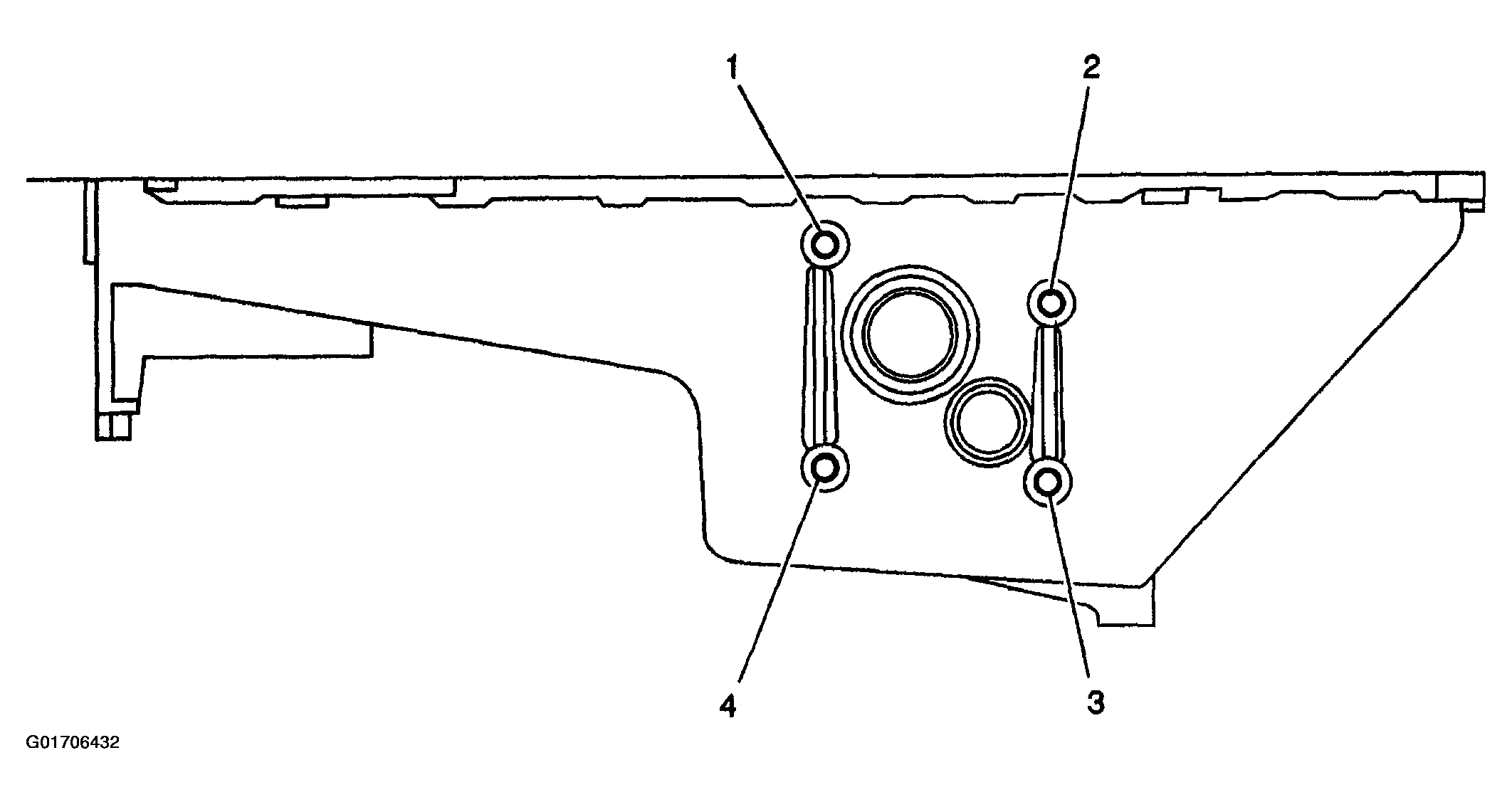

Fig 1: Oil Pan - Right Side View
G01706432Courtesy of GENERAL MOTORS CORP.

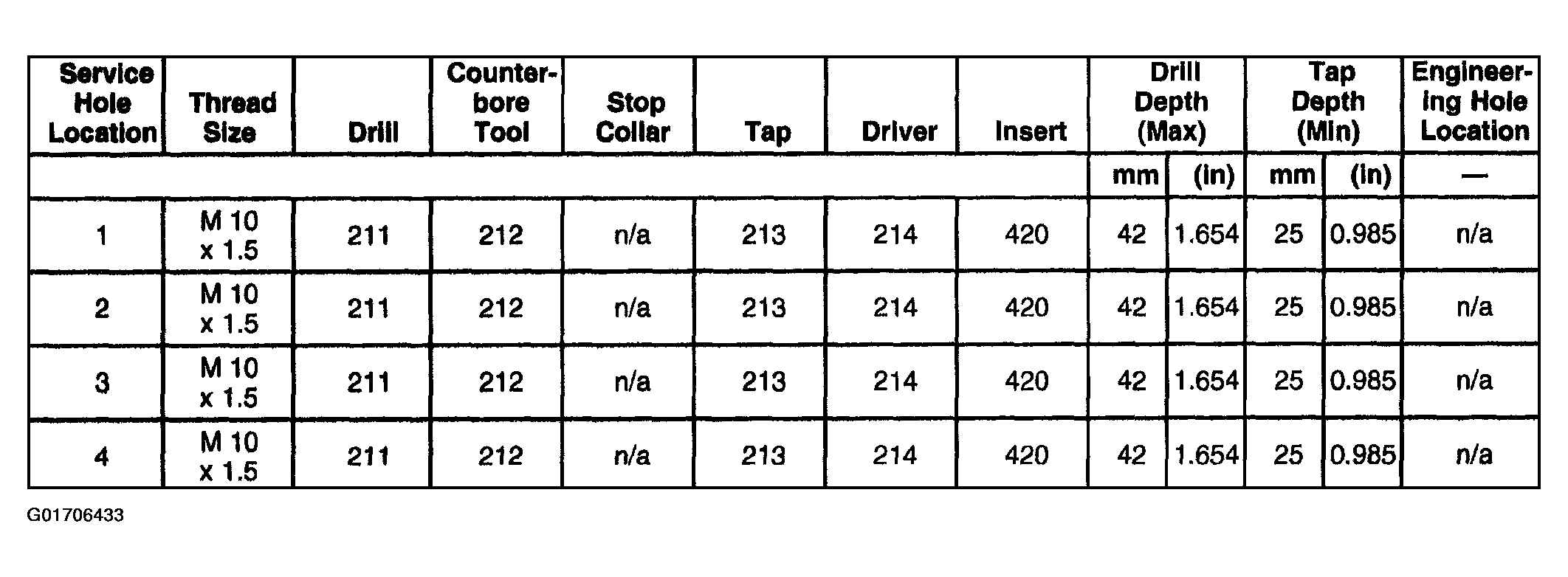

Fig 2: Oil Pan - Right Side View Service Hole Specifications
G01706433Courtesy of GENERAL MOTORS CORP.
