Engine Block - Rear View

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

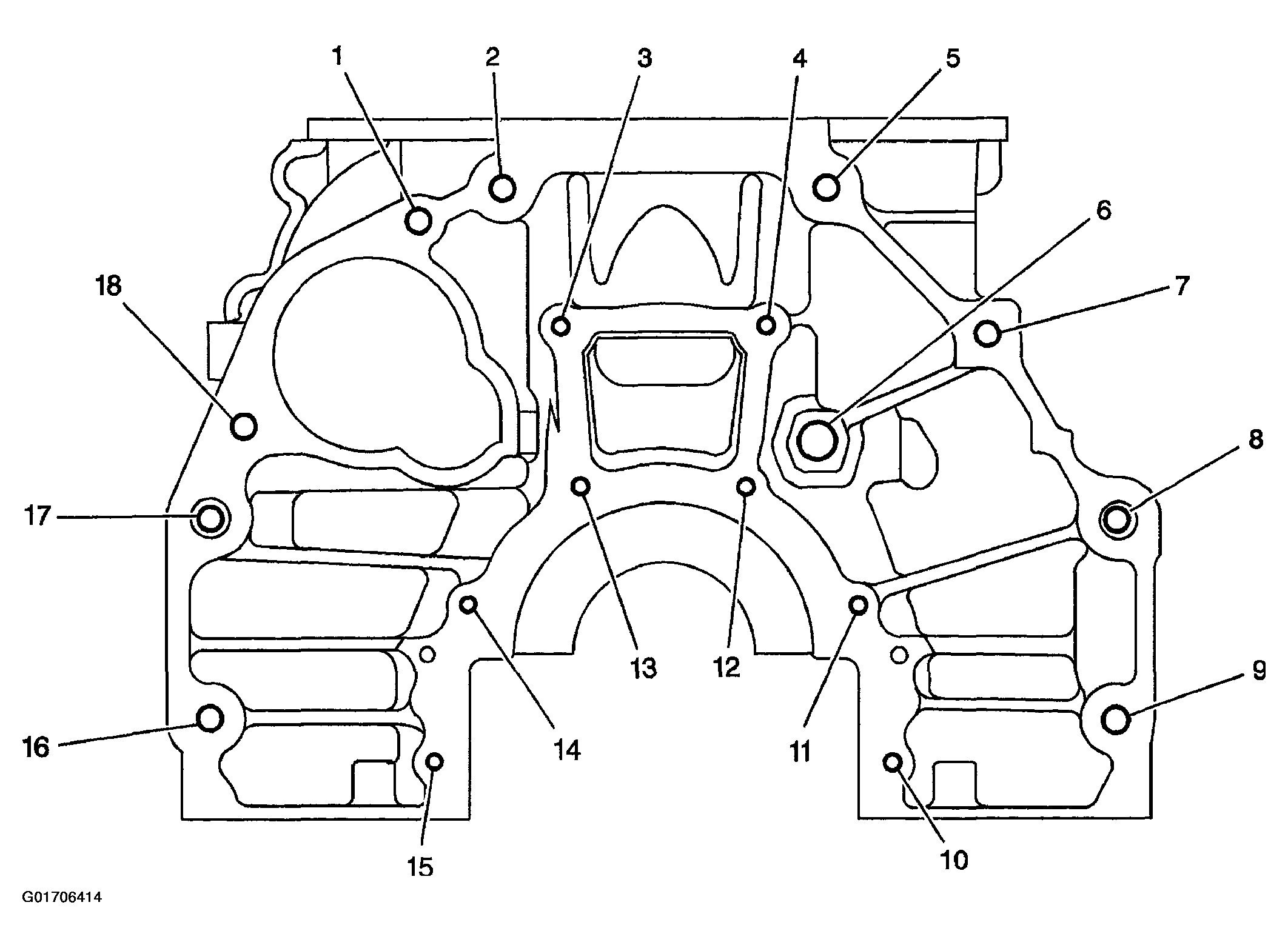

Fig 1: Engine Block - Rear View
G01706414Courtesy of GENERAL MOTORS CORP.

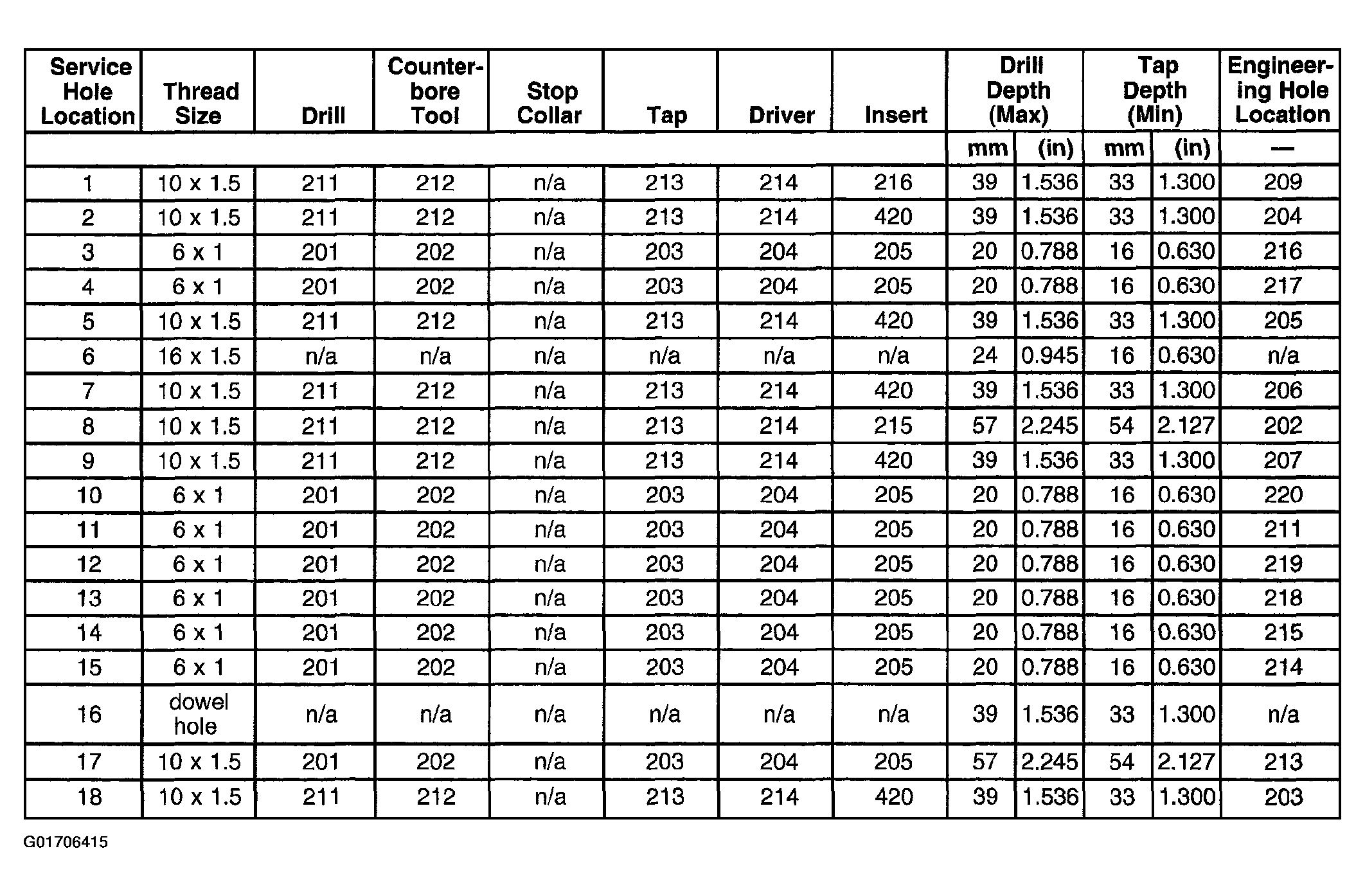

Fig 2: Engine Block - Rear View Service Hole Specifications (1 Of 2)
G01706415Courtesy of GENERAL MOTORS CORP.

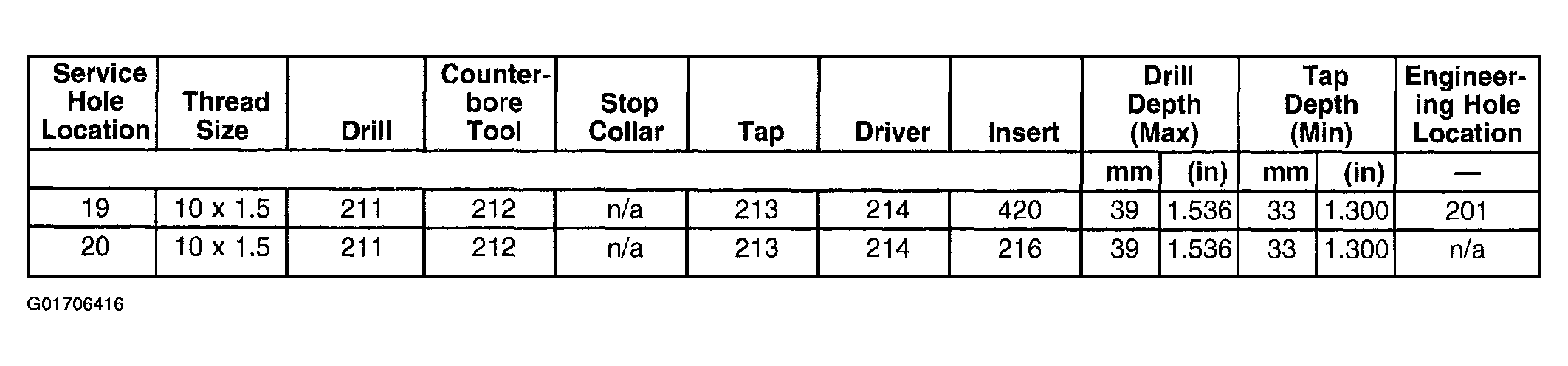

Fig 3: Engine Block - Rear View Service Hole Specifications (2 Of 2)
G01706416Courtesy of GENERAL MOTORS CORP.
