Engine Block - Left Side View

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

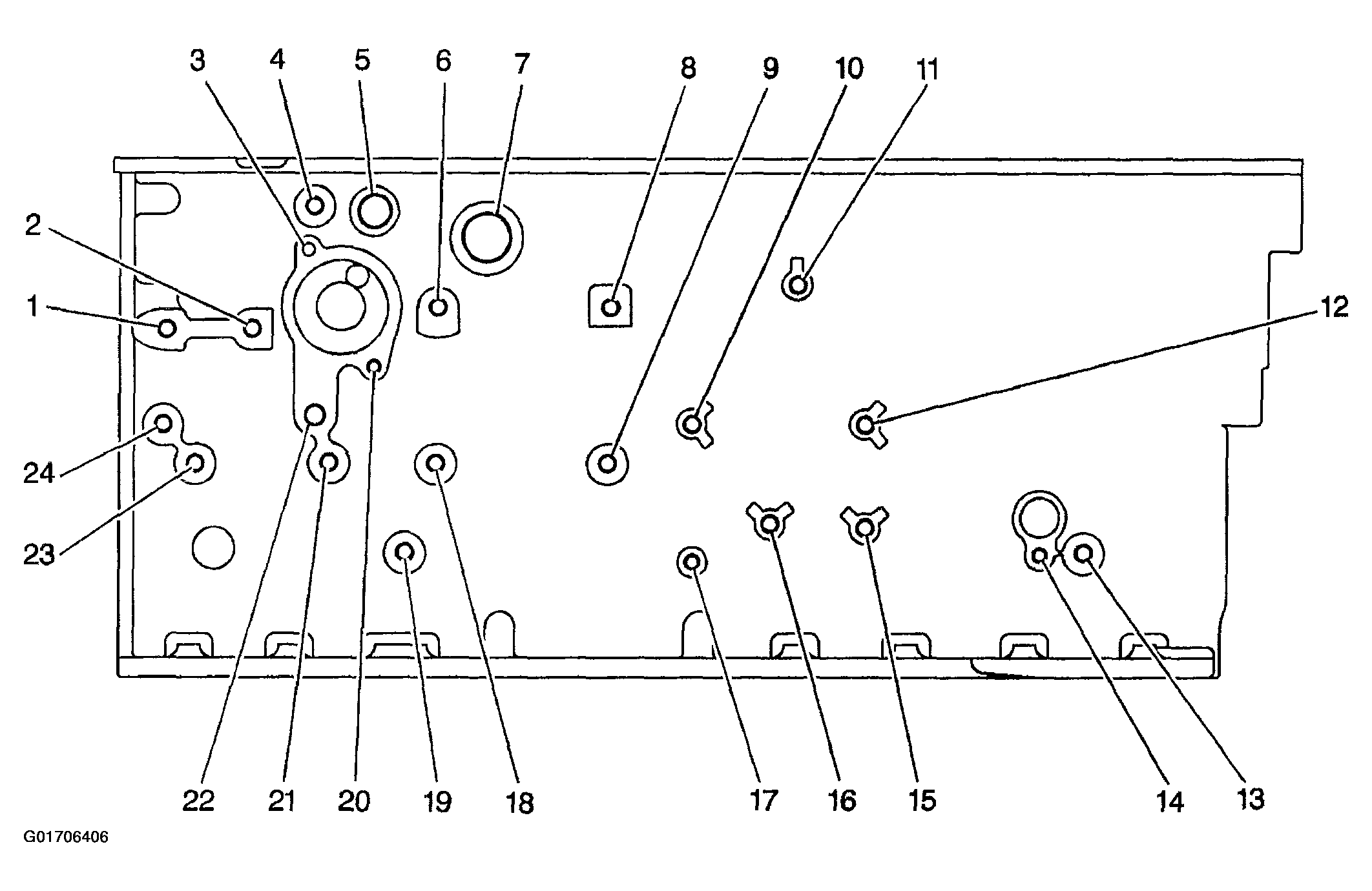

Fig 1: Engine Block - Left Side View
G01706406Courtesy of GENERAL MOTORS CORP.

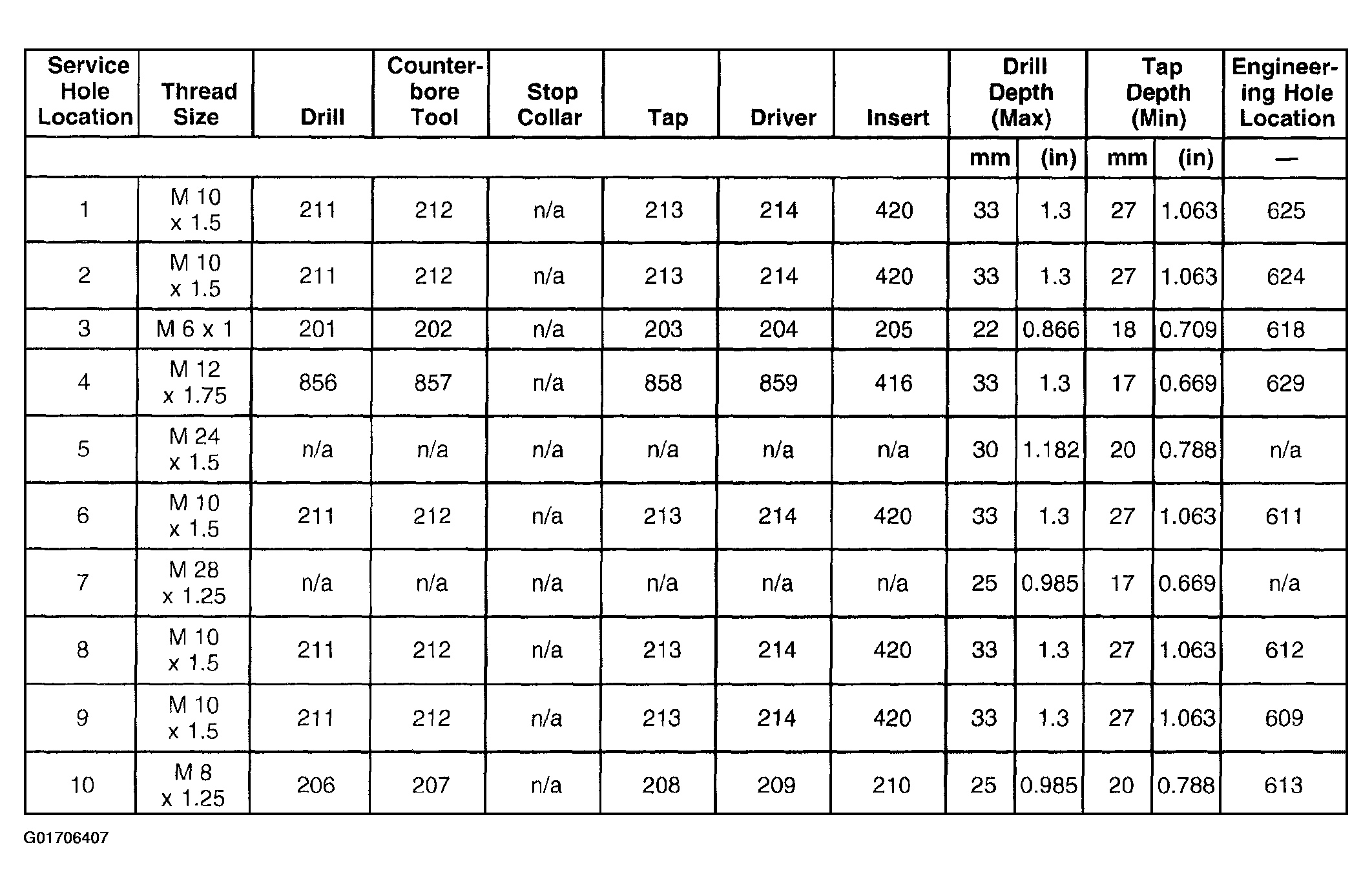

Fig 2: Engine Block - Left Side View Service Hole Specifications (1 Of 2)
G01706407Courtesy of GENERAL MOTORS CORP.

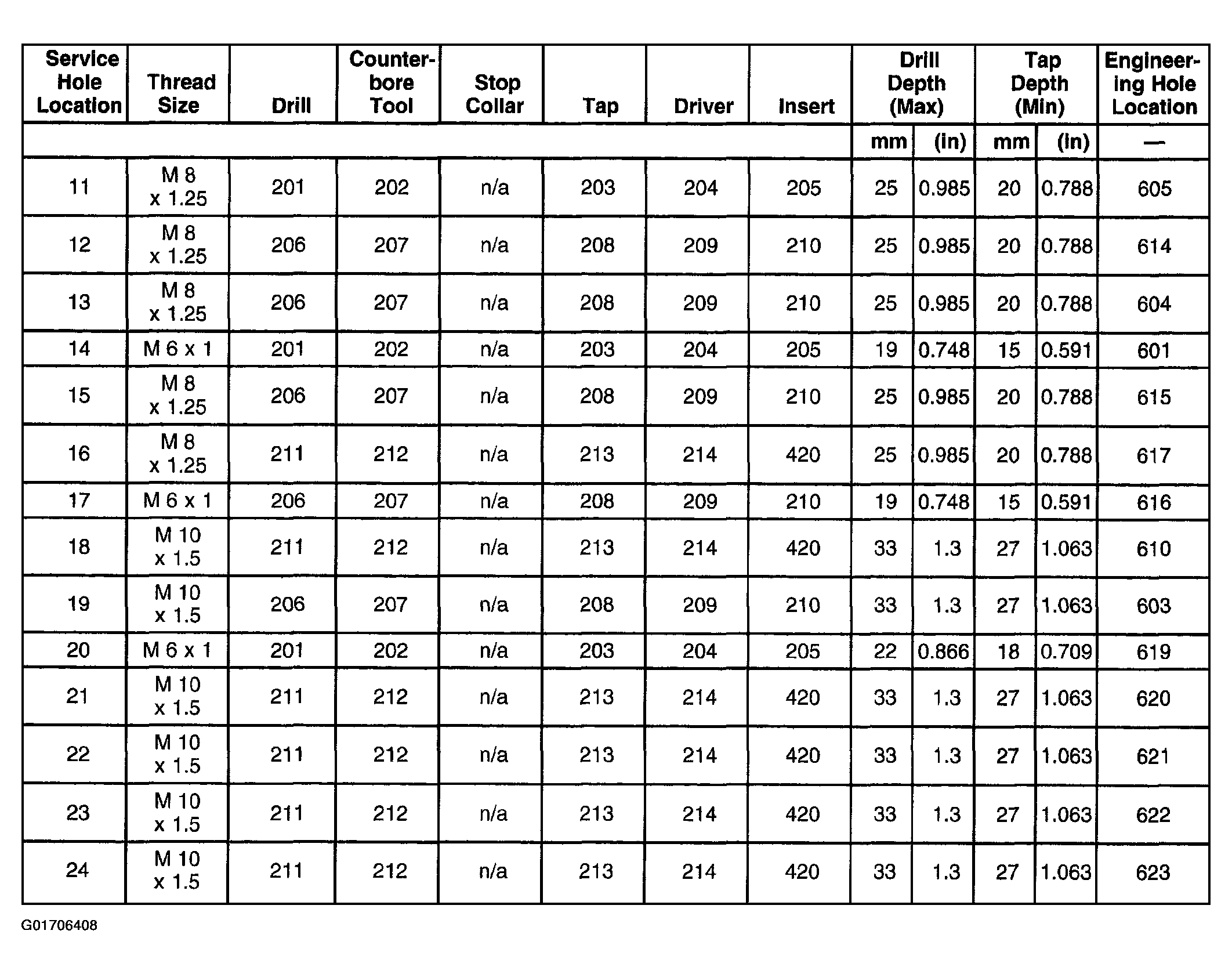

Fig 3: Engine Block - Left Side View Service Hole Specifications (2 Of 2)
G01706408Courtesy of GENERAL MOTORS CORP.
