Engine Block - Front View

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

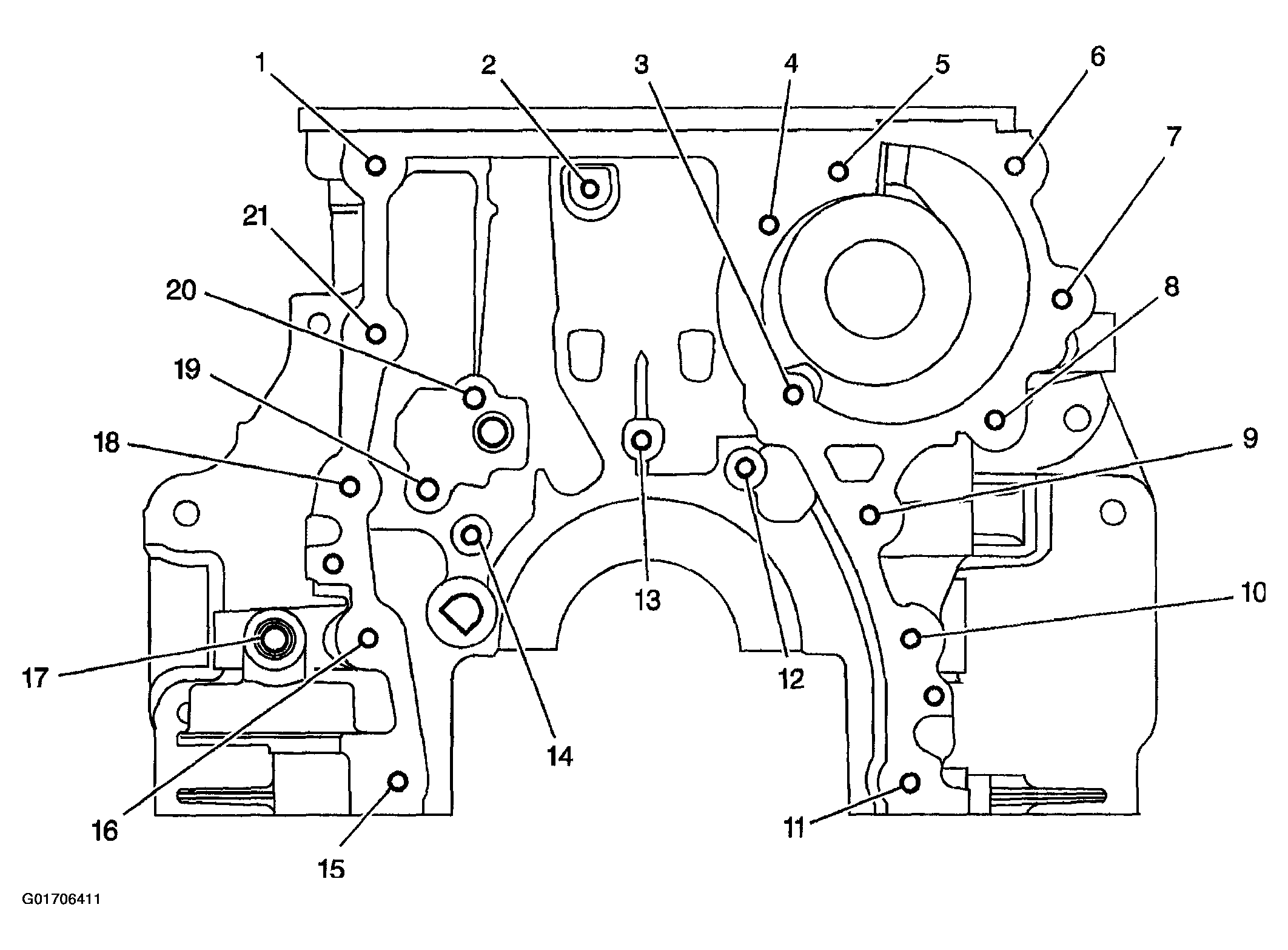

Fig 1: Engine Block - Front View
G01706411Courtesy of GENERAL MOTORS CORP.

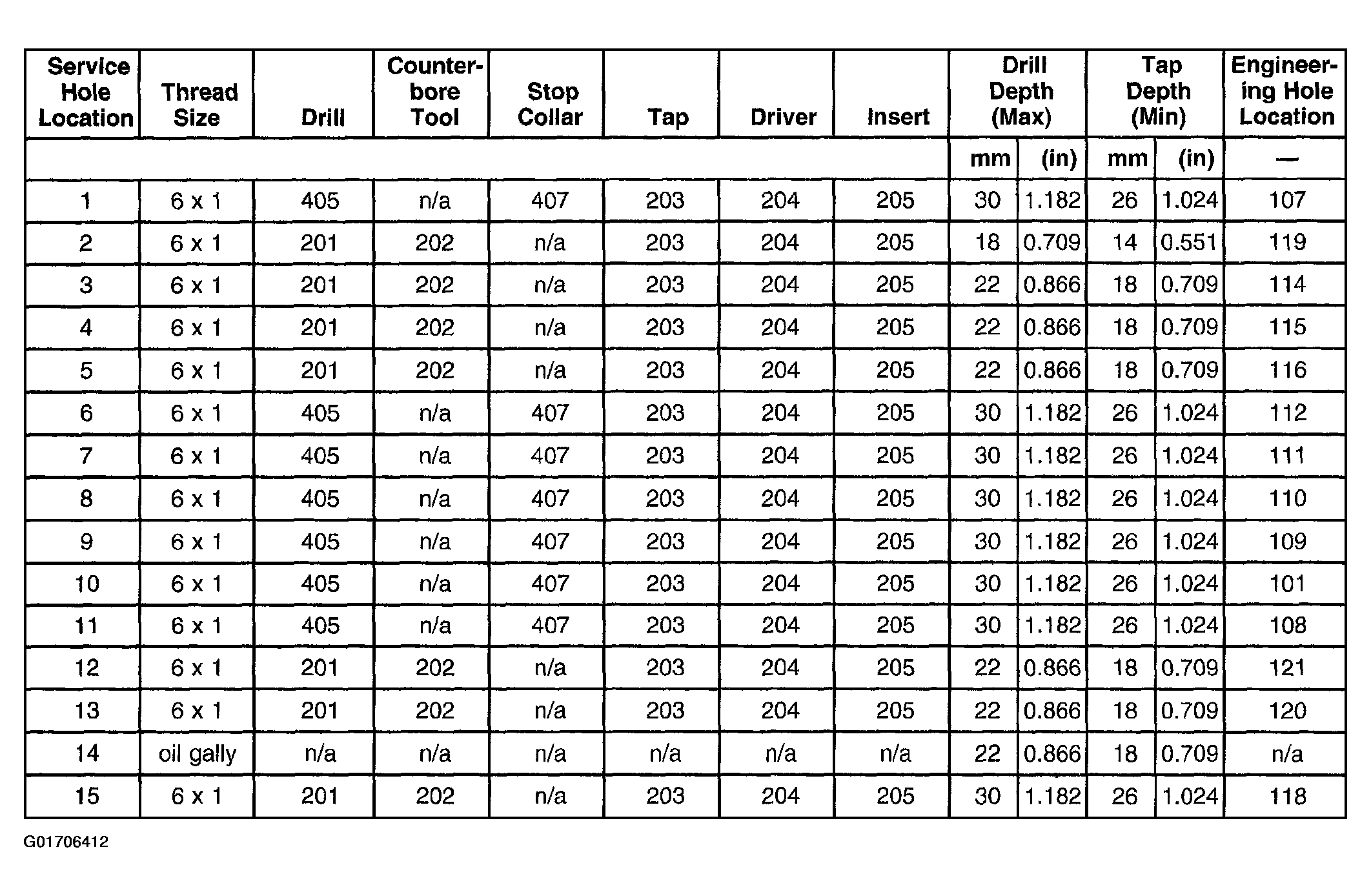

Fig 2: Engine Block - Front View Service Hole Specifications (1 Of 2)
G01706412Courtesy of GENERAL MOTORS CORP.

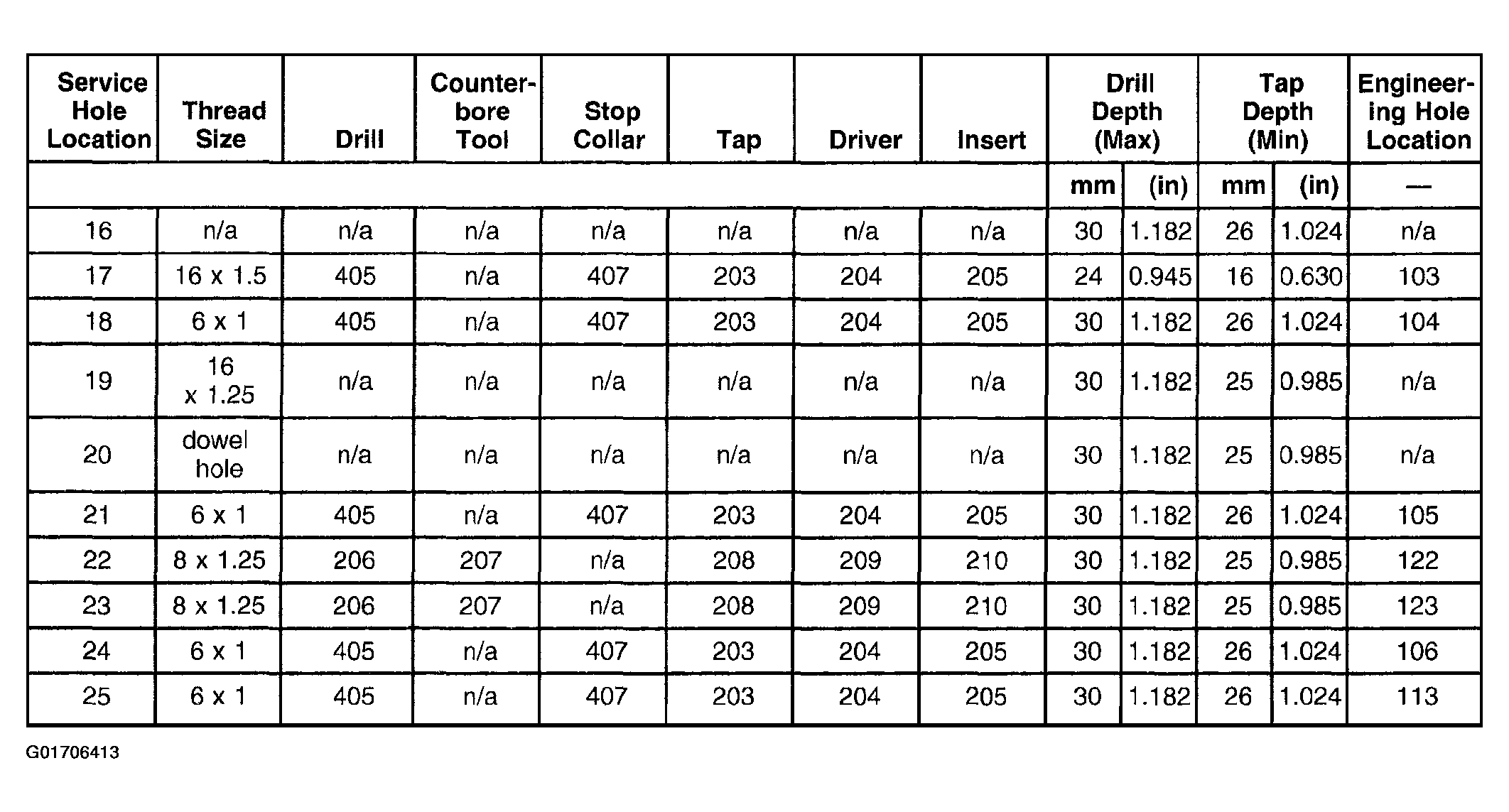

Fig 3: Engine Block - Front View Service Hole Specifications (2 Of 2)
G01706413Courtesy of GENERAL MOTORS CORP.
