Engine Block - Bottom View

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

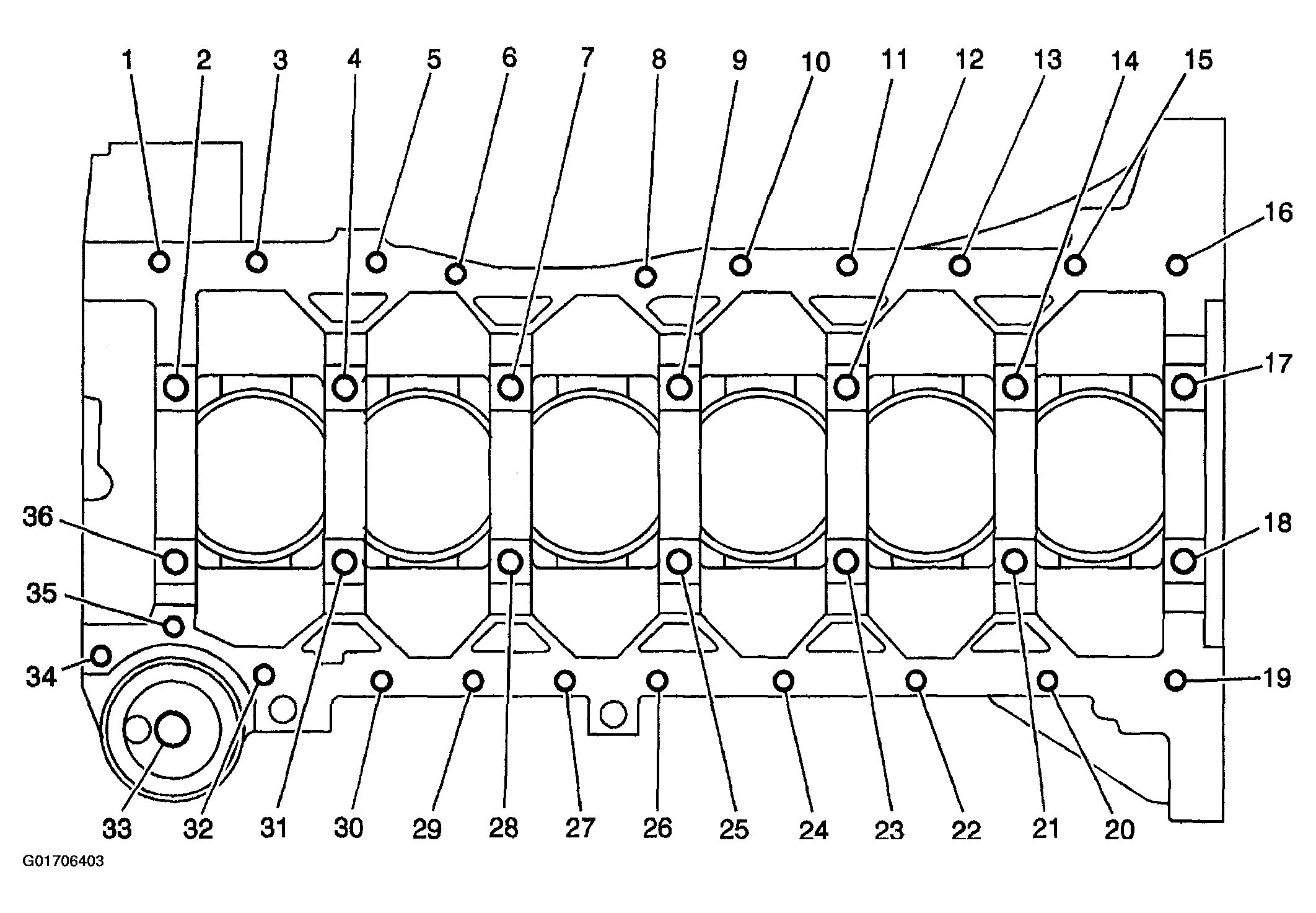

Fig 1: Engine Block - Bottom View
G01706403Courtesy of GENERAL MOTORS CORP.

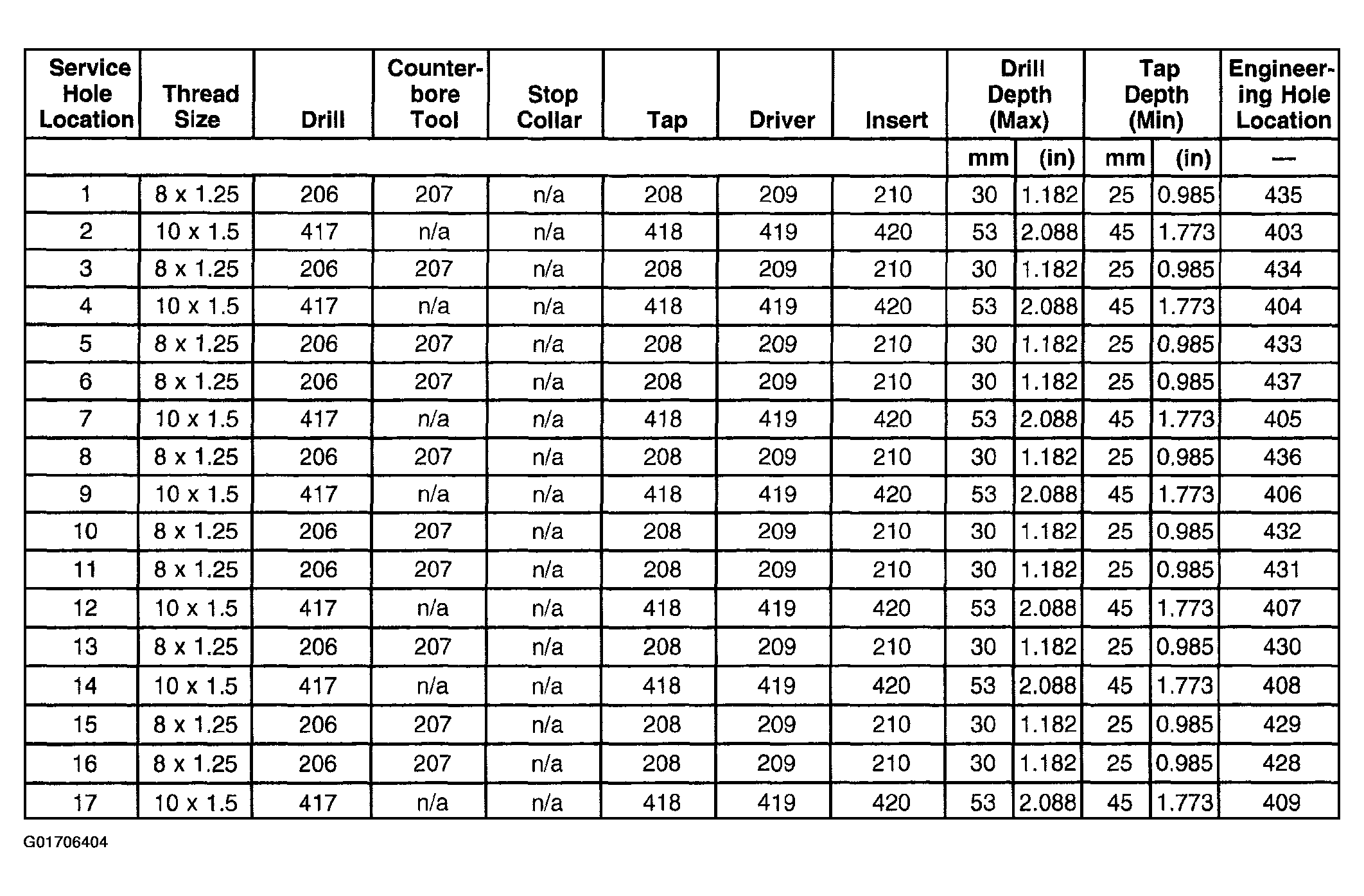

Fig 2: Engine Block - Bottom View Service Hole Specifications (1 Of 2)
G01706404Courtesy of GENERAL MOTORS CORP.

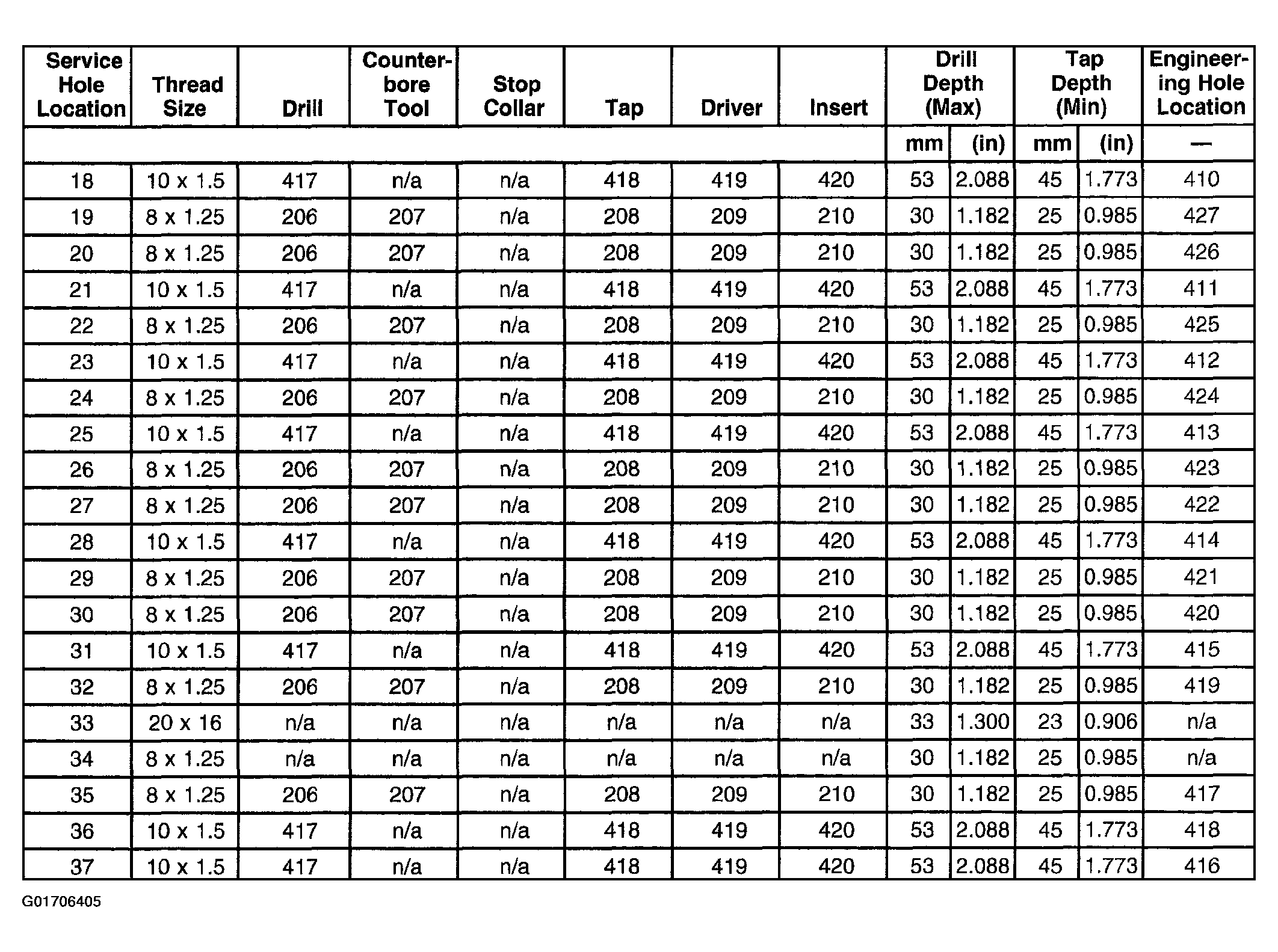

Fig 3: Engine Block - Bottom View Service Hole Specifications (2 Of 2)
G01706405Courtesy of GENERAL MOTORS CORP.
