Cylinder Head - Top View

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

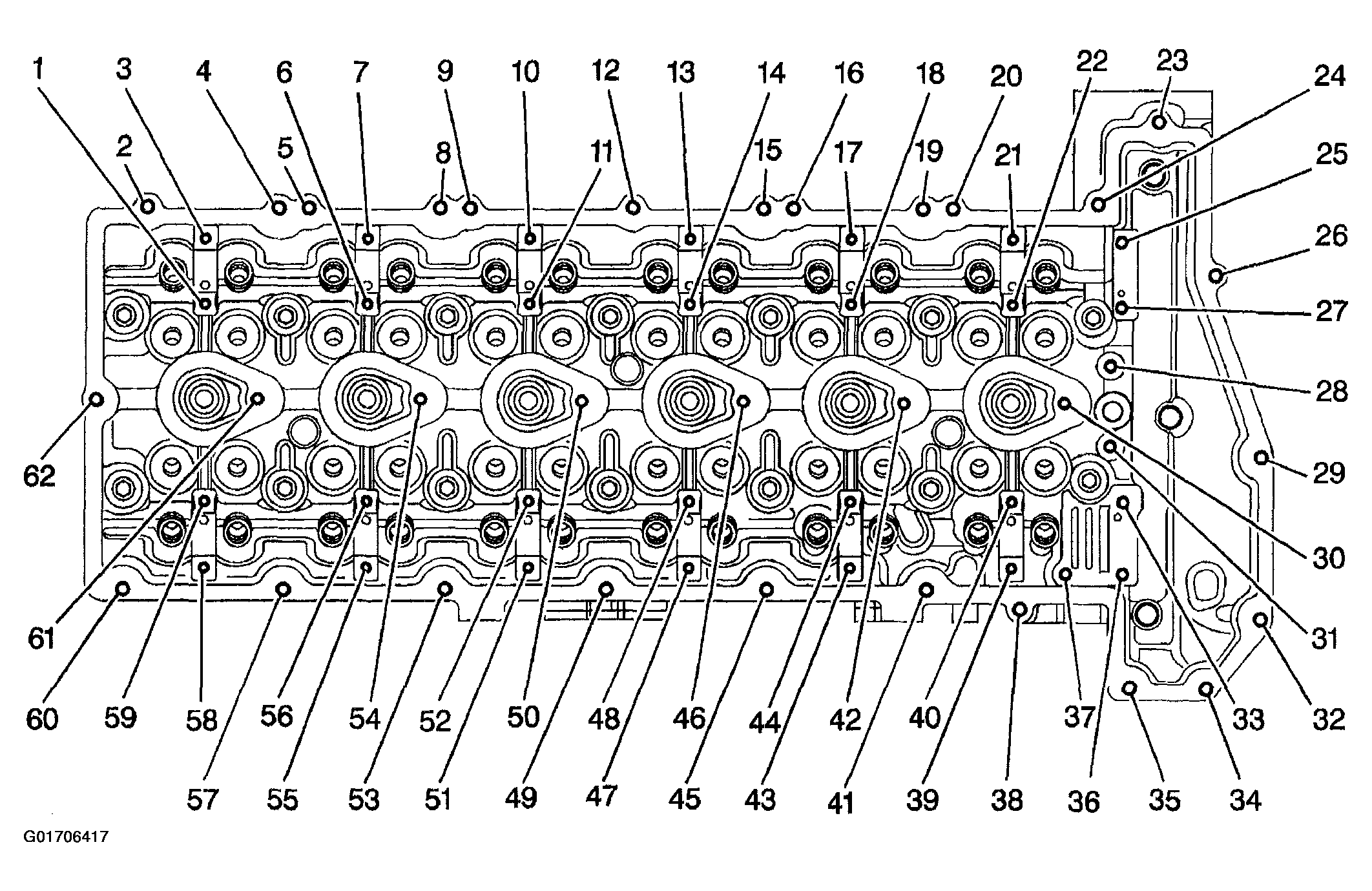

Fig 1: Cylinder Head - Top View
G01706417Courtesy of GENERAL MOTORS CORP.

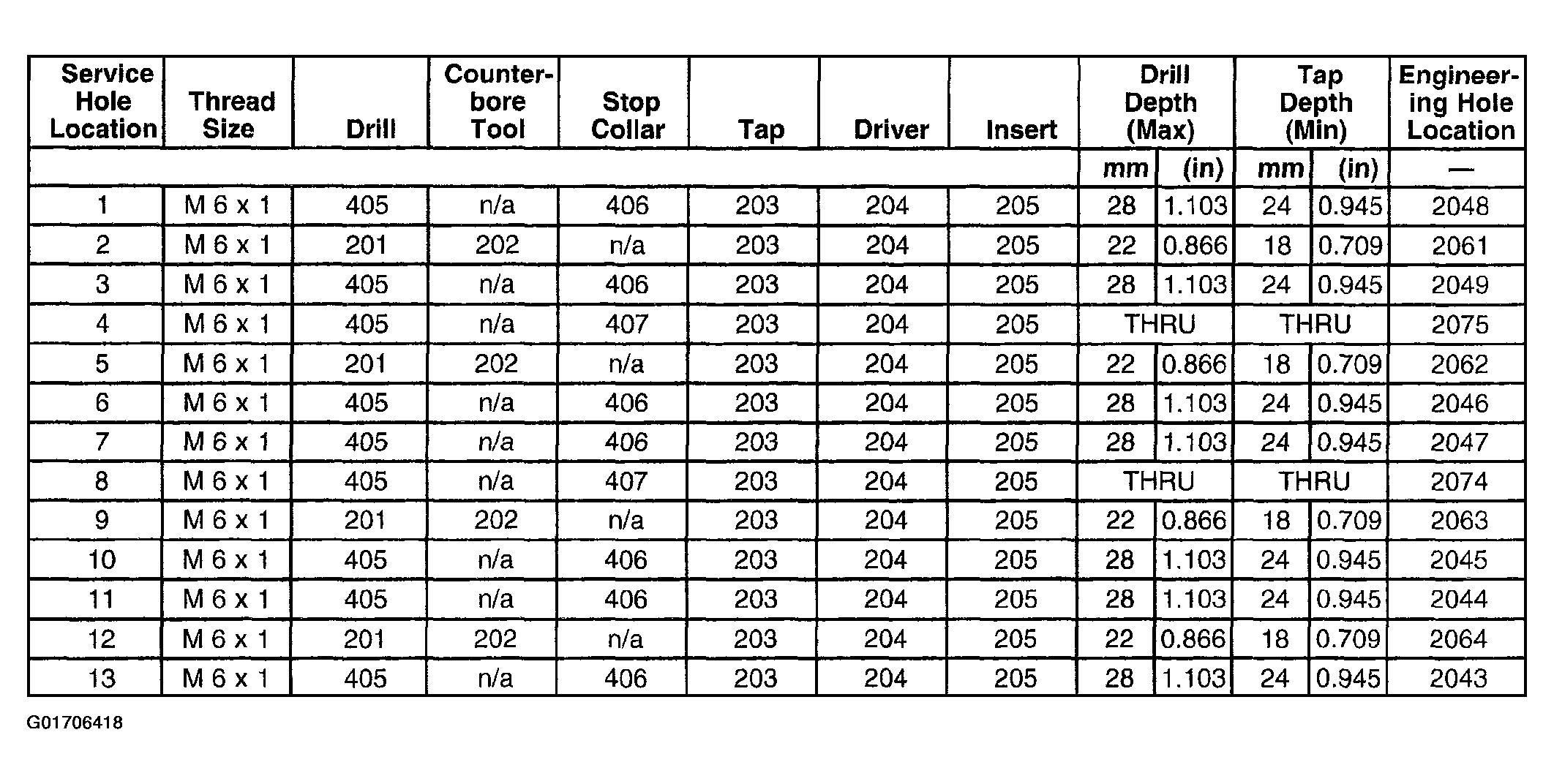

Fig 2: Cylinder Head - Top View Service Hole Specifications (1 Of 2)
G01706418Courtesy of GENERAL MOTORS CORP.

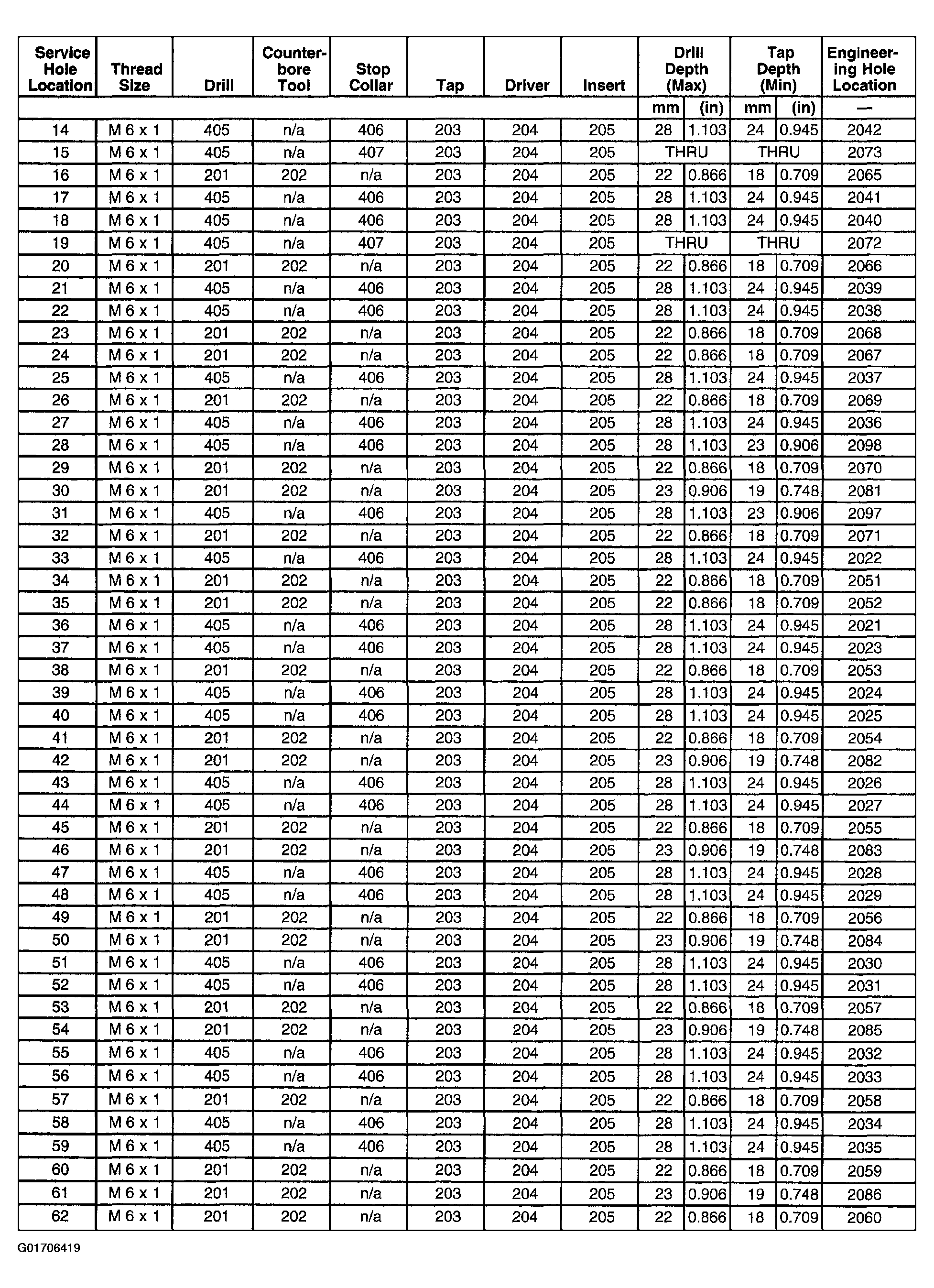

Fig 3: Cylinder Head - Top View Service Hole Specifications (2 Of 2)
G01706419Courtesy of GENERAL MOTORS CORP.
