Cylinder Head - Intake Manifold Deck View

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

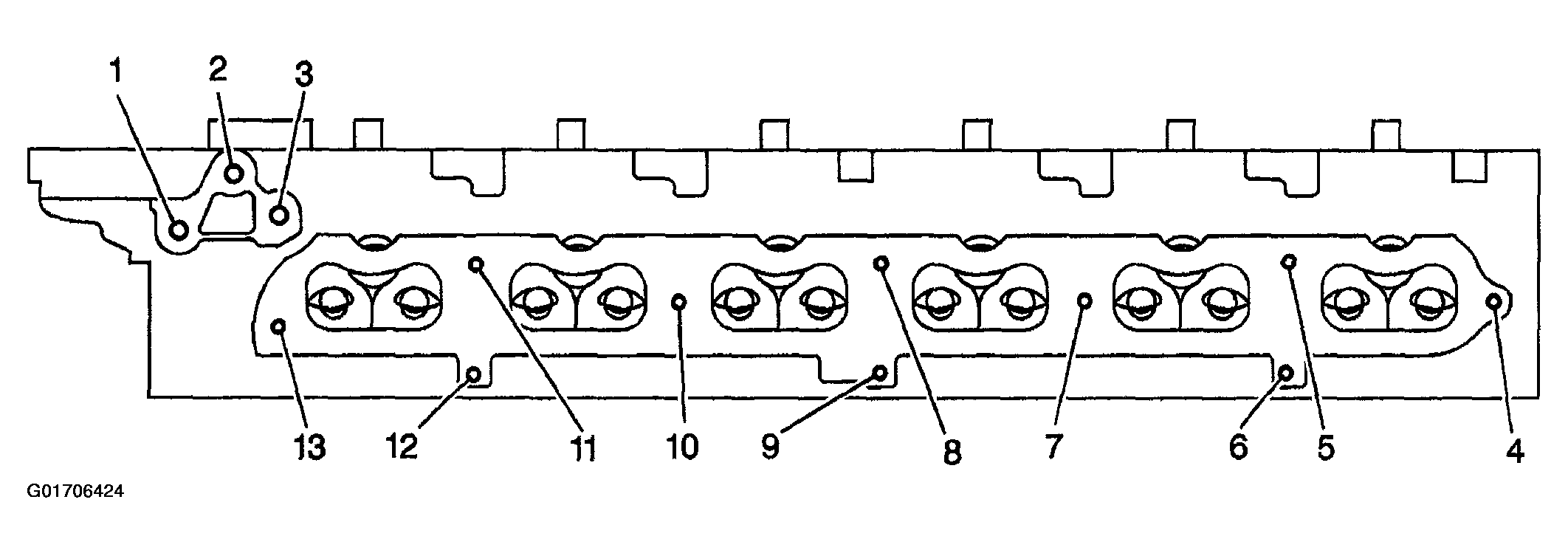

Fig 1: Cylinder Head - Intake Manifold Deck View
G01706424Courtesy of GENERAL MOTORS CORP.

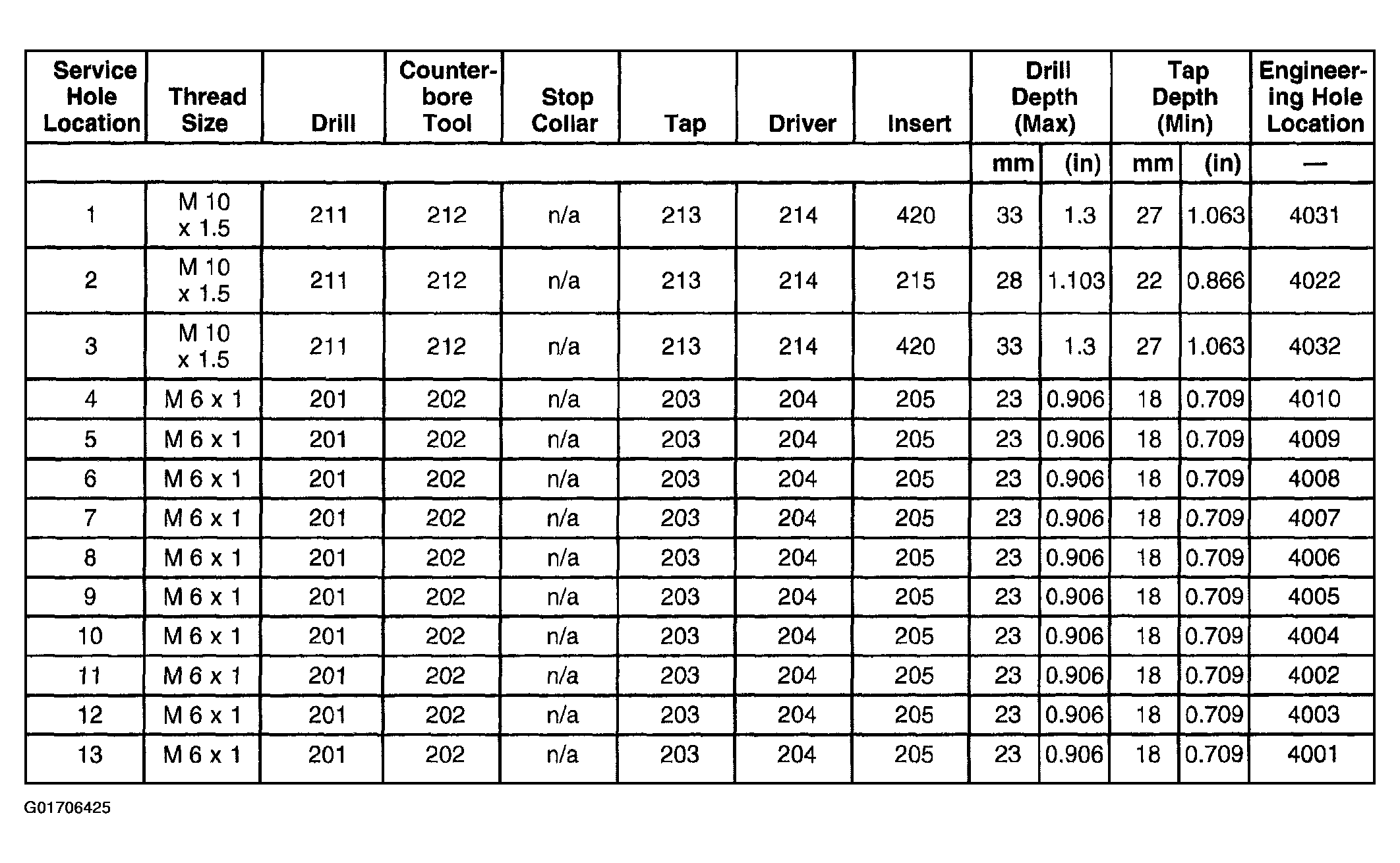

Fig 2: Cylinder Head - Intake Manifold Deck View Service Hole Specifications
G01706425Courtesy of GENERAL MOTORS CORP.
