Cylinder Head - Exhaust Manifold Deck View

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

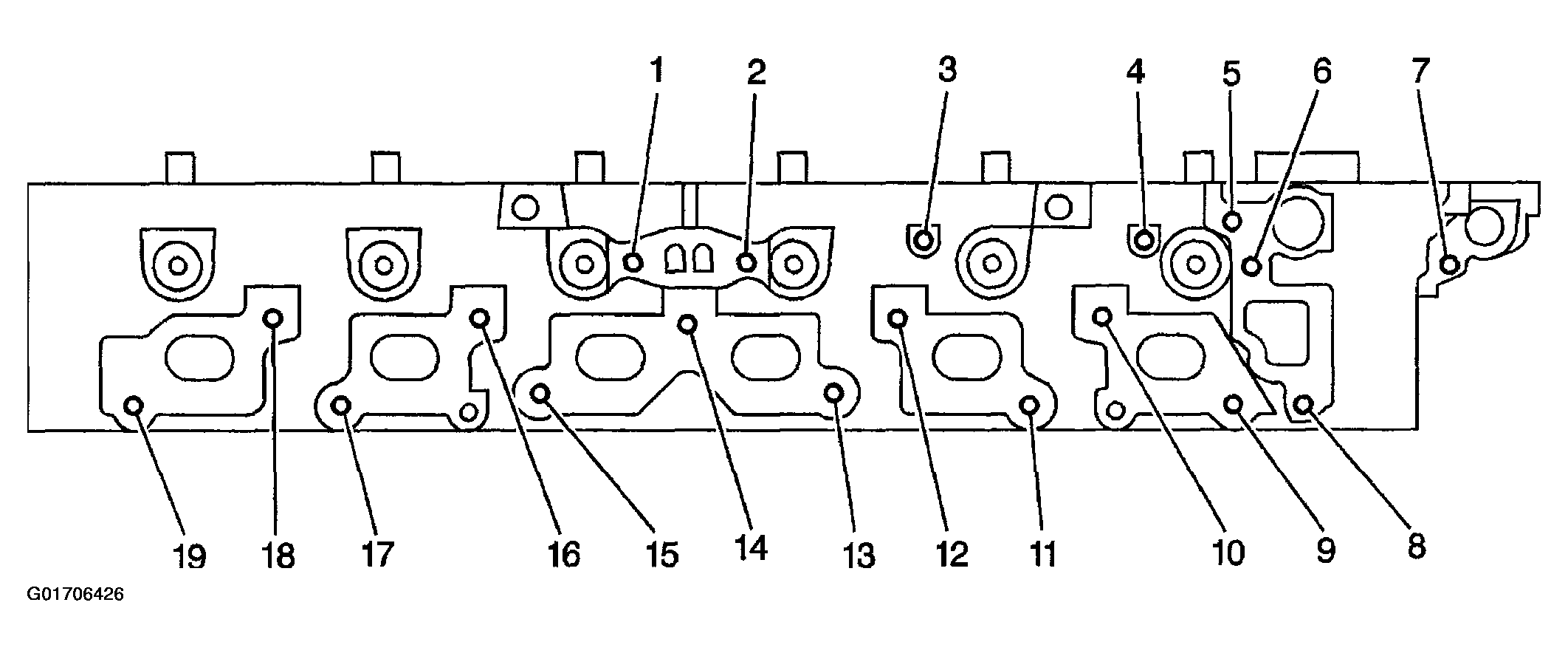

Fig 1: Cylinder Head - Exhaust Manifold Deck View
G01706426Courtesy of GENERAL MOTORS CORP.

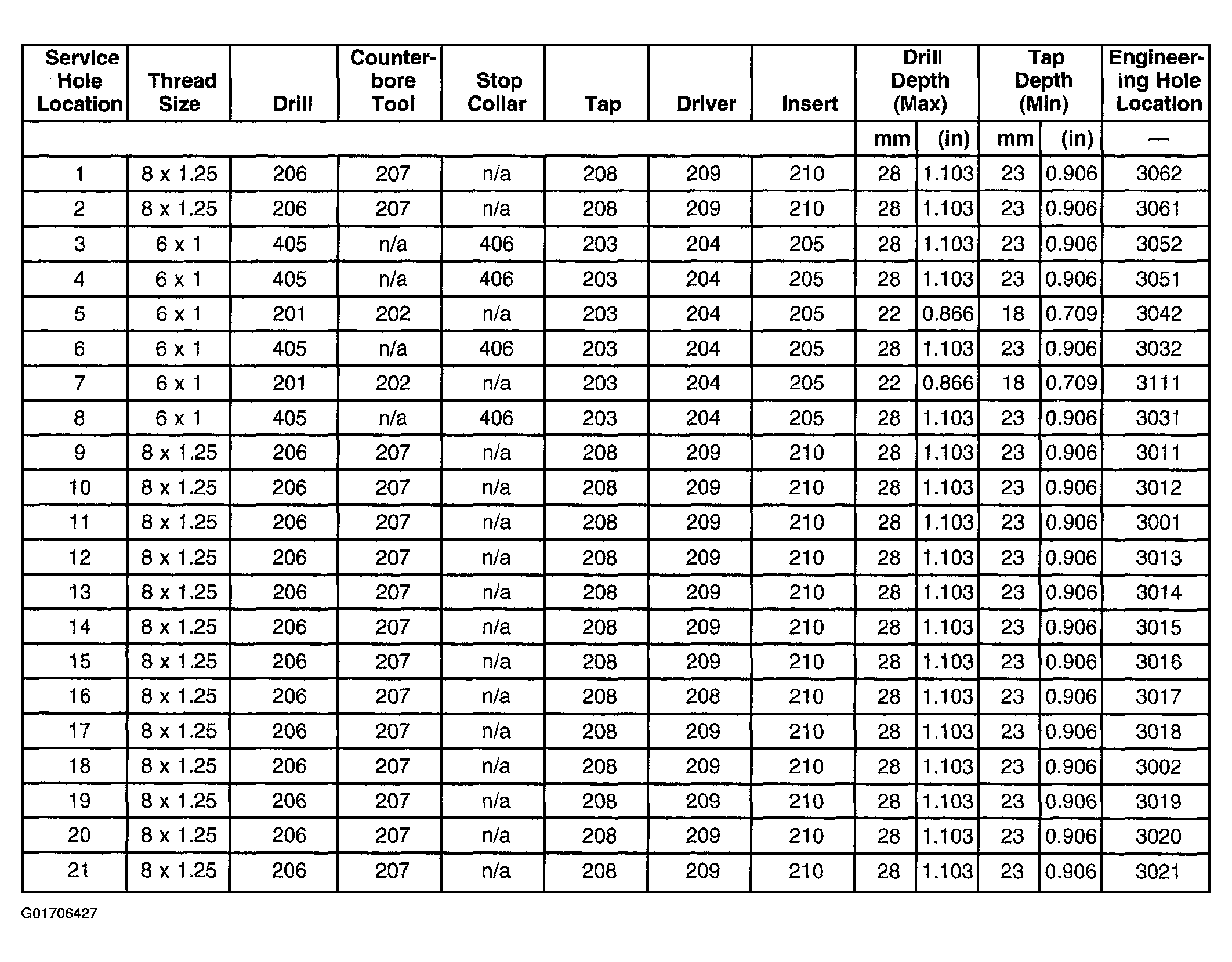

Fig 2: Cylinder Head - Exhaust Manifold Deck View Service Hole Specifications
G01706427Courtesy of GENERAL MOTORS CORP.
