Cylinder Head - End View (Front)

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

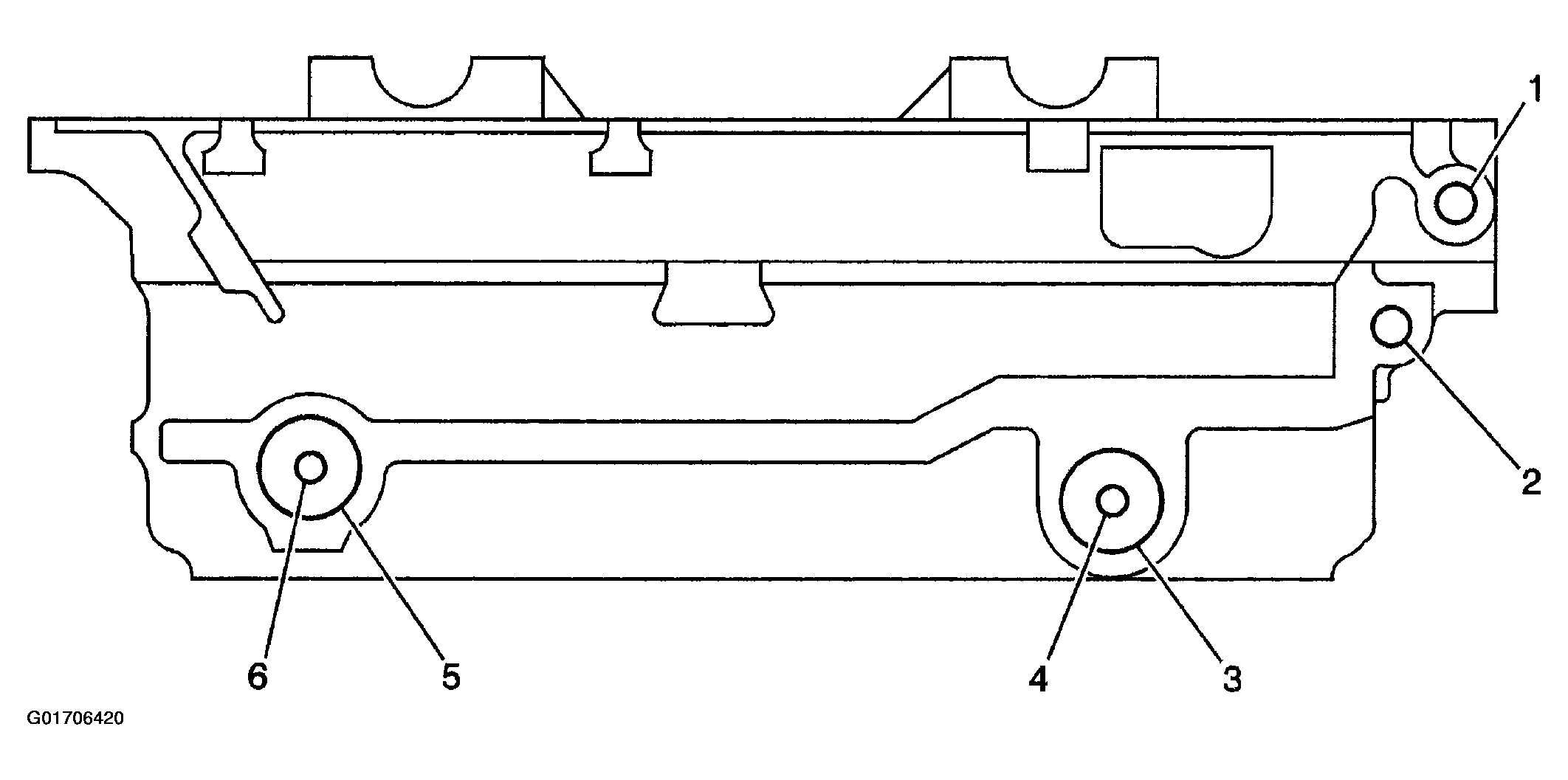

Fig 1: Cylinder Head - End View (Front)
G01706420Courtesy of GENERAL MOTORS CORP.

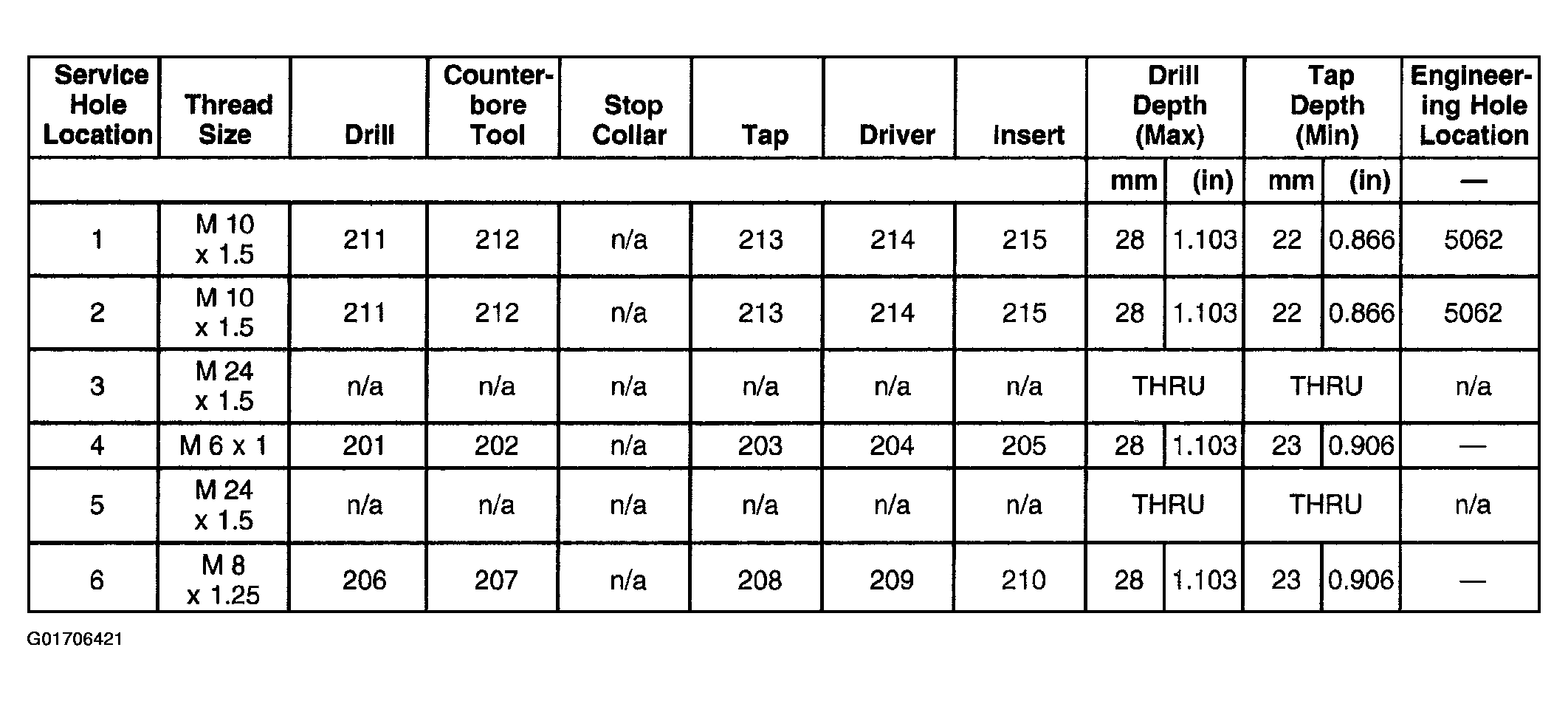

Fig 2: Cylinder Head - End View (Front) Service Hole Specifications
G01706421Courtesy of GENERAL MOTORS CORP.
