Crankshaft Rear Oil Seal Housing

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

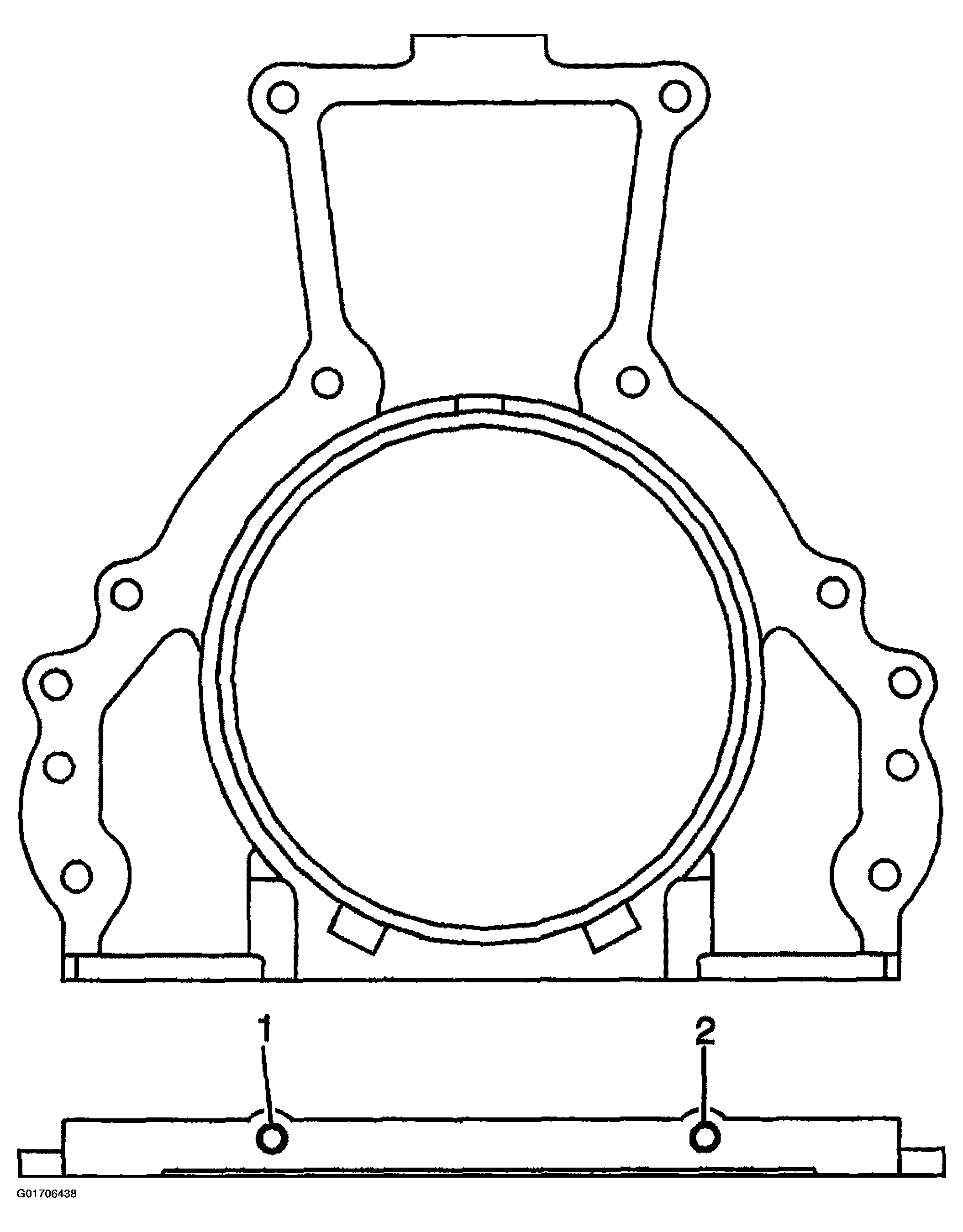

Fig 1: Crankshaft Rear Oil Seal Housing
G01706438Courtesy of GENERAL MOTORS CORP.

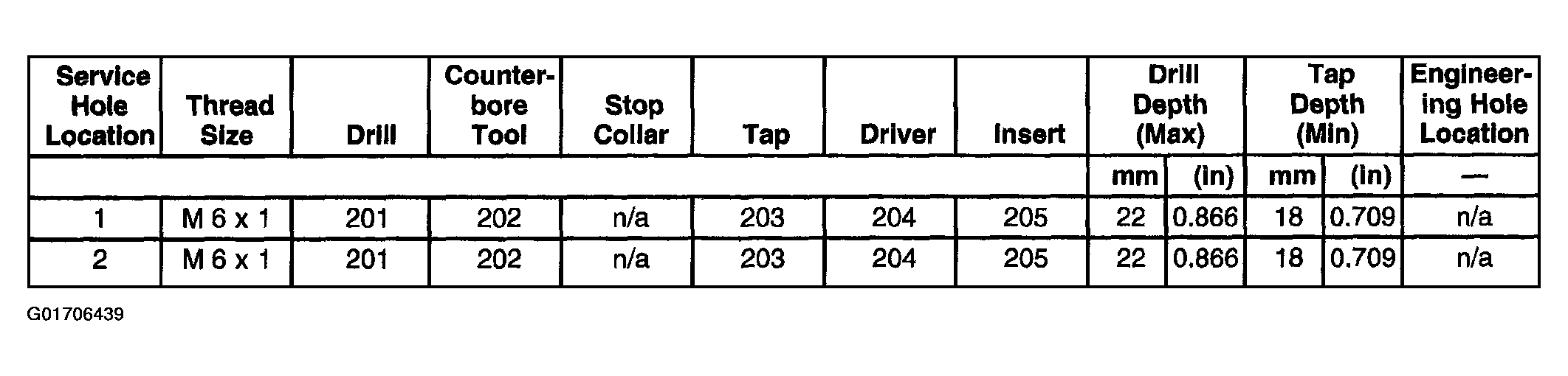

Fig 2: Crankshaft Rear Oil Seal Housing Service Hole Specifications
G01706439Courtesy of GENERAL MOTORS CORP.
