Water Pump Removal

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Tool Required : J 41240 Pulley Holding Tool

Install J 41240 to hold the pulley.
Remove the water pump pulley bolts.
Remove J 41240.
Remove the water pump pulley

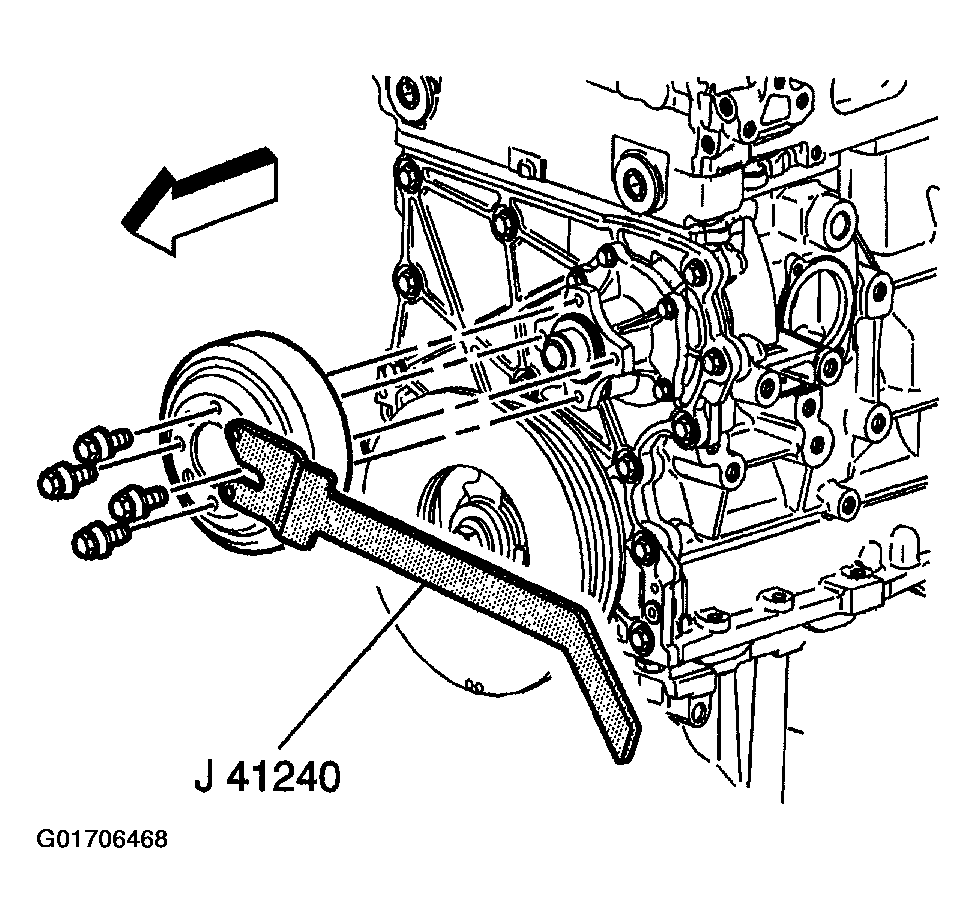

Fig 1: Installing J 41240 To Hold Pulley

Courtesy of GENERAL MOTORS CORP.

Remove the water pump bolts.
Remove the water pump.

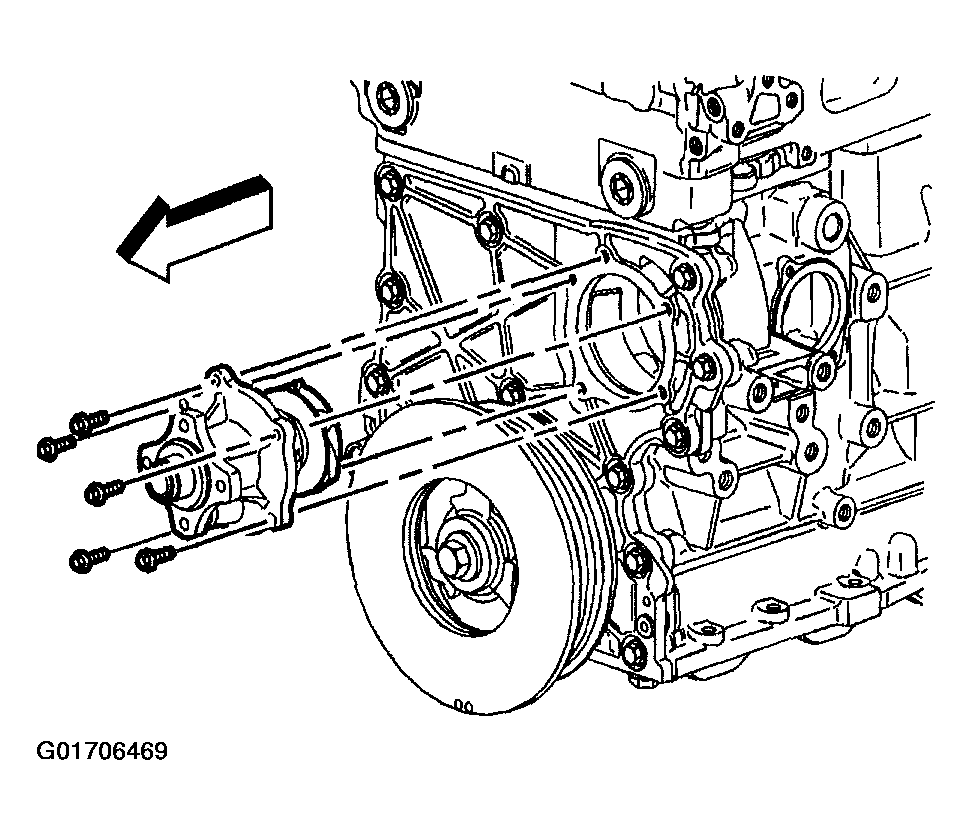

Fig 2: Removing Water Pump

Courtesy of GENERAL MOTORS CORP.

Remove the water pump gasket.
