Water Pump Installation

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Tool Required : J 41240 Pulley Holding Tool

Install the water pump gasket.
Install the water pump.
Install the water pump bolts.
NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

Tighten

Tighten the water pump bolts to 10 N.m (89 lb in).

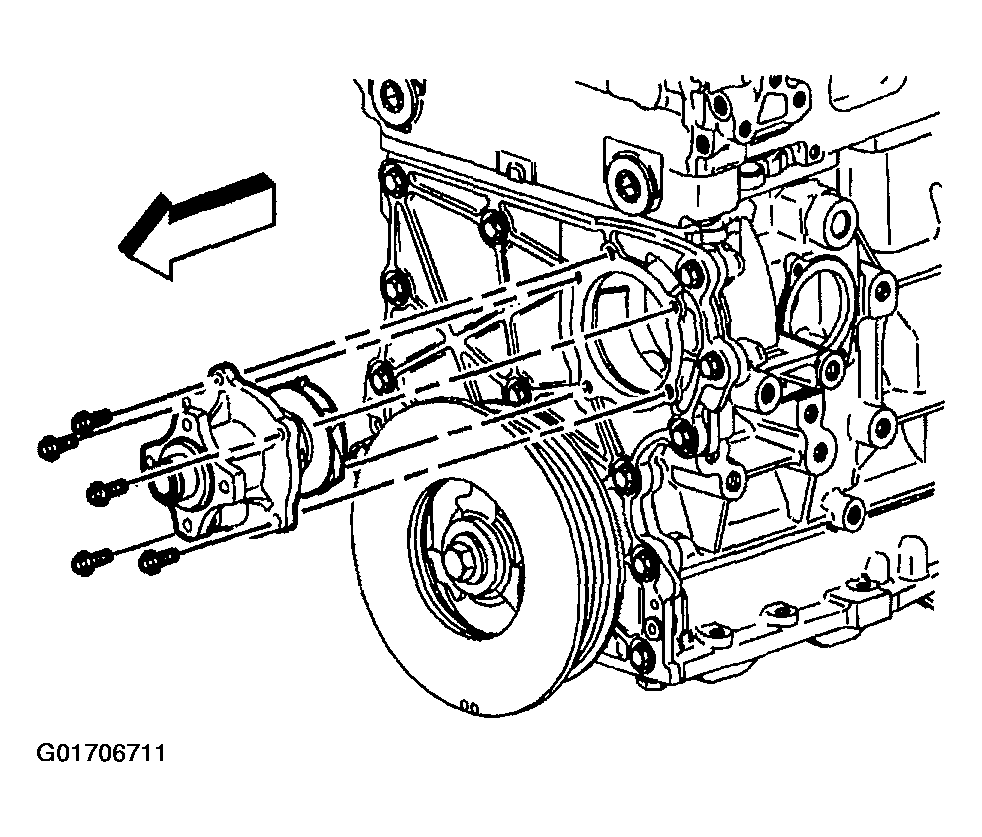

Fig 1: Installing Water Pump
Courtesy of GENERAL MOTORS CORP.
Install the water pump pulley.
Install the water pump pulley bolts.
Install J 41240 to hold pulley.

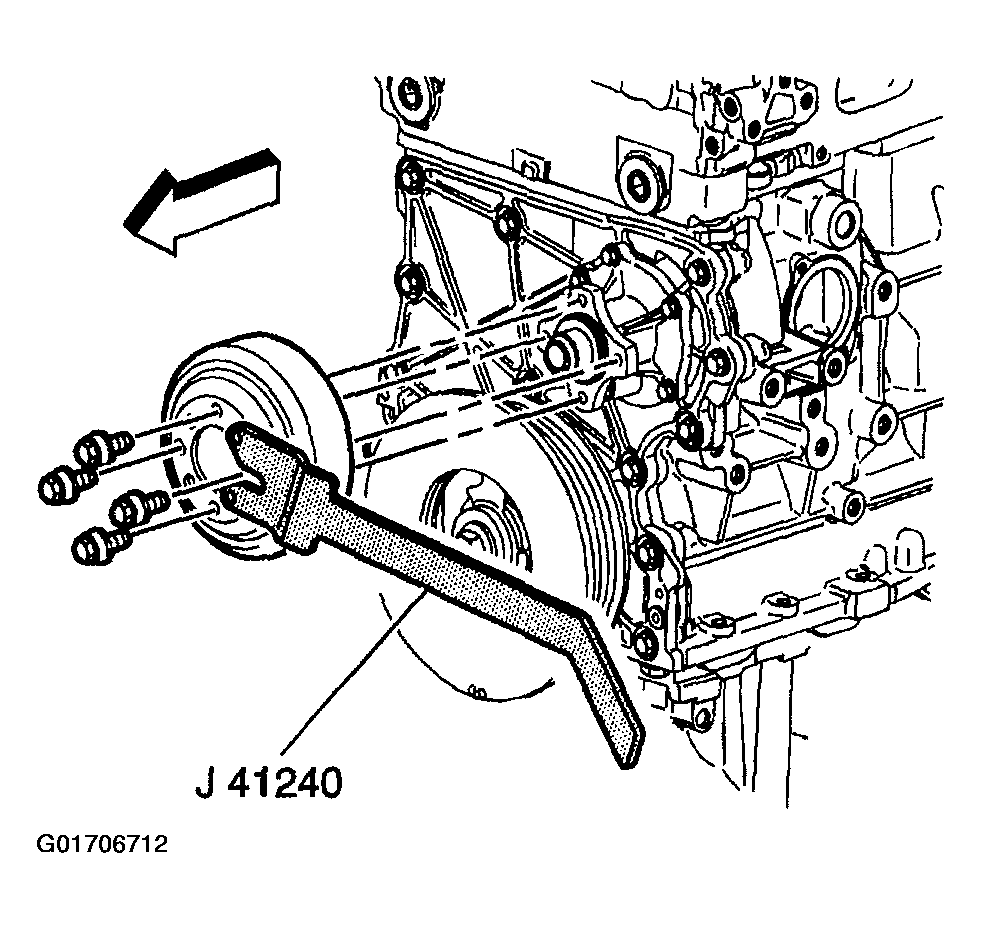

Fig 2: Installing J 41240 To Hold Pulley

Courtesy of GENERAL MOTORS CORP.

Tighten the water pump pulley bolts.
Tighten

Tighten the water pump pulley bolts to 25 N.m (18 lb ft).
Remove J 41240.
