Timing Chain Tensioner Removal

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Remove the cylinder head access hole plugs.

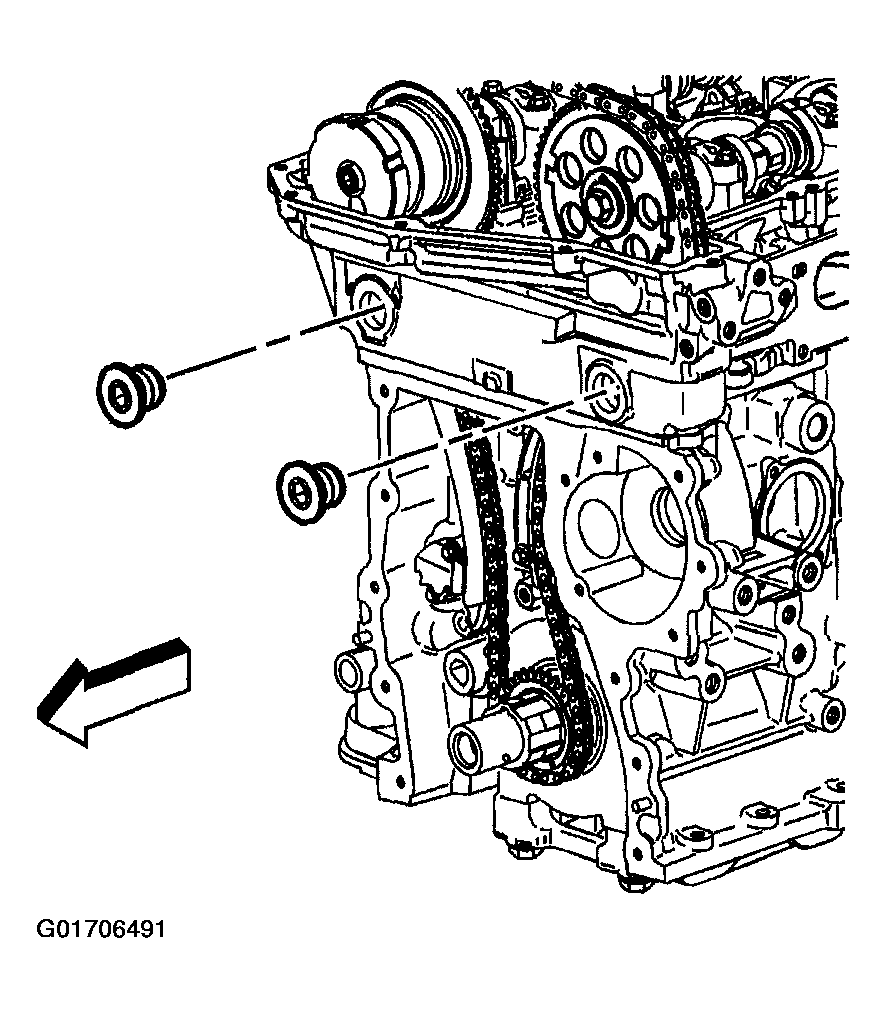

Fig 1: Removing Cylinder Head Access Hole Plugs

Courtesy of GENERAL MOTORS CORP.

Remove the timing chain tensioner shoe bolt.
Remove the timing chain tensioner shoe.

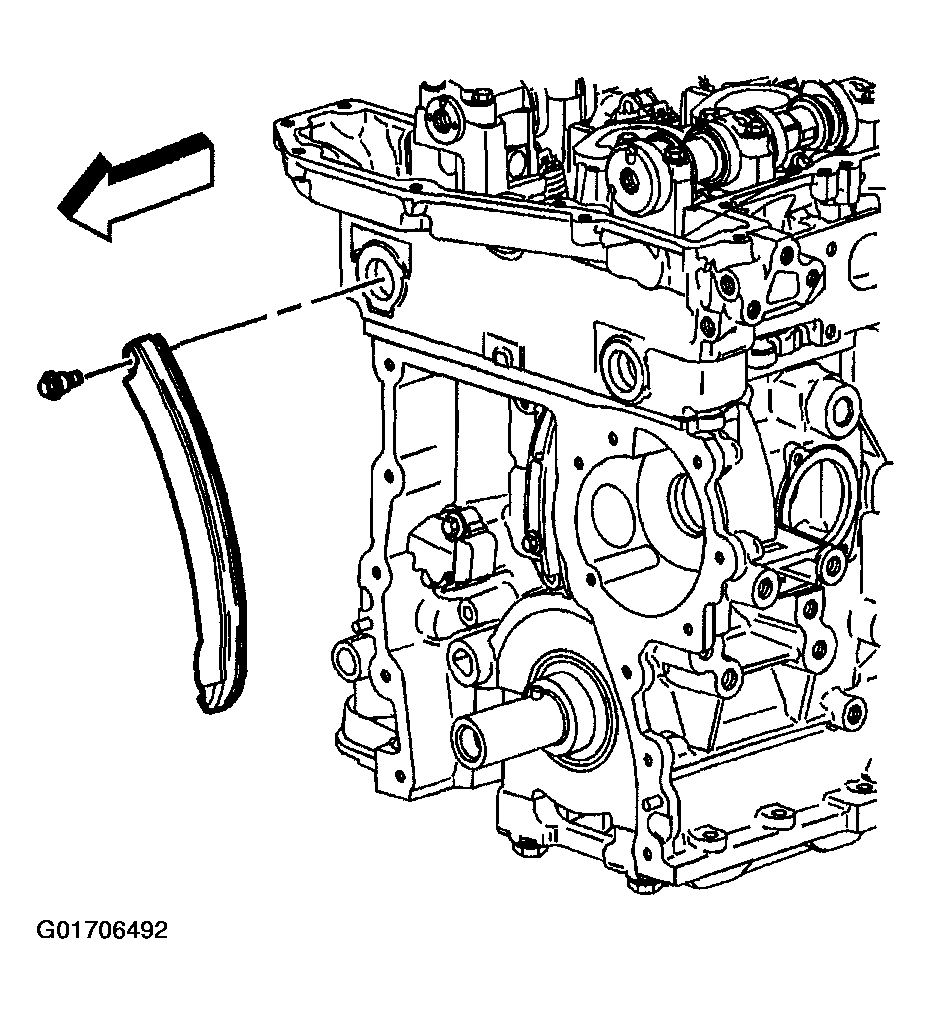

Fig 2: Removing Timing Chain Tensioner Shoe

Courtesy of GENERAL MOTORS CORP.

Remove the timing chain tensioner guide bolts.
Remove the timing chain tensioner guide.

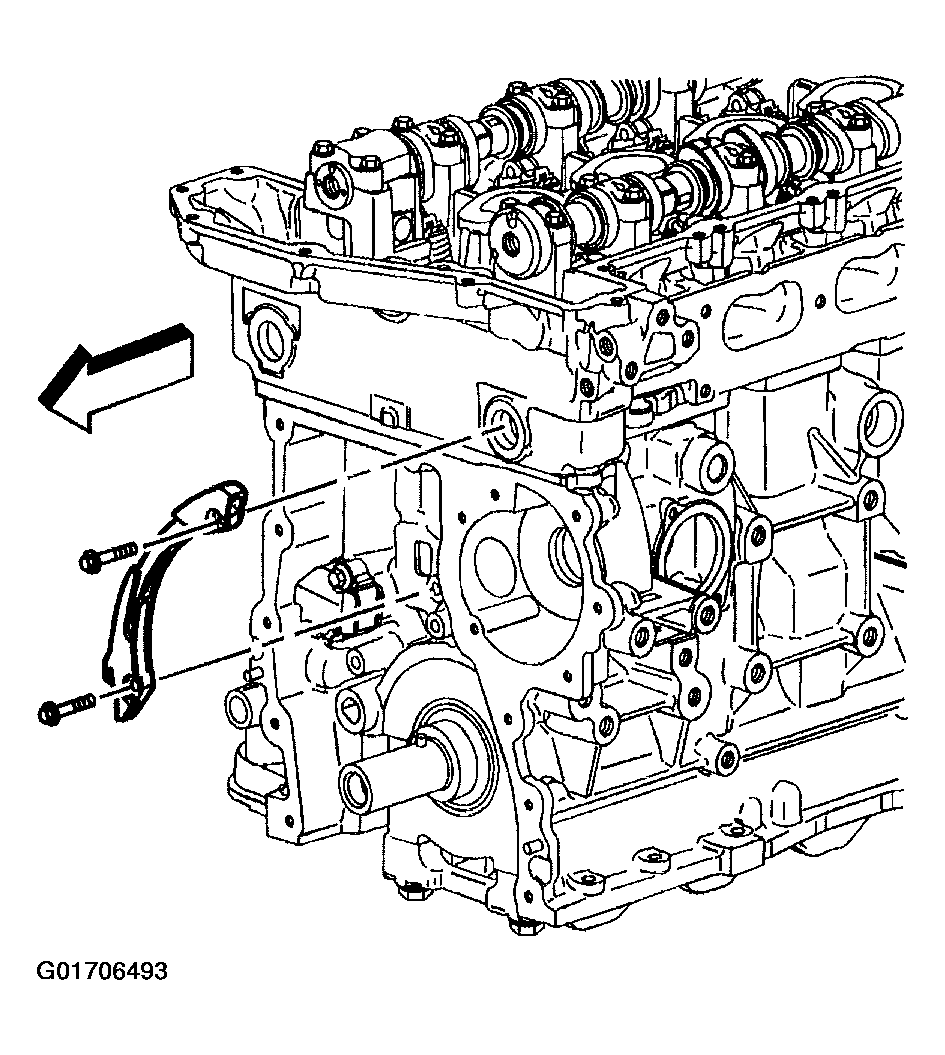

Fig 3: Removing Timing Chain Tensioner Guide

Courtesy of GENERAL MOTORS CORP.

Remove the timing chain tensioner bolts.
Remove the timing chain tensioner.

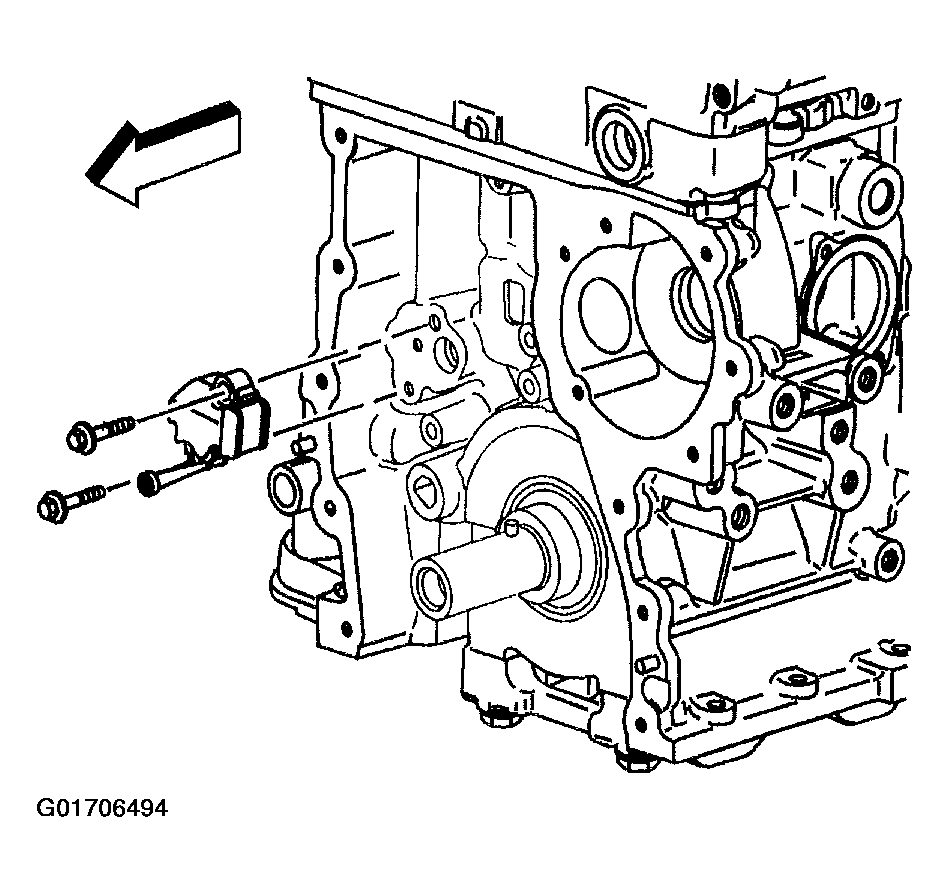

Fig 4: Removing Timing Chain Tensioner

Courtesy of GENERAL MOTORS CORP.
