Timing Chain Tensioner Installation

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Install the timing chain tensioner.
Install the timing chain tensioner bolts.
NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

Tighten

Tighten the timing chain tensioner bolts to 25 N.m (18 lb ft).

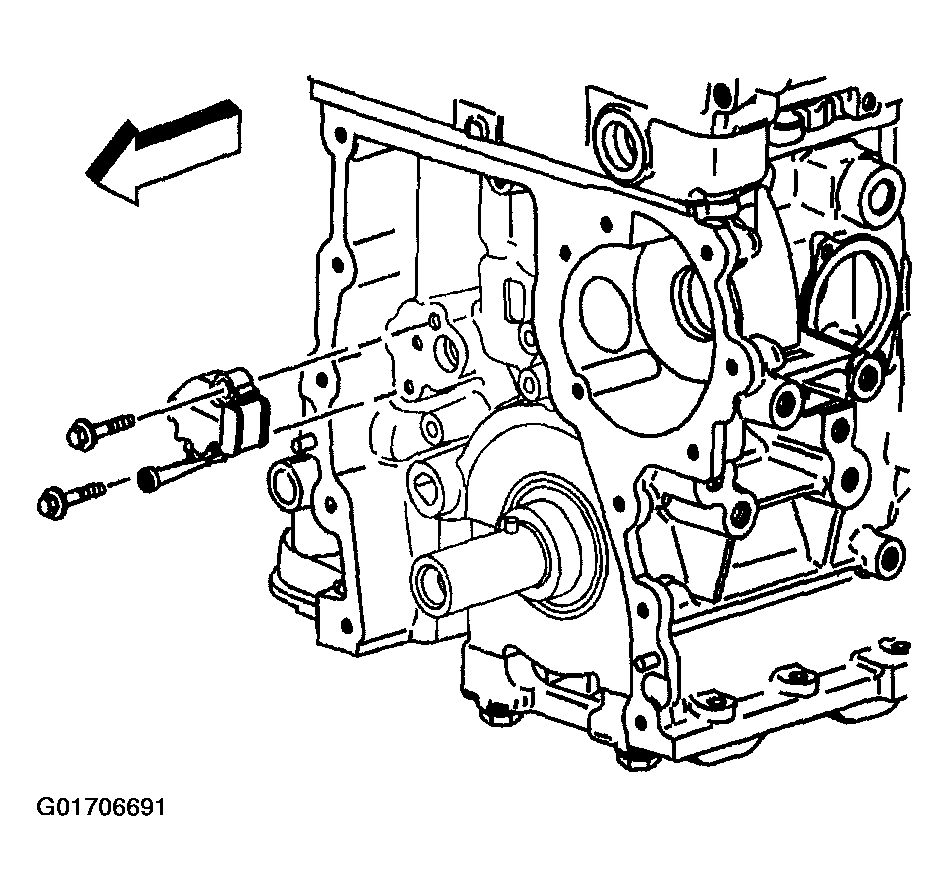

Fig 1: Installing Timing Chain Tensioner

Courtesy of GENERAL MOTORS CORP.

Install the timing chain tensioner guide.
Install the timing chain tensioner guide bolts.
Tighten

Tighten the timing chain tensioner guide bolts to 14 N.m (124 lb in).

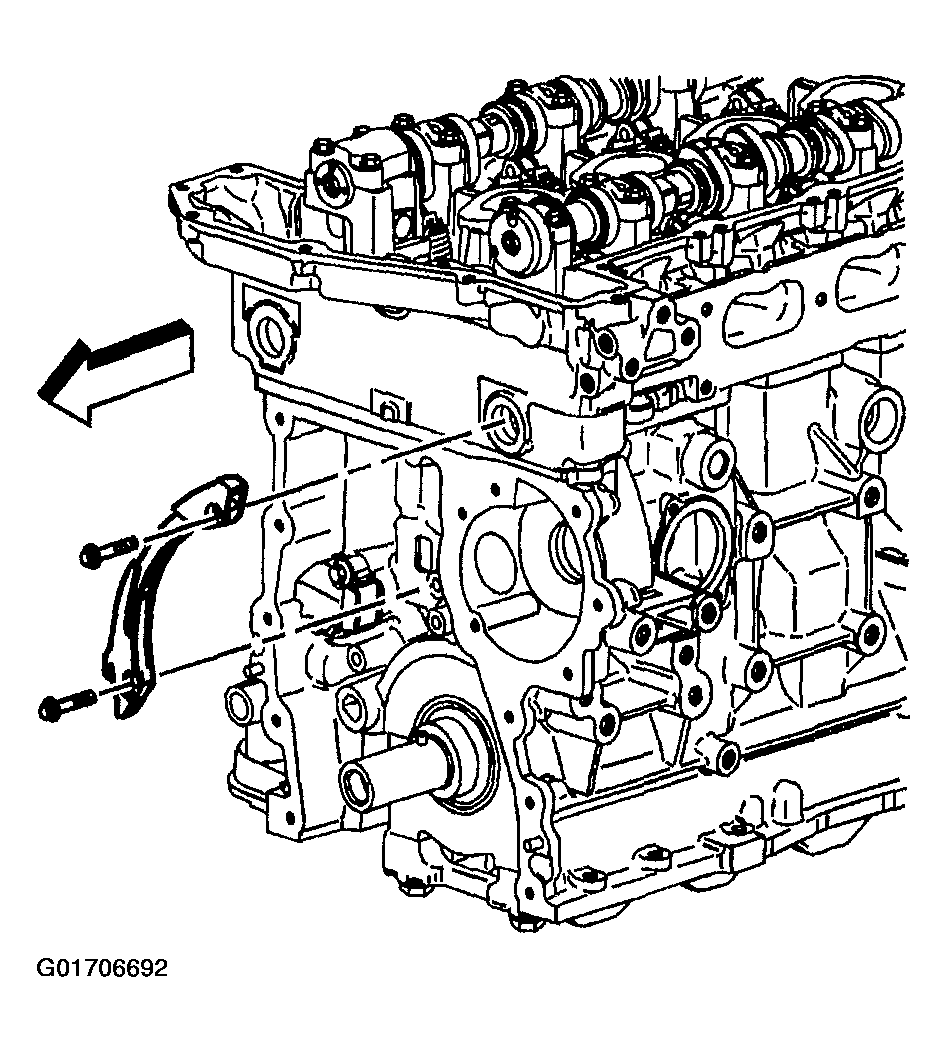

Fig 2: Installing Timing Chain Tensioner Guide

Courtesy of GENERAL MOTORS CORP.

Install the timing chain tensioner shoe.
Install the timing chain tensioner shoe bolt.
Tighten

Tighten the timing chain tension shoe bolt to 25 N.m (18 lb ft).

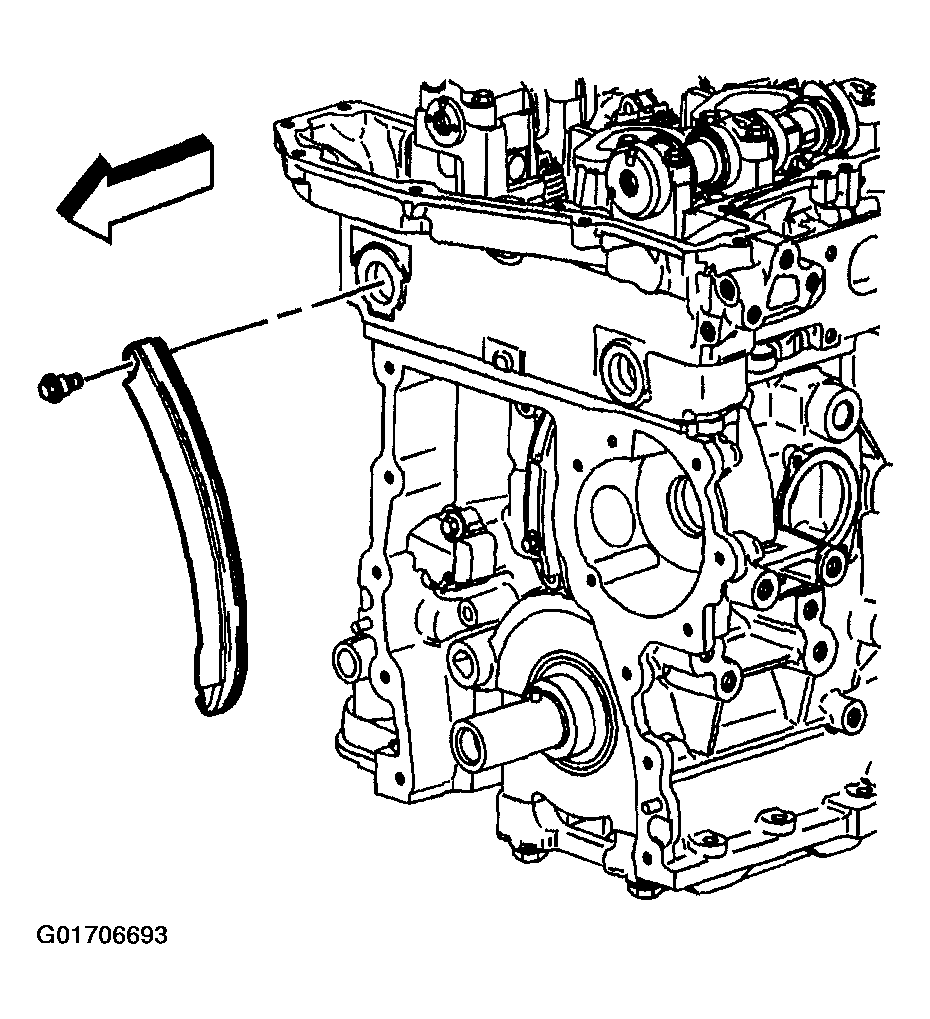

Fig 3: Installing Timing Chain Tensioner Shoe

Courtesy of GENERAL MOTORS CORP.

7. Install the cylinder head access hole plugs.
Tighten

Tighten the cylinder head access hole plugs to 5 N.m (44 lb in).

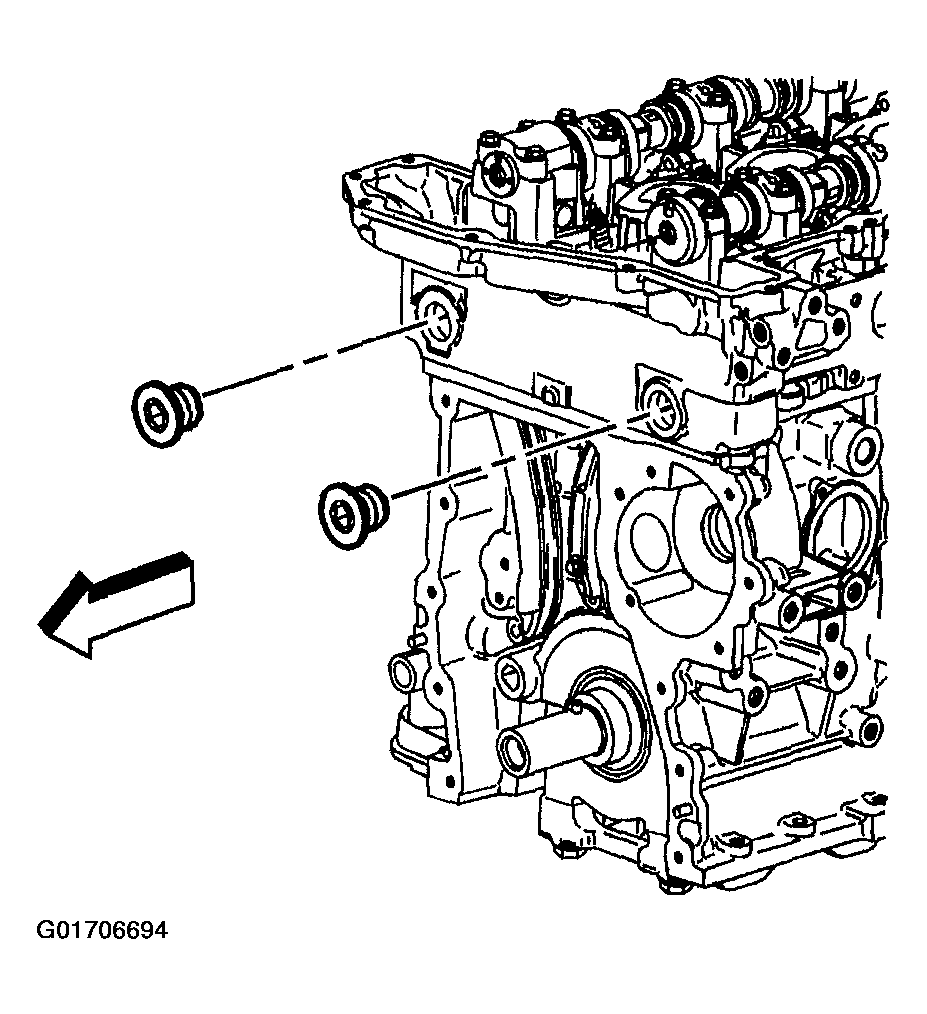

Fig 4: Installing Cylinder Head Access Hole Plugs

Courtesy of GENERAL MOTORS CORP.
