Power Steering Pump Bracket Removal

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the power steering pump bracket bolts.
  2. Remove the power steering pump bracket.

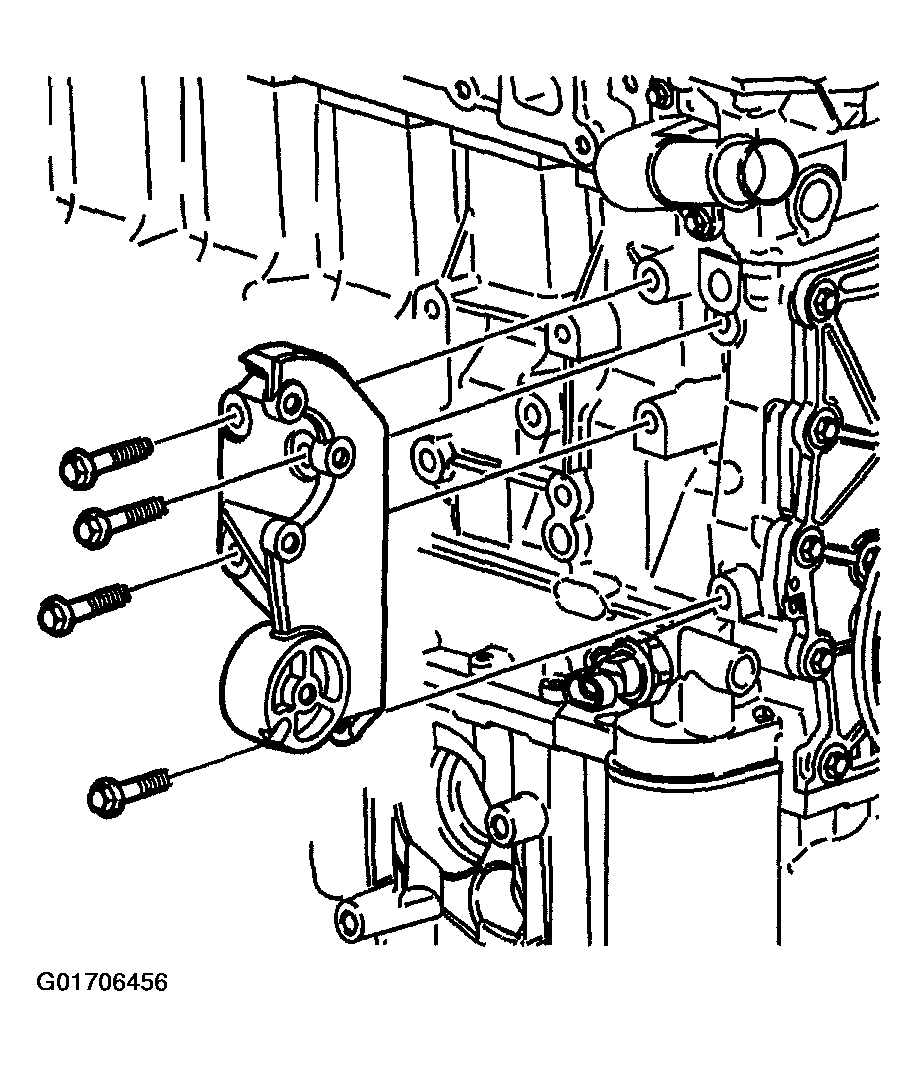

    3. Fig 1: Removing Power Steering Pump Bracket
    G01706456Courtesy of GENERAL MOTORS CORP.
