Piston, Connecting Rod, and Bearing Installation

Tools Required

• J 36660-A  Torque Angle Meter
• J 8037  Piston Ring Compressor
• J 41556  Connecting Rod Guide

1. Rotate the crankshaft so the connecting rod journal for the piston being installed is at Bottom Dead Center.
2. Lubricate the cylinder wall with engine oil.
3. Lubricate the piston and rings with engine oil.
4. Stagger the ring end gaps 90 degrees apart.
5. Install J 8037 onto the piston and ring assembly to compress the rings.
6. Install the connecting rod bearings into the connecting rods and caps (1).

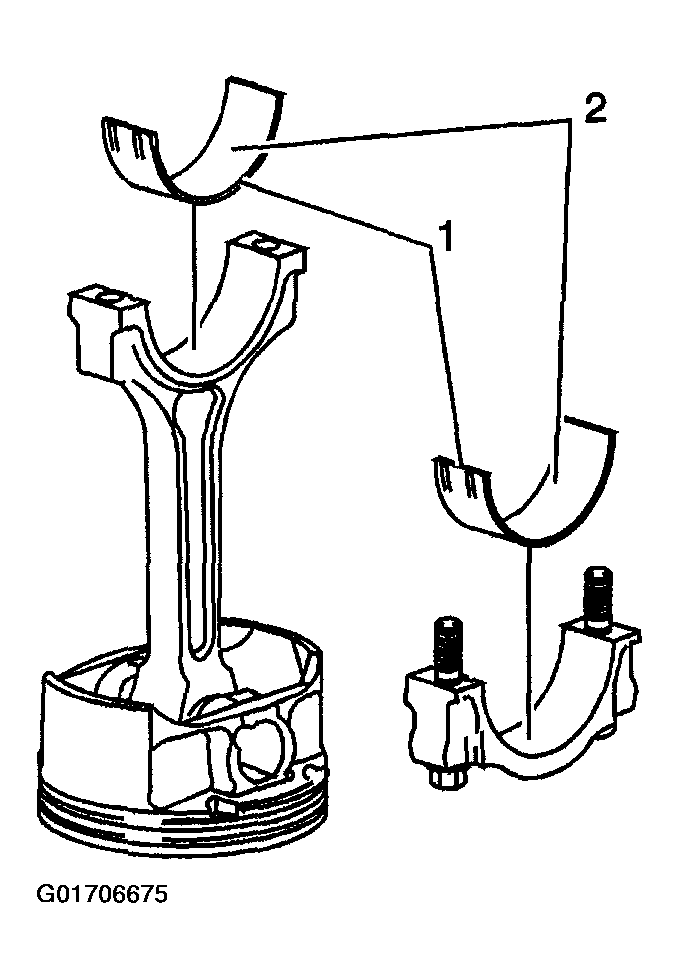

Fig 1: Installing Connecting Rod Bearings Into Connecting Rods And Caps
Courtesy of GENERAL MOTORS CORP.
7. Lubricate the connecting rod bearing contact surfaces with engine oil.
8. Install the J 41556 into the connecting rod.

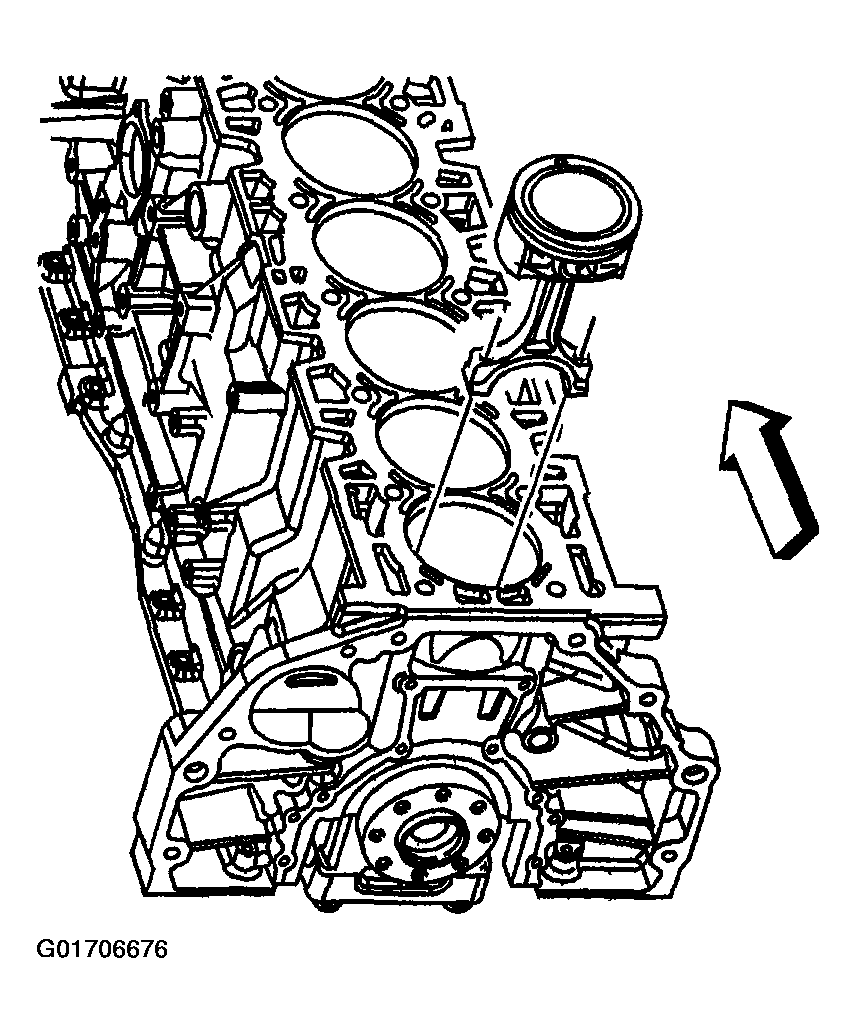

   Fig 2: Installing J 41556 Into Connecting Rod

   Courtesy of GENERAL MOTORS CORP.

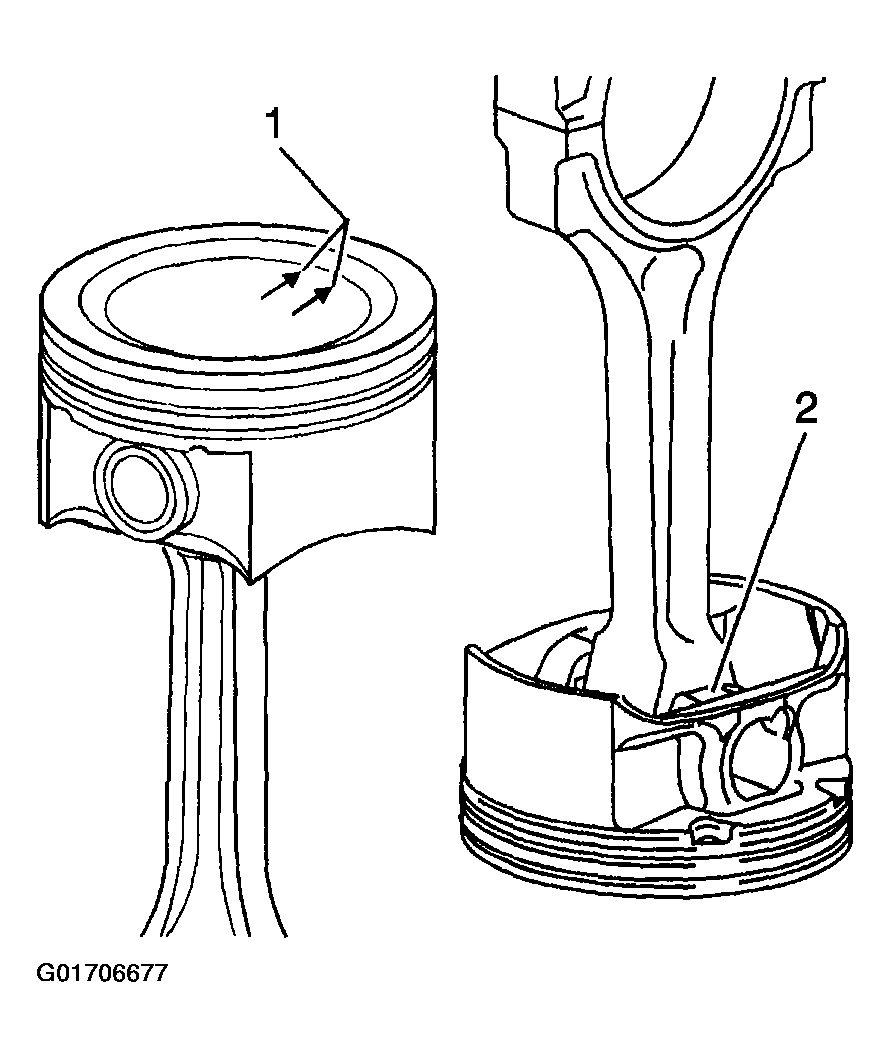

   IMPORTANT: The piston and cylinder bore have been measured and the bore has been sized for the proper clearance. Install the piston and connecting rod assembly into the proper cylinder bore. The piston alignment mark MUST face the front of the engine block (1) or the flat casting boss (2).
9. Install the connecting rod and piston into the proper cylinder bore.
   Fig 3: Installing Connecting Rod And Piston Into Proper Cylinder Bore

   Courtesy of GENERAL MOTORS CORP.
10. Hold the J 8037 firmly against the engine block. Using a wooden hammer handle, lightly tap the top of the piston until all of the piston rings enter the cylinder bore.

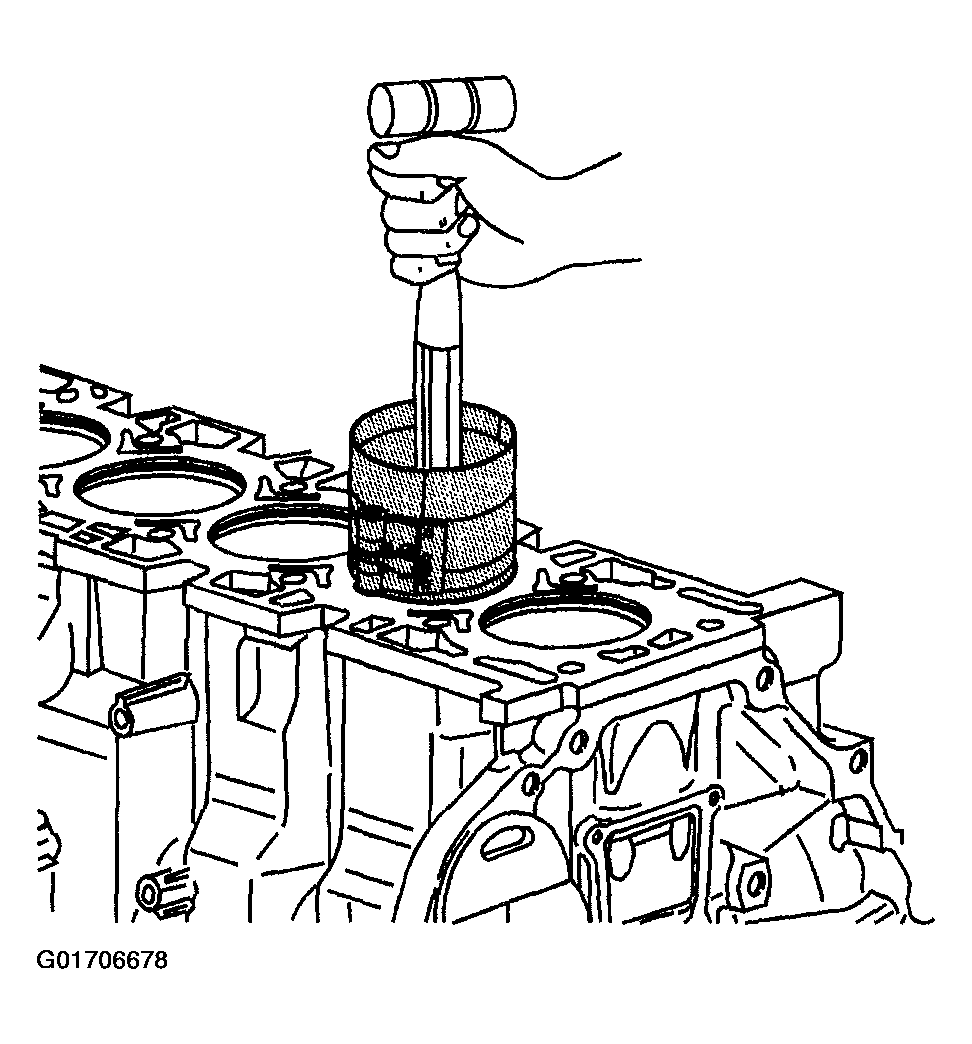

Fig 4: Holding J 8037 Firmly Against Engine Block
Courtesy of GENERAL MOTORS CORP.
11. Guide the connecting rod end onto the crankshaft journal.

    Use J 41556 to pull the connecting rod into place.

12. Install the connecting rod bearing, cap, and bolts.

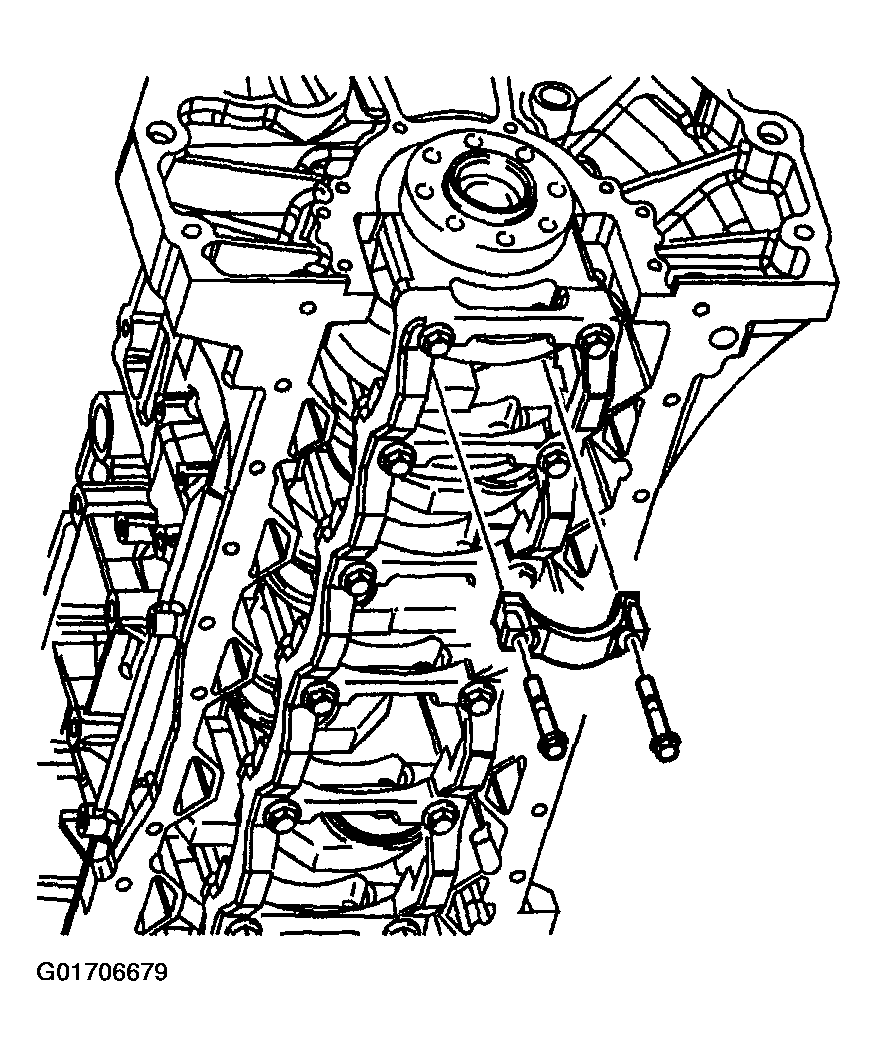

    Fig 5: Installing Connecting Rod Bearing, Cap, And Bolts

    Courtesy of GENERAL MOTORS CORP.

    Tighten

    1. 12.1. Tighten the connecting rod bearing cap bolts on the first pass to 25 N.m (18 lb ft).
    2. 12.2. Use J 36660-A to tighten the connecting rod bearing cap bolts on the second pass an additional 110 degrees.
13. With the pistons and connecting rods installed, use a soft faced mallet and lightly tap each connecting rod assembly parallel to the crankshaft.
14. Measure the connecting rod side clearance using a feeler gauge. Connecting rod side clearance should be between 0.05-0.35 mm (0.0019-0.0137 in).

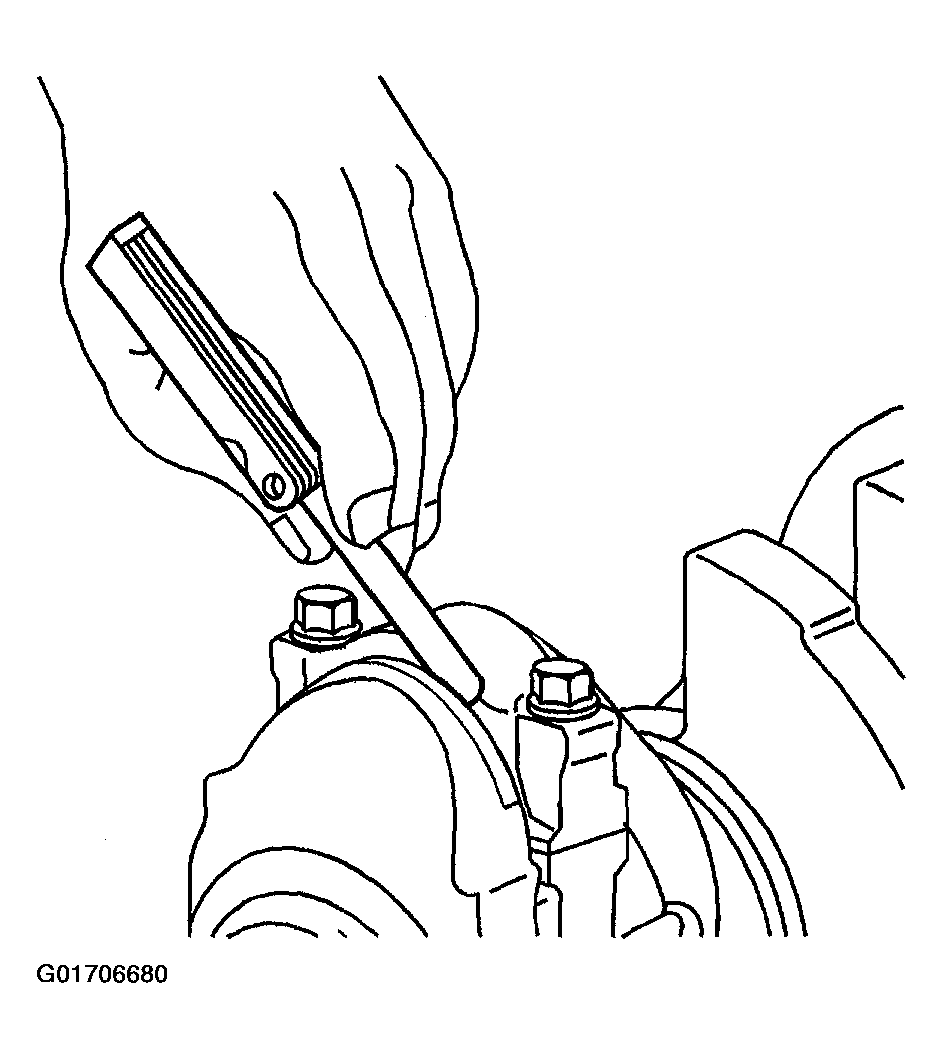

Fig 6: Measuring Connecting Rod Side Clearance
Courtesy of GENERAL MOTORS CORP.
