Oil Pump Pipe And Screen Assembly Removal

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil pump pipe bolts.
  2. Remove the oil pump pipe.

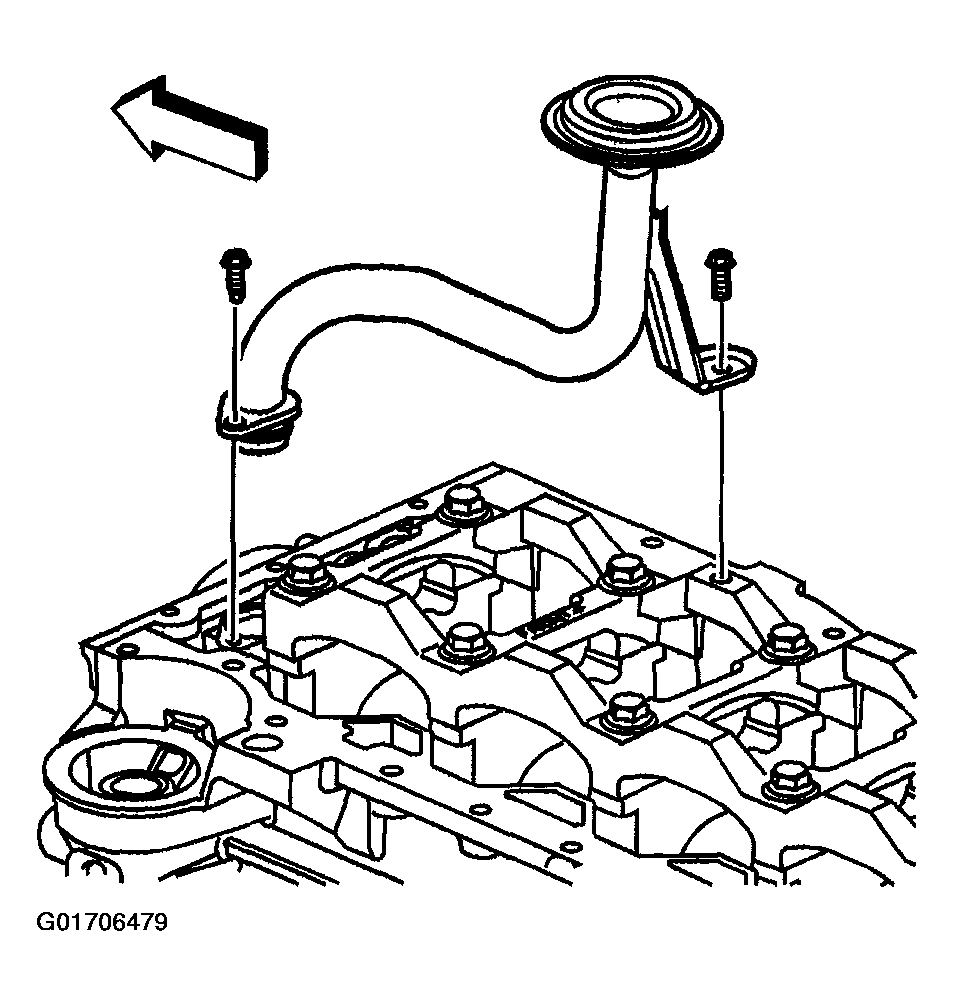

    3. Fig 1: Removing Oil Pump Pipe And Screen Assembly
    G01706479Courtesy of GENERAL MOTORS CORP.
