Oil Pan Removal

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Remove the oil level sensor, located in the oil pan, before the oil pan is removed. The sensor may be damaged if the oil pan is removed first.
  1. Remove the oil level sensor.
  2. Remove the oil pan bolts and nuts.
  3. Install two of the oil pan bolts into the threaded holes (jack bolts) to break the seal of oil pan (1).

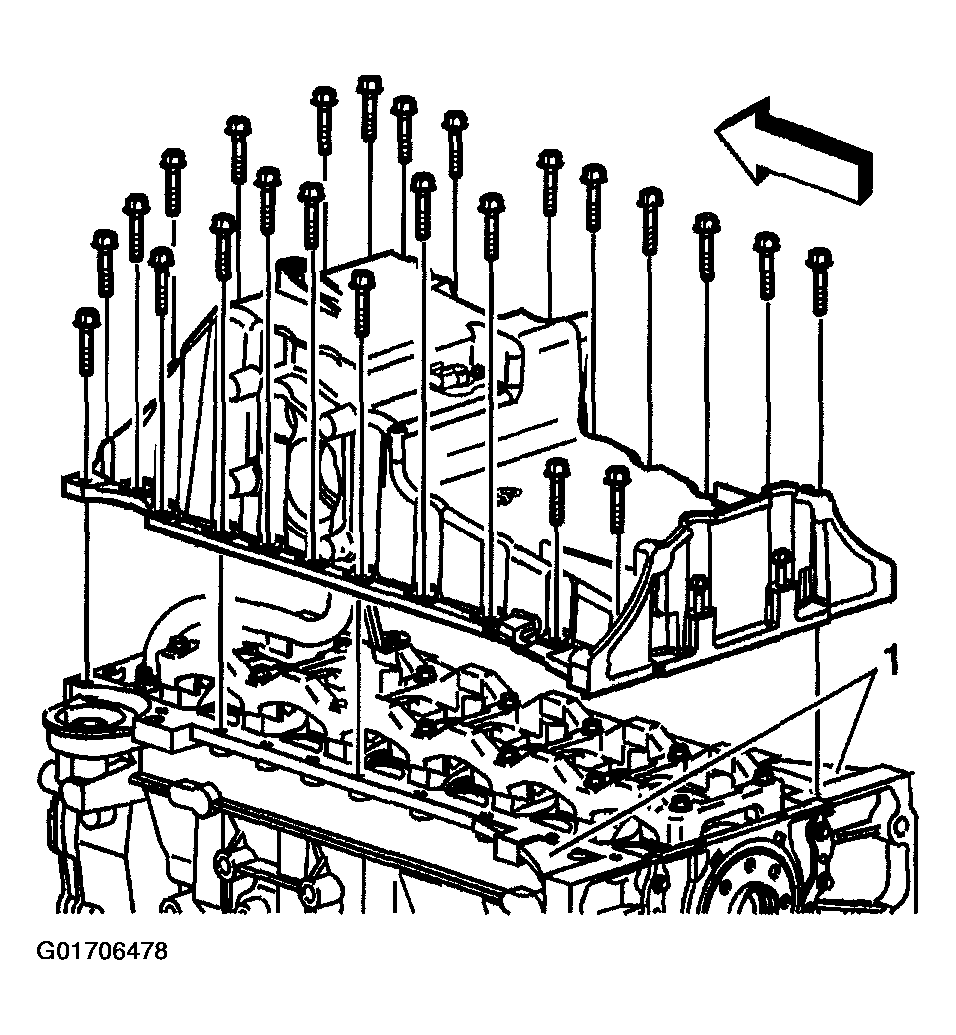

    4. Fig 1: Removing Oil Pan
    G01706478Courtesy of GENERAL MOTORS CORP.
  4. Remove the oil pan.
