Oil Level Indicator And Tube Removal

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil level indicator.
  2. Remove the oil level indicator tube stud.
  3. Remove the oil level indicator tube.

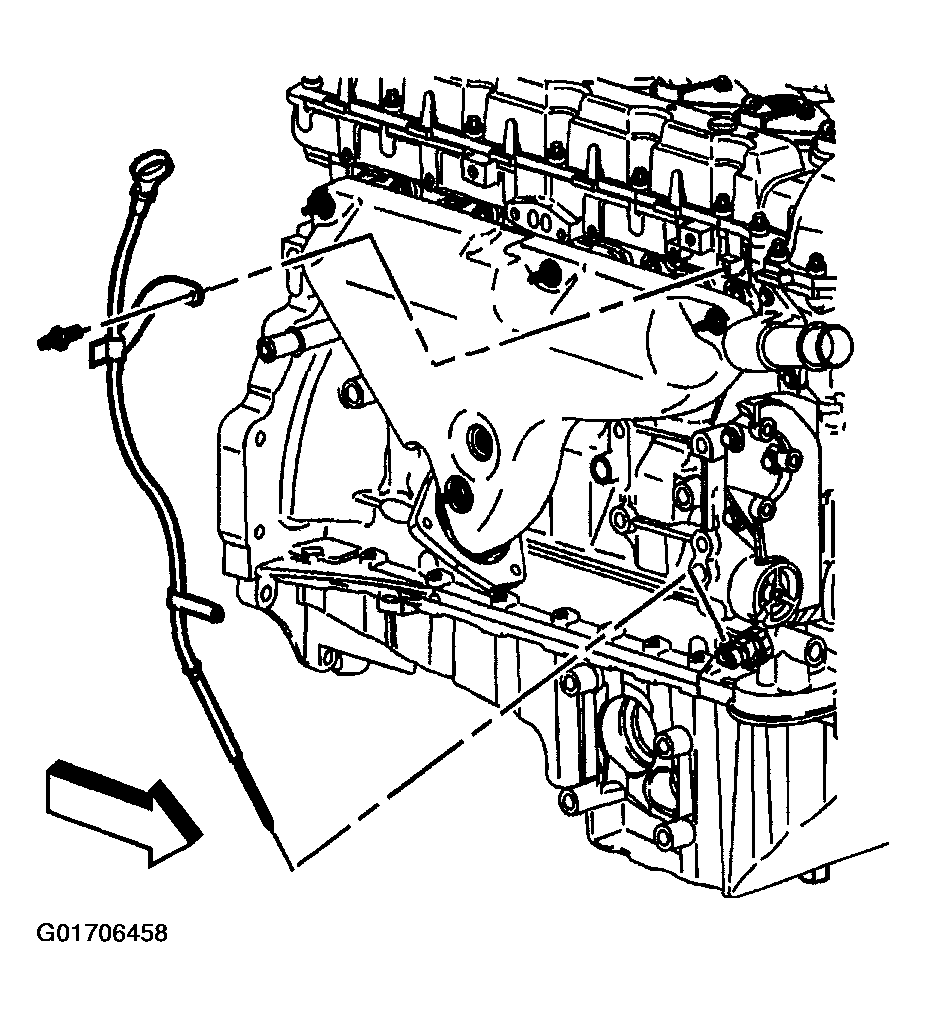

    4. Fig 1: Removing Oil Level Indicator And Tube
    G01706458Courtesy of GENERAL MOTORS CORP.
