Intake Manifold Removal

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Remove the throttle control module bolts.
Remove the throttle control module.

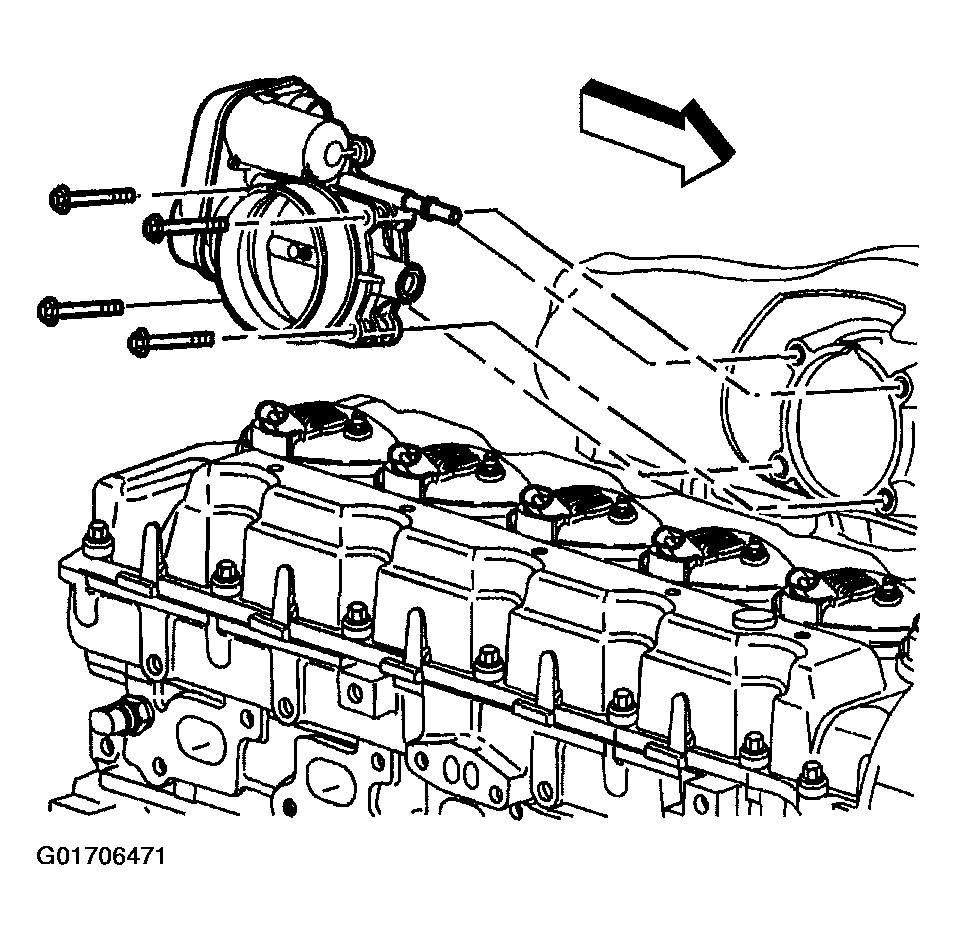

Fig 1: Removing Throttle Control Module

Courtesy of GENERAL MOTORS CORP.

Remove the throttle control module gasket.
Remove the crankcase ventilation hose.

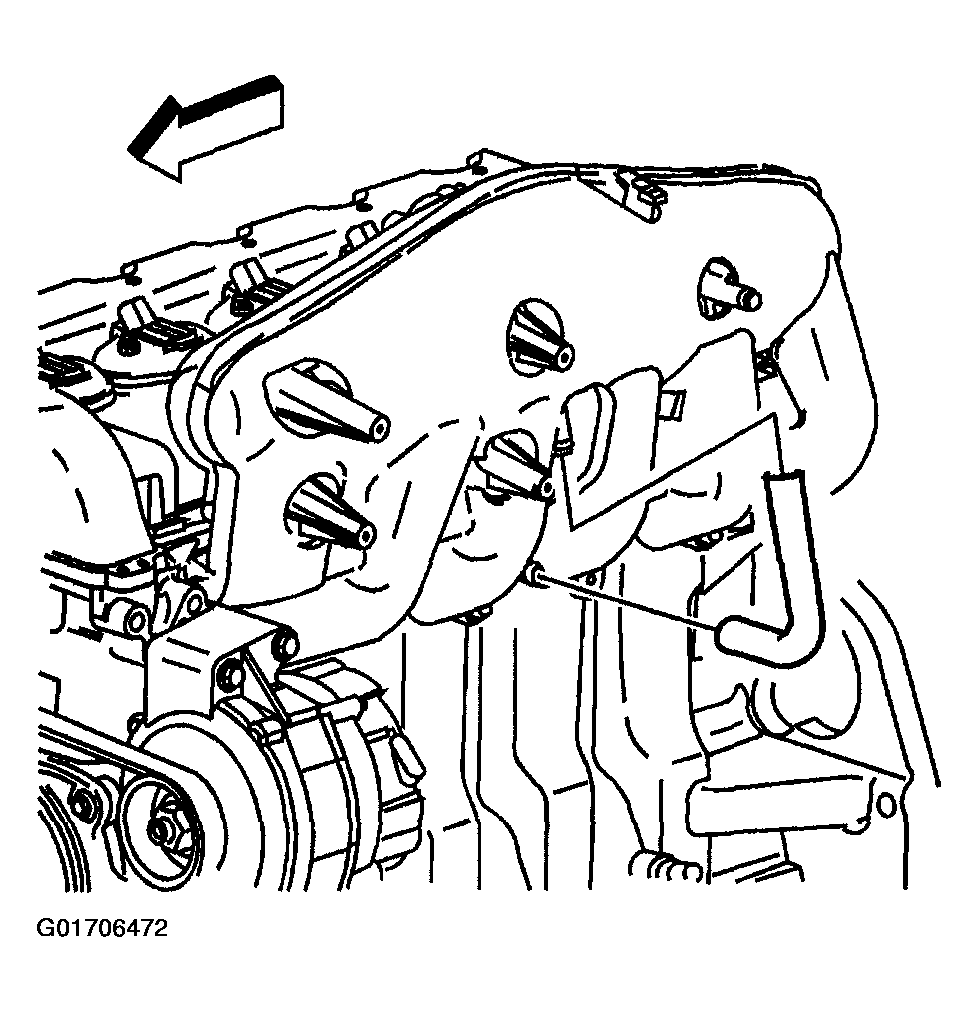

Fig 2: Removing Crankcase Ventilation Hose

Courtesy of GENERAL MOTORS CORP.

Remove the intake manifold and bolts.

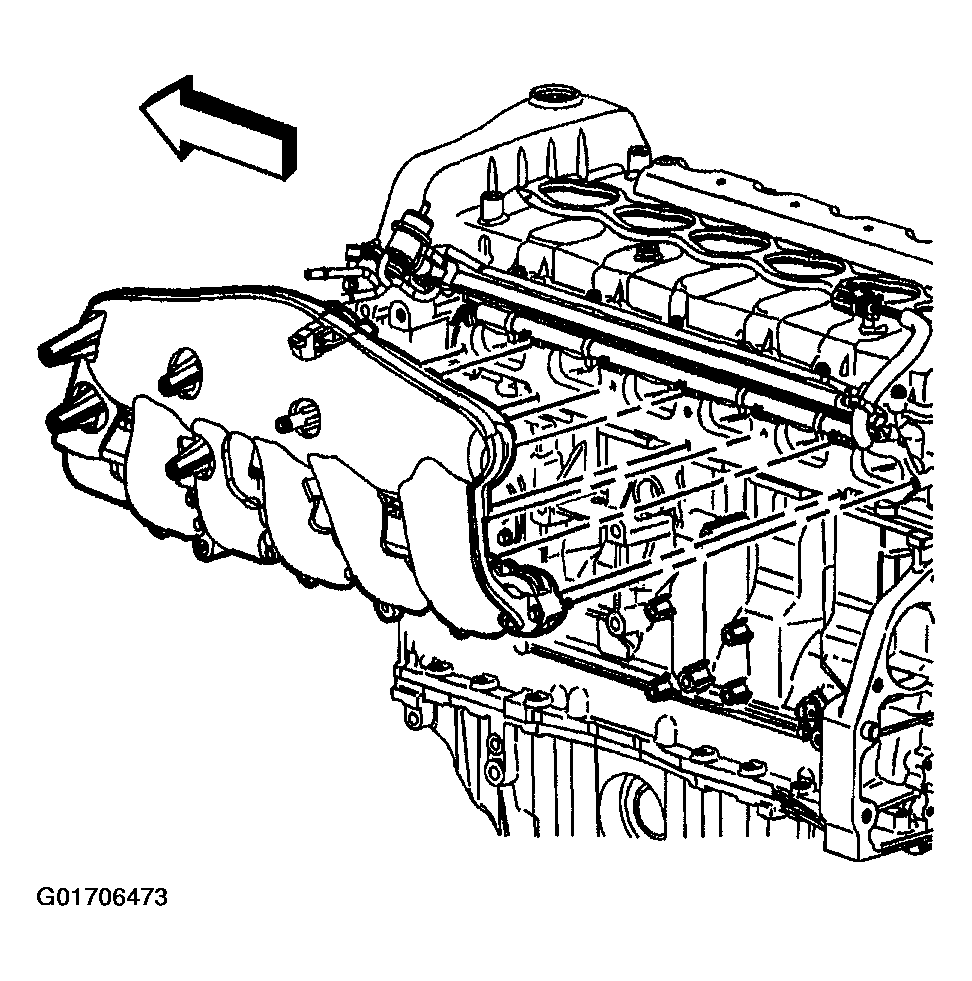

Fig 3: Removing Intake Manifold

Courtesy of GENERAL MOTORS CORP.
