Fuel Rail And Injectors Removal

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the fuel injector rail bolts.
  2. Remove the fuel injector rail.

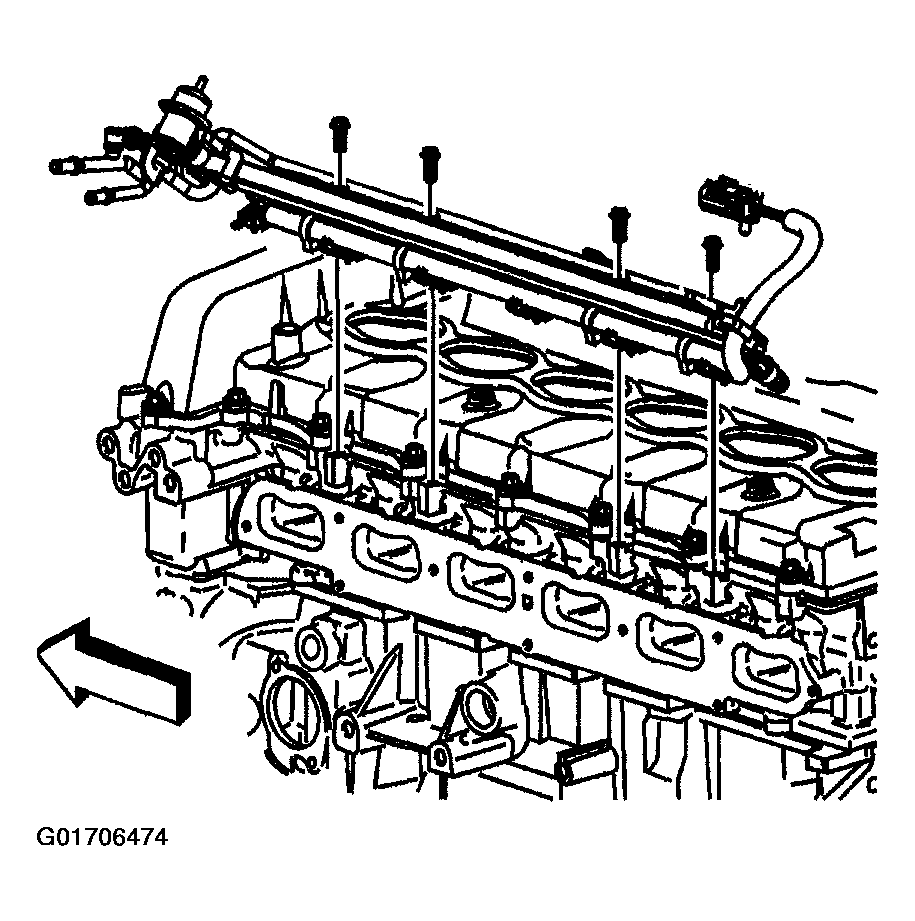

    3. Fig 1: Removing Fuel Rail And Injectors
    G01706474Courtesy of GENERAL MOTORS CORP.
