Exhaust Manifold Removal

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the exhaust manifold heat shield nuts.
  2. Remove the exhaust manifold heat shield.

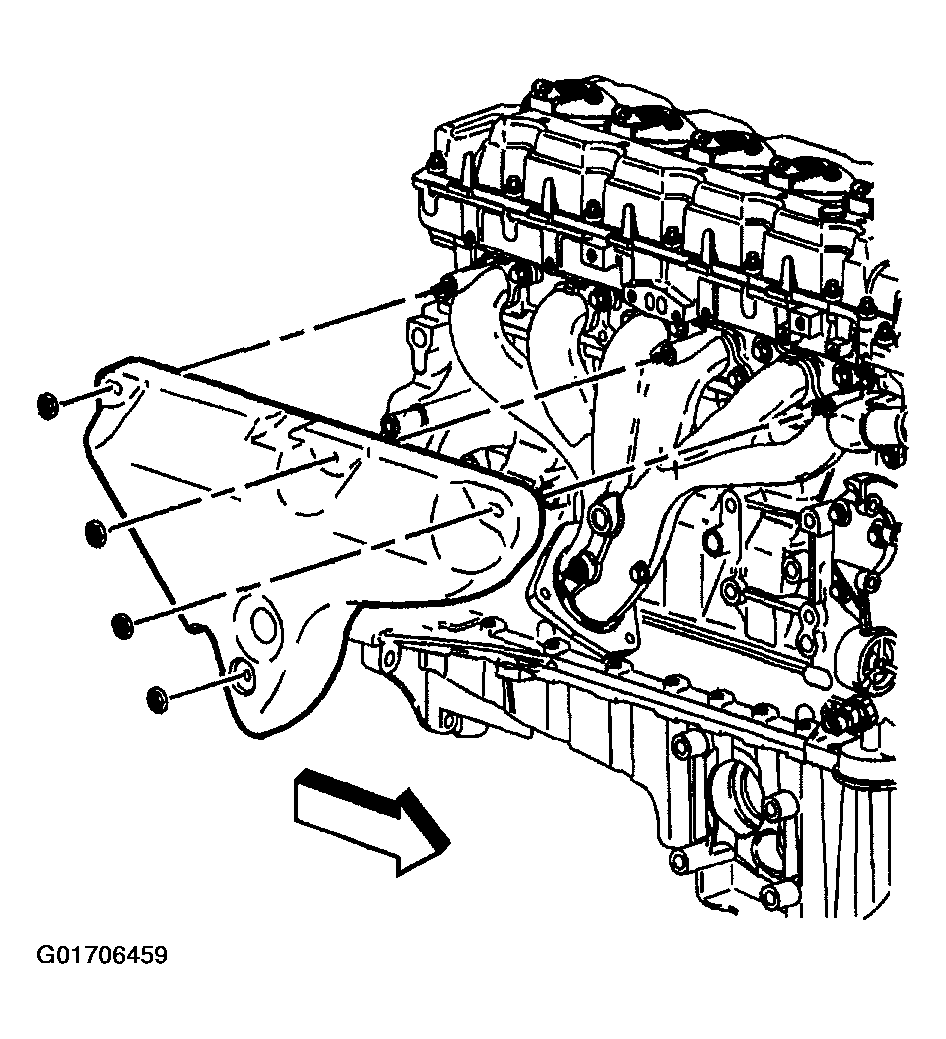

    3. Fig 1: Removing Exhaust Manifold Heat Shield
    G01706459Courtesy of GENERAL MOTORS CORP.
  3. Remove the exhaust manifold studs. (if needed)

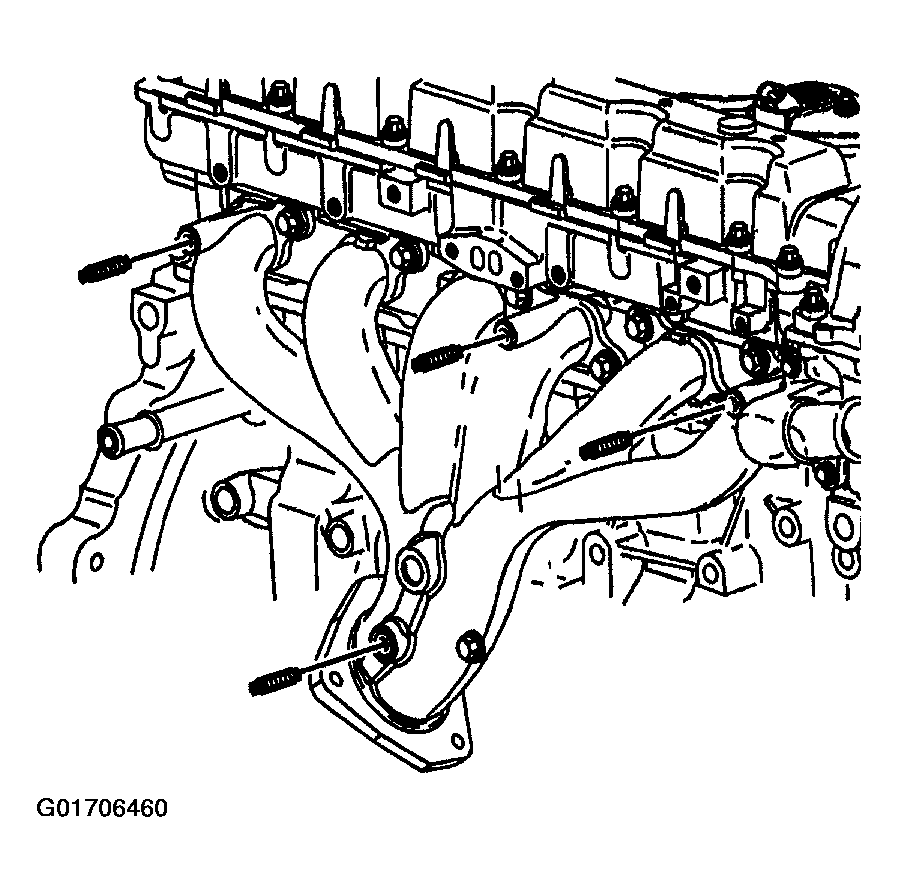

    4. Fig 2: Removing Exhaust Manifold Studs
    G01706460Courtesy of GENERAL MOTORS CORP.
  4. Remove the exhaust manifold bolts.
  5. Remove the exhaust manifold.

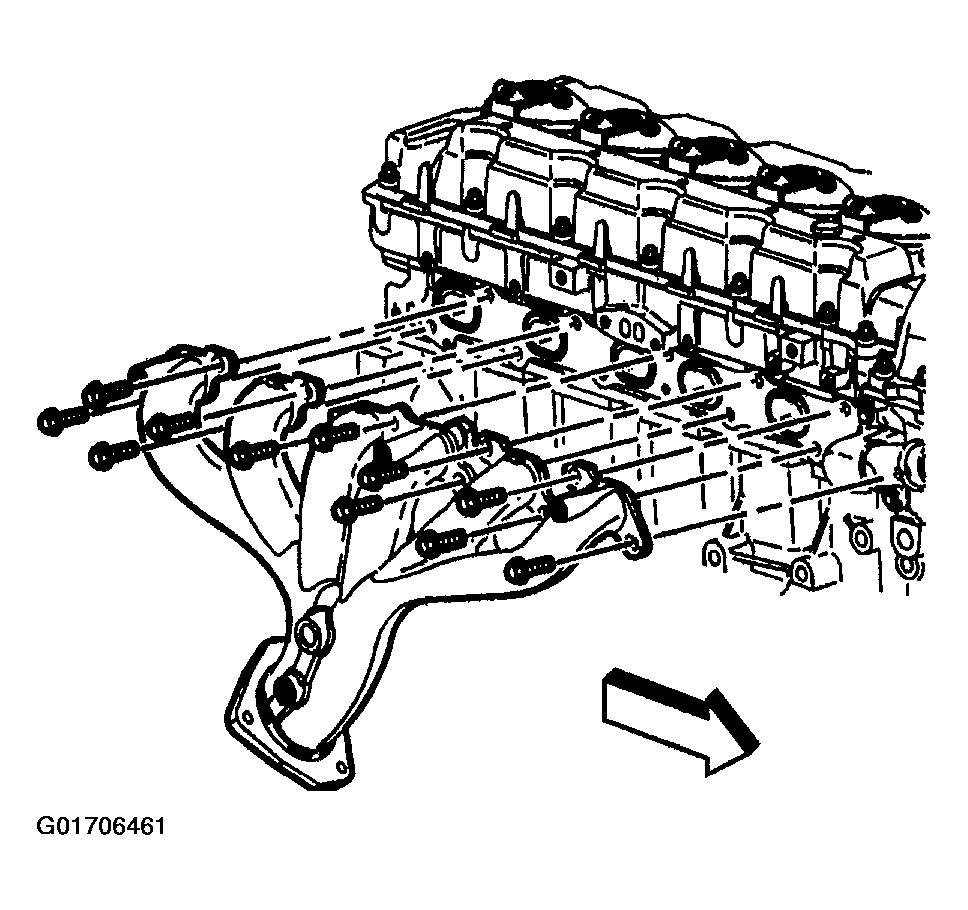

    6. Fig 3: Removing Exhaust Manifold
    G01706461Courtesy of GENERAL MOTORS CORP.
  6. Remove the exhaust manifold gasket.

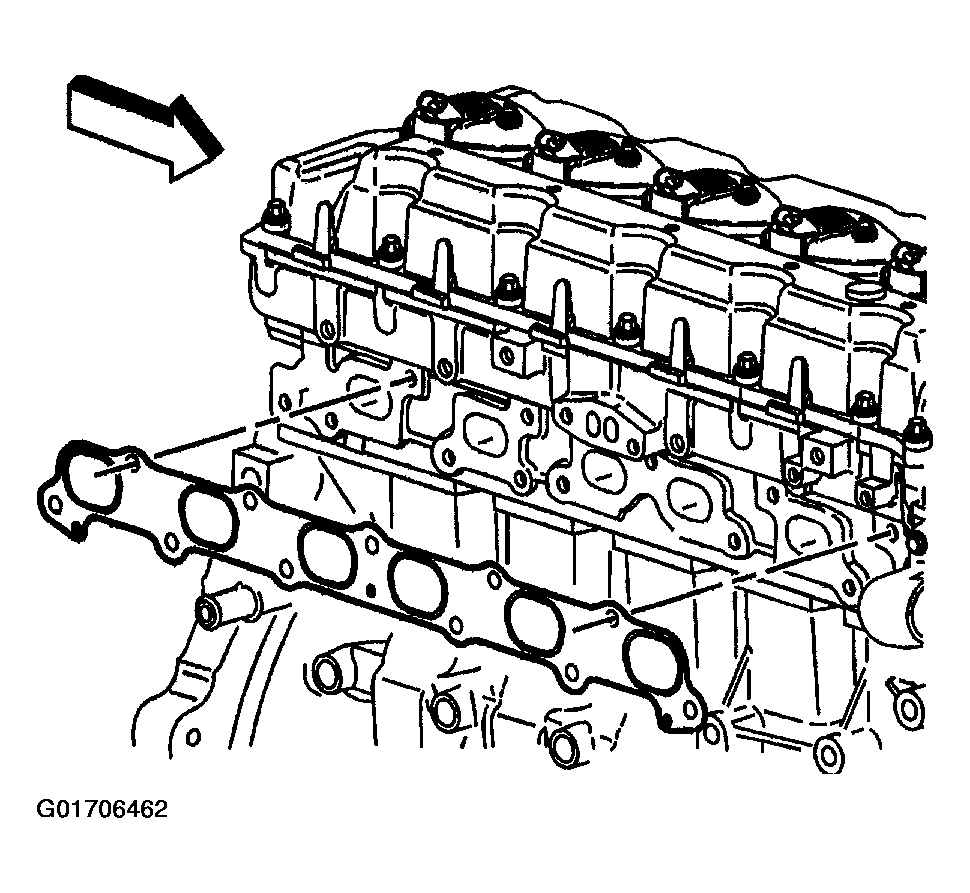

    7. Fig 4: Removing Exhaust Manifold Gasket
    G01706462Courtesy of GENERAL MOTORS CORP.
