Drive Belt Tensioner Removal

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the drive belt tensioner bolt.
  2. Remove the drive belt tensioner.

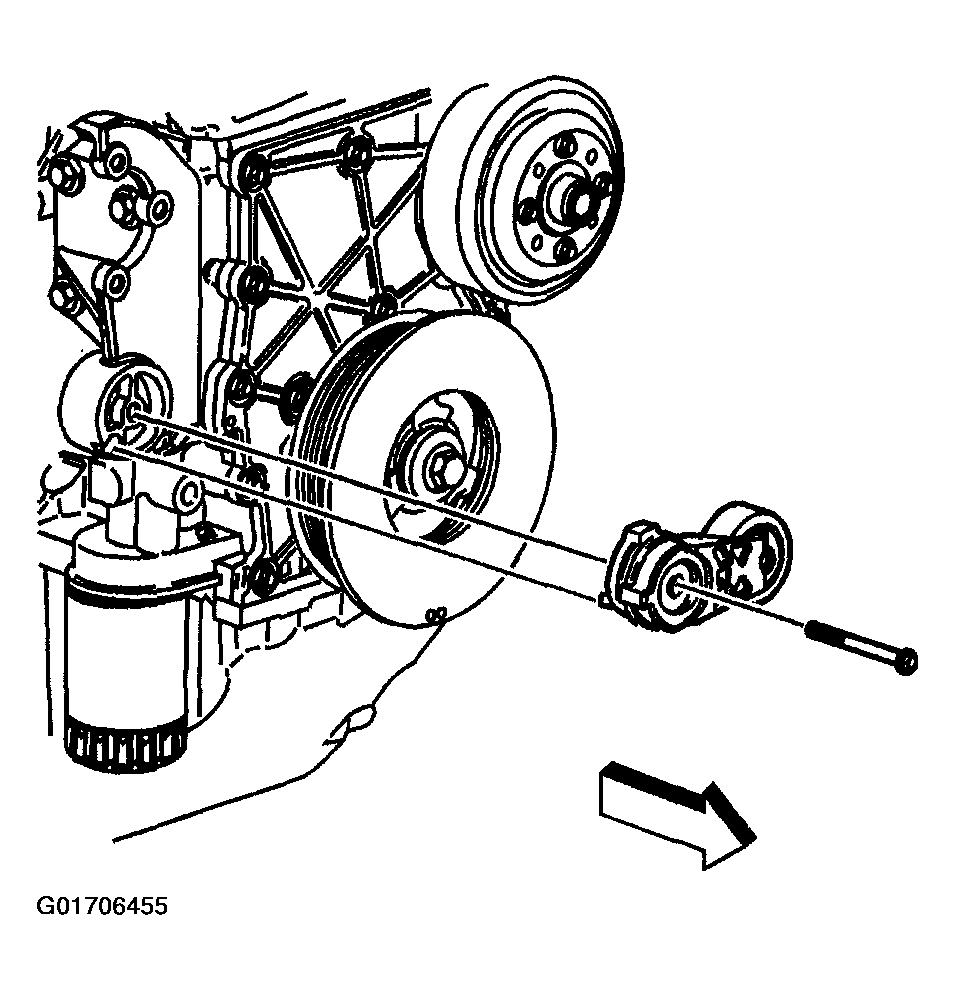

    3. Fig 1: Removing Drive Belt Tensioner
    G01706455Courtesy of GENERAL MOTORS CORP.
