Drive Belt Idler Pulley Removal

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the drive belt idler pulley bolts.
  2. Remove the drive belt idler pulley.

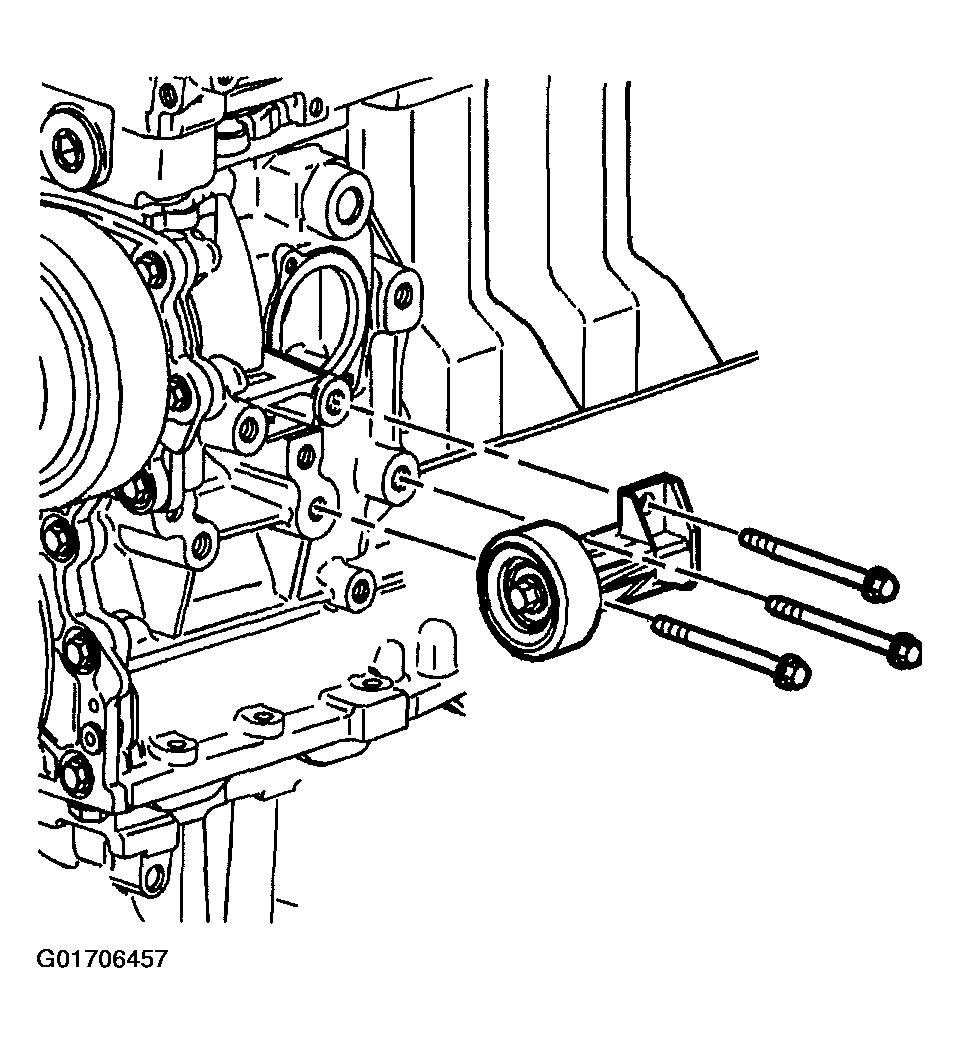

    3. Fig 1: Removing Drive Belt Idler Pulley
    G01706457Courtesy of GENERAL MOTORS CORP.
