Crankshaft Rear Oil Seal Installation

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required  : J 44227  Rear Seal Installer

  1. Use the plastic installation sleeve supplied with the new seal when installing a new seal.

    Use J 44227 to install the crankshaft rear oil seal.

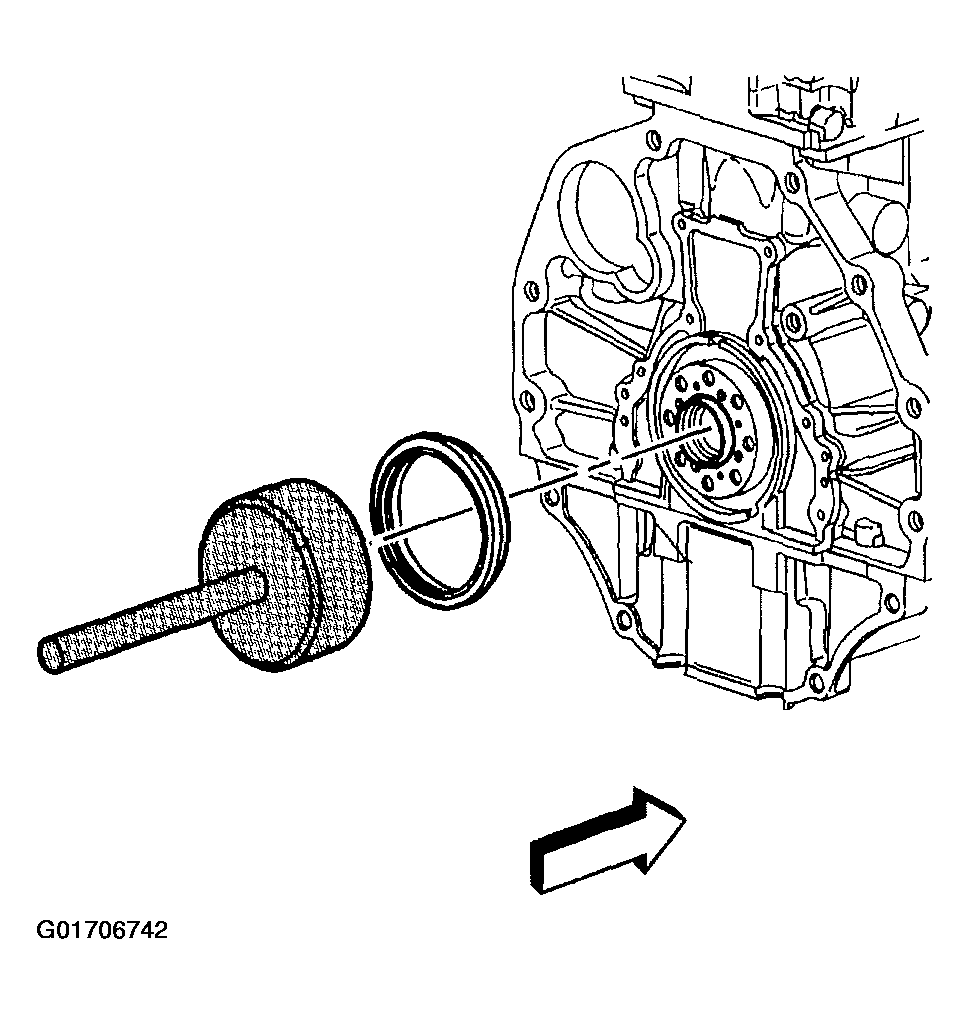

    2. Fig 1: Installing Crankshaft Rear Oil Seal
    G01706742Courtesy of GENERAL MOTORS CORP.
  2. Remove J 44227.
