Crankshaft Front Oil Seal Removal

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: Do not damage the engine front cover or the crankshaft.

Pry out the crankshaft front oil seal using a suitable tool.

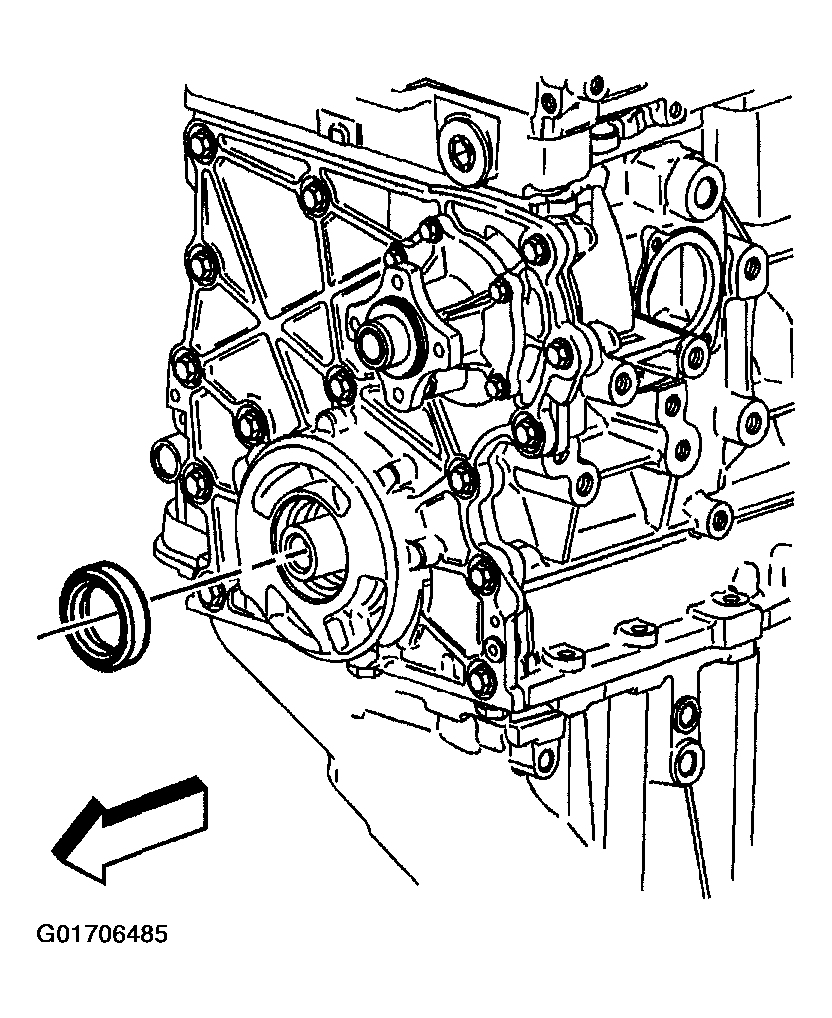

Fig 1: Removing Crankshaft Front Oil Seal
G01706485Courtesy of GENERAL MOTORS CORP.
