Crankshaft Front Oil Seal Installation

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.

Tools Required  : J 44218  Seal Installer

  1. Apply engine oil to the outside diameter of the crankshaft front oil seal.
  2. Use J 44218 to install the crankshaft front oil seal.

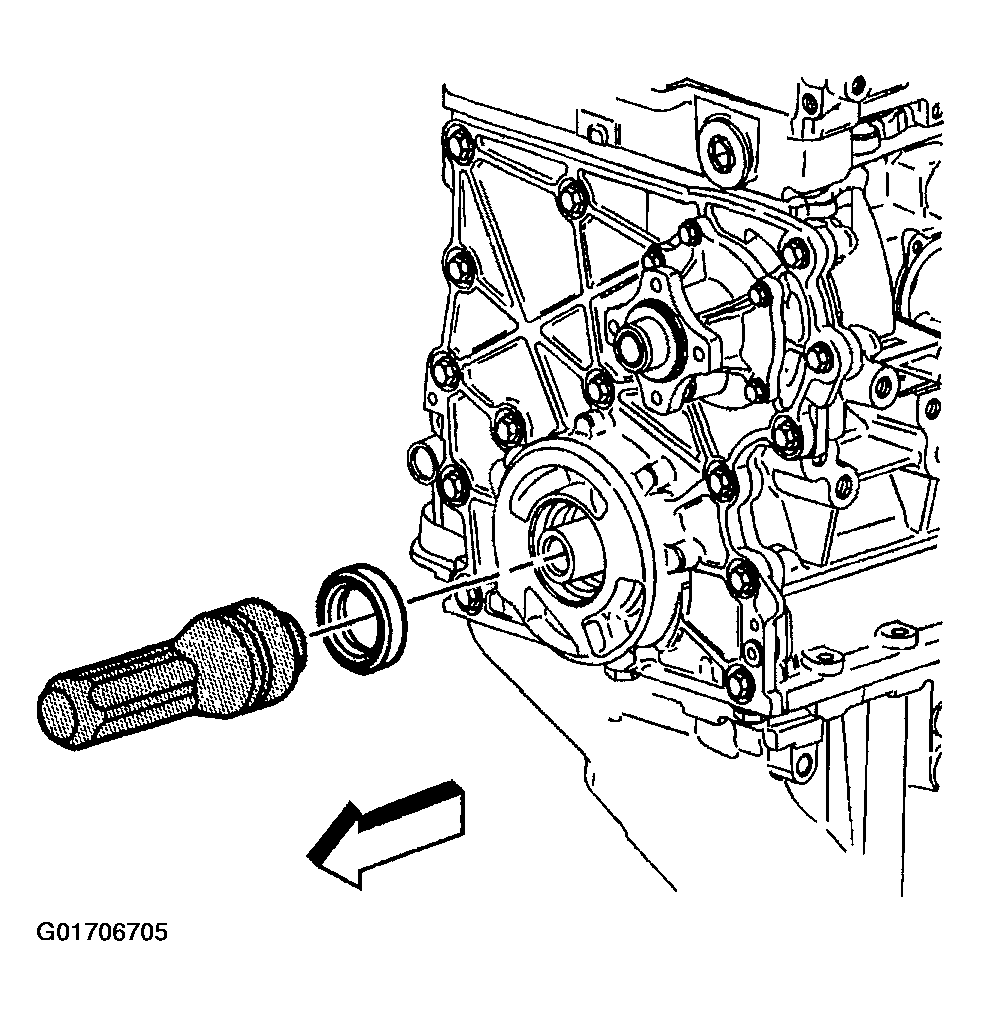

    3. Fig 1: Installing Crankshaft Front Oil Seal
    G01706705Courtesy of GENERAL MOTORS CORP.
  3. Remove J 44218.
