Crankshaft Balancer Cleaning and Inspection

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Inspect the crankshaft balancer sealing area for grooves, nicks, or burs (1).

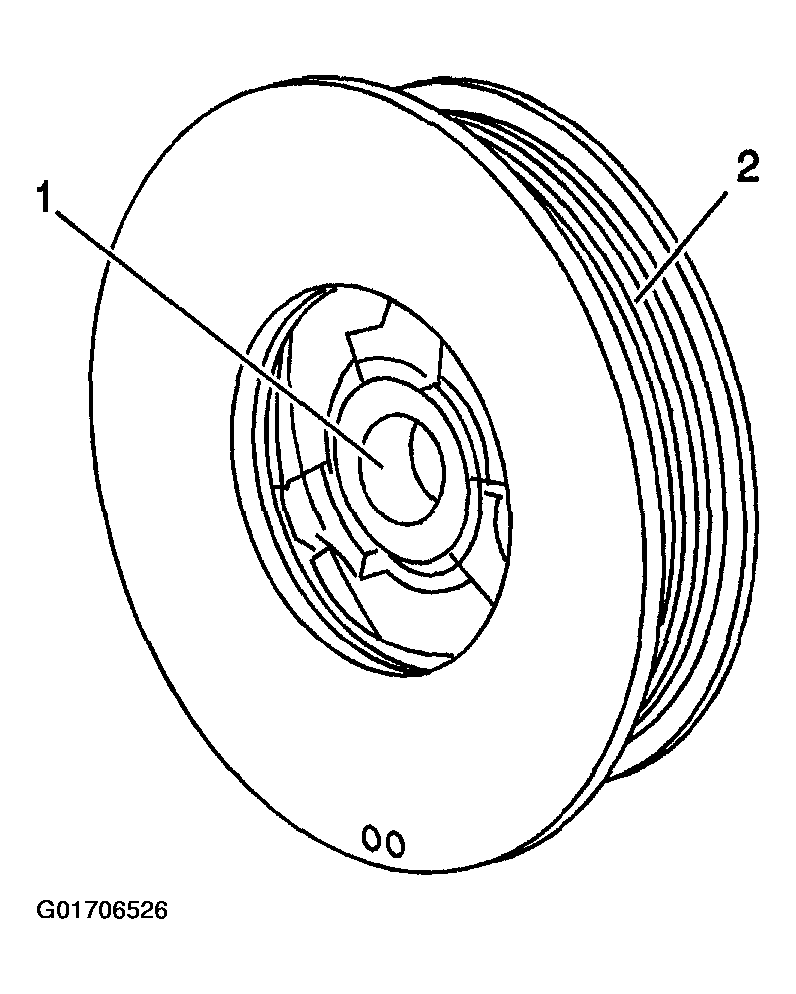

    2. Fig 1: Inspecting Crankshaft Balance
    G01706526Courtesy of GENERAL MOTORS CORP.
  2. Inspect the crankshaft balancer belt ribs for dents or damage (2).
  3. Replace the crankshaft balancer if damage is present.
