Camshaft Removal

WARNING: This page is about a different car, the 2002 Oldsmobile Bravada, 2002 GMC Envoy XL, 2002 GMC Envoy, and 2002 Chevrolet TrailBlazer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the camshaft cap bolts.
    IMPORTANT: Place the camshaft caps in a rack to ensure the caps are installed in the same location from which they were removed.
  2. Remove the camshaft caps.

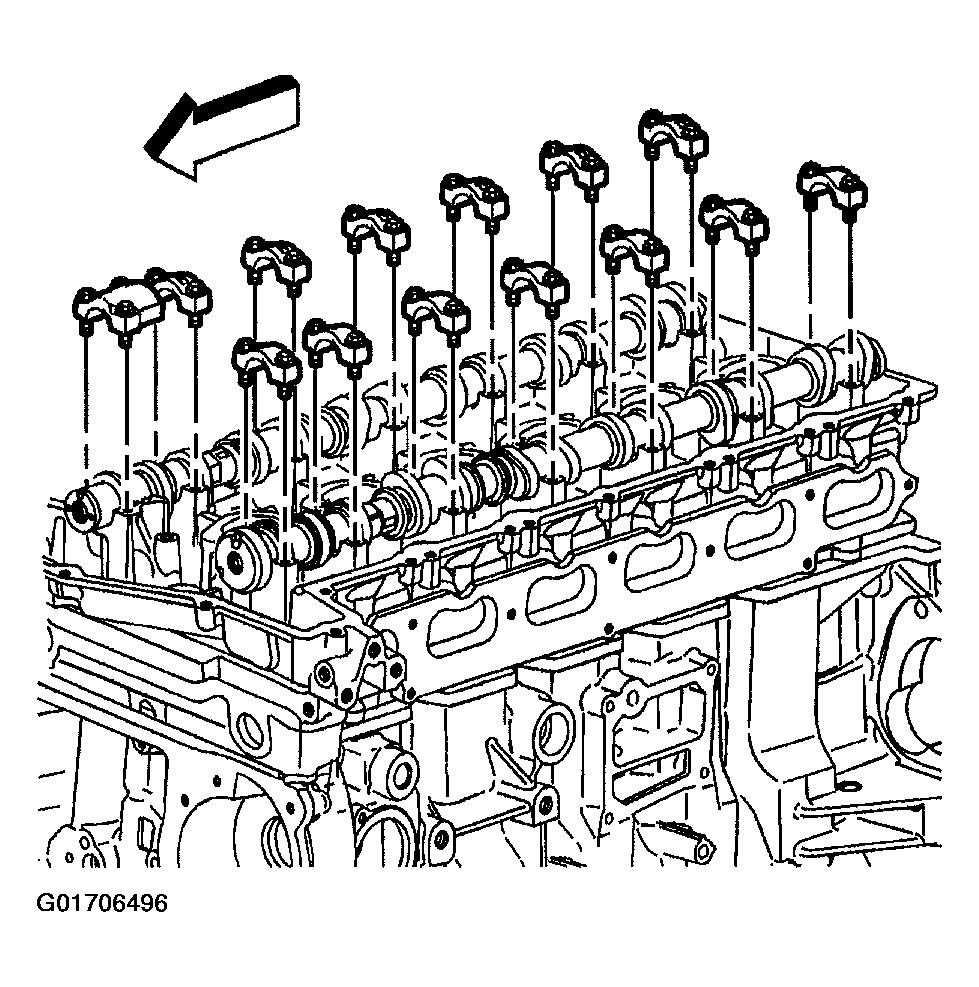

    3. Fig 1: Removing Camshaft Caps
    G01706496Courtesy of GENERAL MOTORS CORP.
  3. Remove the camshafts.

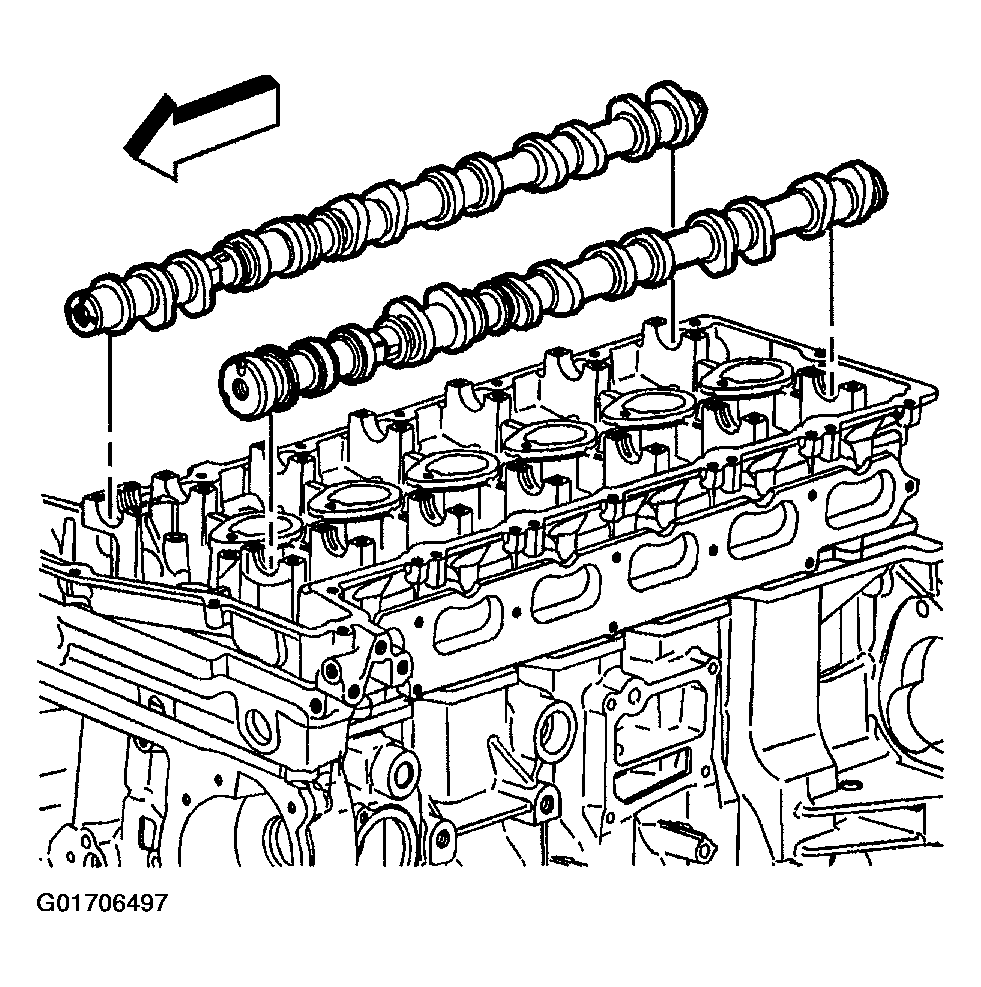

    4. Fig 2: Removing Camshaft
    G01706497Courtesy of GENERAL MOTORS CORP.
