Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the power steering pump reservoir to the power steering pump. Refer to Power Steering Reservoir Replacement - Off Vehicle (CB Series) .
  2. Install the power steering pump pulley to the power steering pump. Refer to Refer to Power Steering Pulley Replacement (3.8L)  or Power Steering Pulley Replacement (3.1 L) .
  3. Position the power steering pump to the engine.
    NOTE: Refer to FASTENER NOTICE .
  4. Install the power steering pump mounting bolts.

    Tighten

    Tighten the mounting bolts to 34 N.m (25 lb ft).

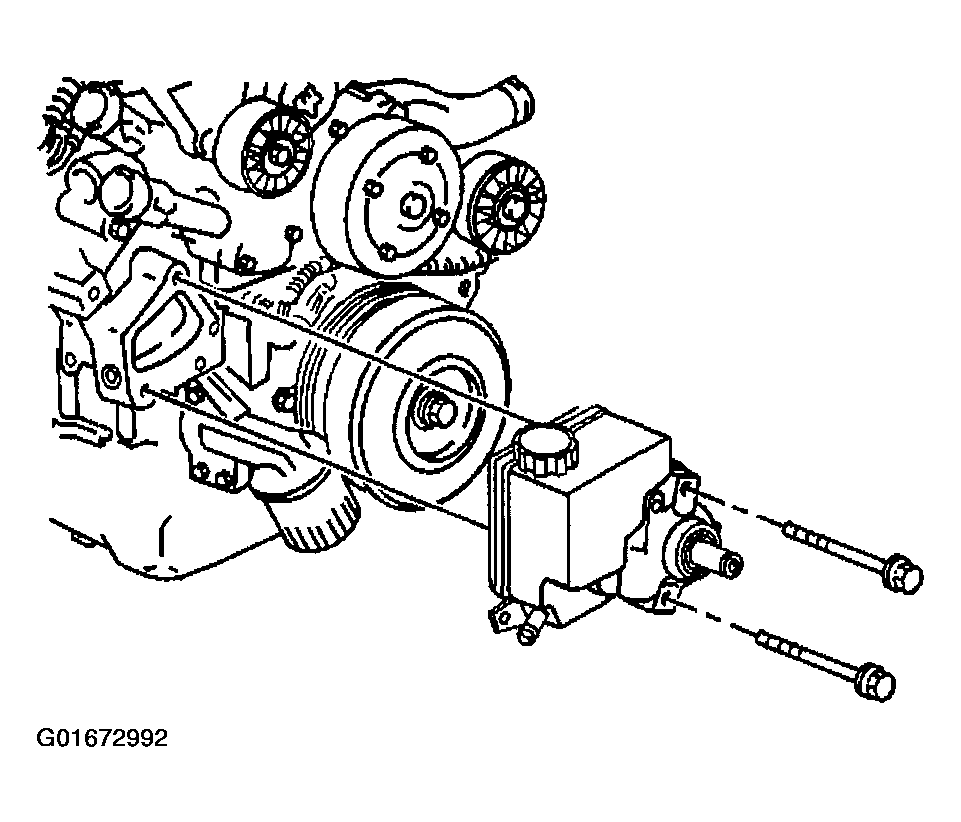

    Fig 1: Installing Power Steering Pump
    G01672992Courtesy of GENERAL MOTORS CORP.
  5. Install the power steering pressure hose to the power steering pump. Refer to Power Steering Pressure Hose Replacement (3.1L)  or Power Steering Pressure Hose Replacement (3.8L) .
  6. Install the power steering return hose to the power steering pump. Refer to Power Steering Return Hose Replacement (3.1L)  or Power Steering Return Hose Replacement (3.8L) .

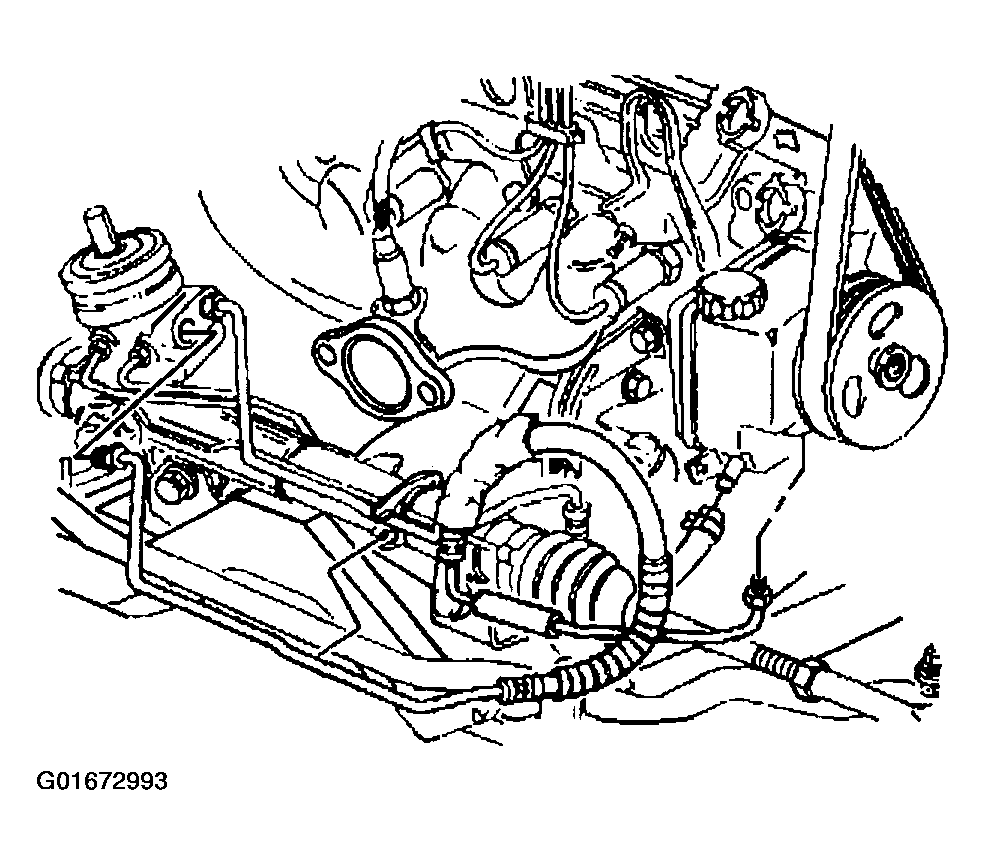

    Fig 2: Installing Power Steering Pressure Hose
    G01672993Courtesy of GENERAL MOTORS CORP.
  7. Install the electrical connector (1) to the power steering pump (4).
  8. Install the accessory drive belt. Refer to DRIVE BELT REPLACEMENT (L36) or DRIVE BELT REPLACEMENT (L67) .
  9. Fill the power steering system with fluid. Refer to Checking and Adding Power Steering Fluid .
  10. Bleed the power steering system. Refer to Bleeding the Power Steering System .
  11. Inspect the power steering system for leaks. Refer to Power Steering Fluid Leaks .

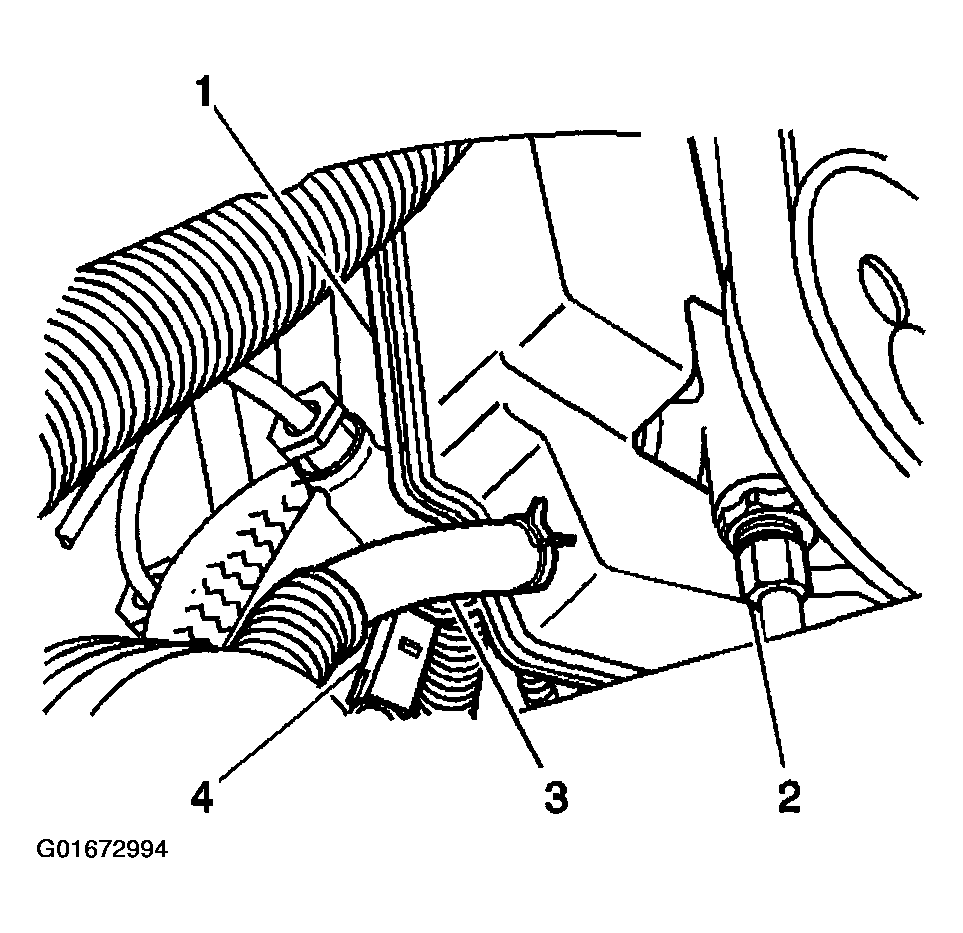

    Fig 3: Installing Power Steering Pump Electrical Connector
    G01672994Courtesy of GENERAL MOTORS CORP.
