Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the power steering pump from the engine for clearance. Refer to Power Steering Pump Replacement (3.8L)  or Power Steering Pump Replacement (3.1 L) .
  2. Using J 37609-A  remove the power steering pump pulley from the power steering pump.

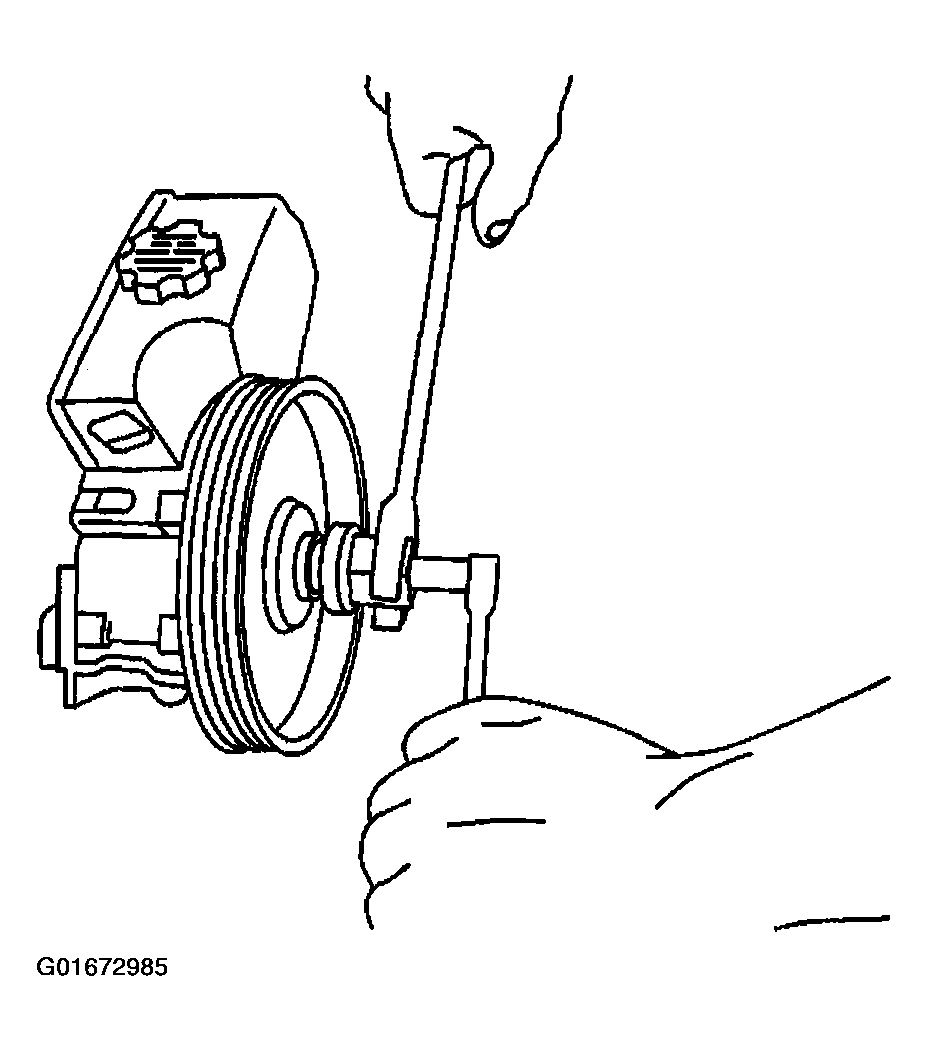

    Fig 1: Removing Power Steering Pump Pulley
    G01672985Courtesy of GENERAL MOTORS CORP.
