Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
  • Never use a hammer to install the power steering pulley.
  • The face of the power steering pulley hub must be flush with the end of the power steering pump driveshaft.
  1. Using J 25033-C  install the power steering pump pulley to the power steering pump.
  2. Install the power steering pump to the engine.

    Refer to Power Steering Pump Replacement (3.8L)  or Power Steering Pump Replacement (3.1 L) .

  3. Fill the power steering system. Refer to Checking and Adding Power Steering Fluid .
  4. Bleed the power steering system. Refer to Bleeding the Power Steering System .
  5. Inspect the power steering system for leaks. Refer to Power Steering Fluid Leaks .

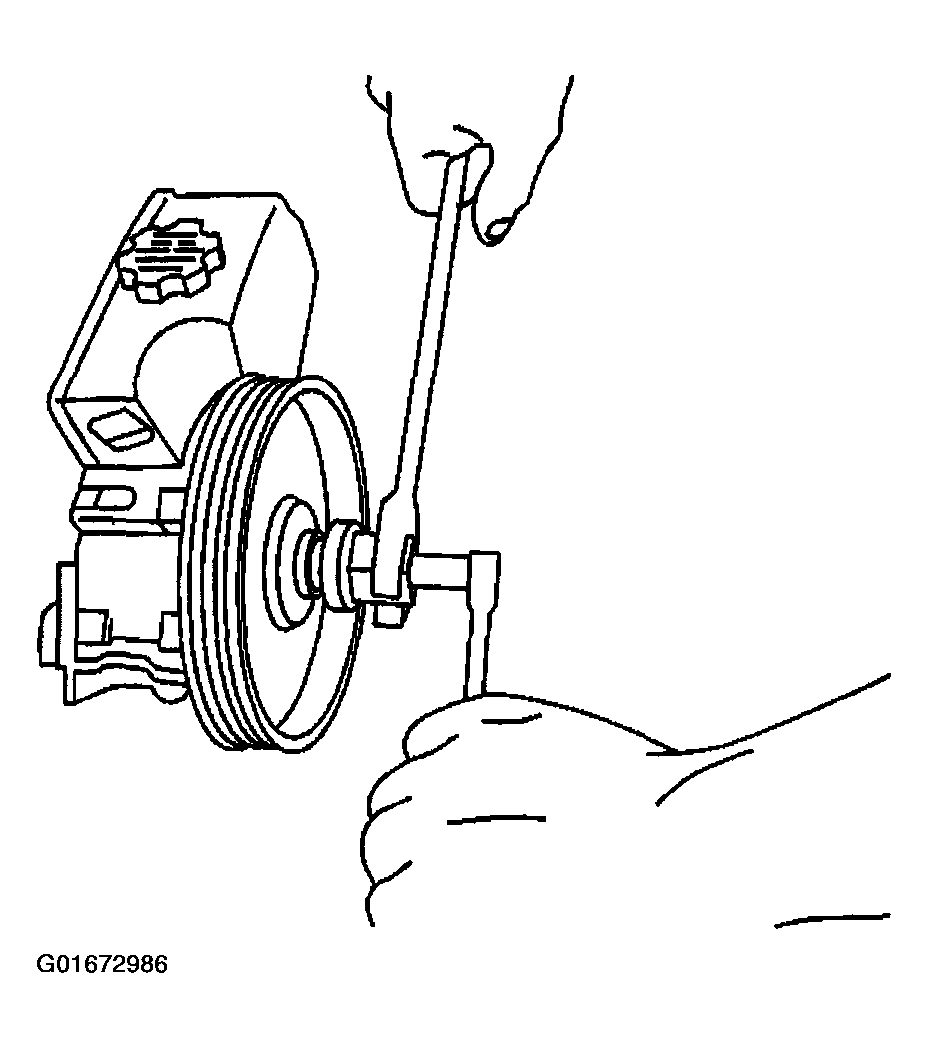

    Fig 1: Installing Power Steering Pump Pulley
    G01672986Courtesy of GENERAL MOTORS CORP.
