Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the power steering pressure hose (1) to the vehicle.
  2. Install the power steering pressure hose to the clamps on the power steering gear.

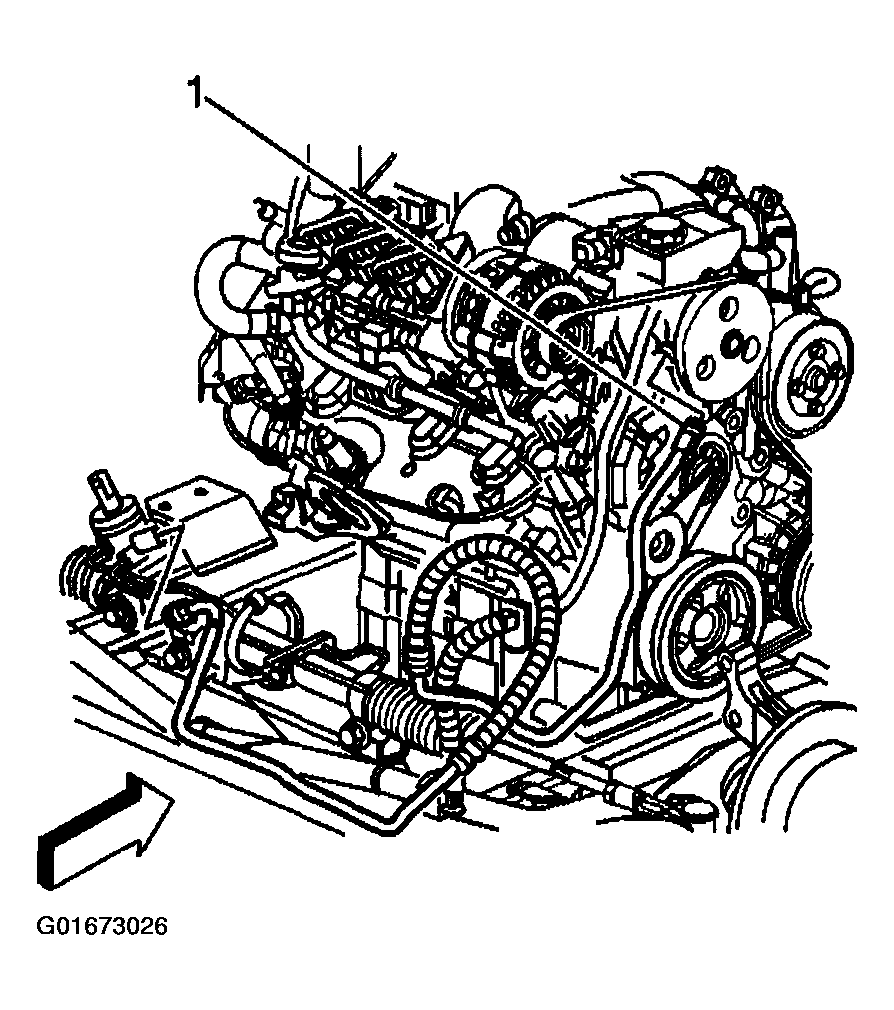

    Fig 1: Installing Power Steering Pressure Hose To Vehicle
    G01673026Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the power steering pressure hose to the power steering gear.

    Tighten

    Tighten the fitting to 27 N.m (20 lb ft).

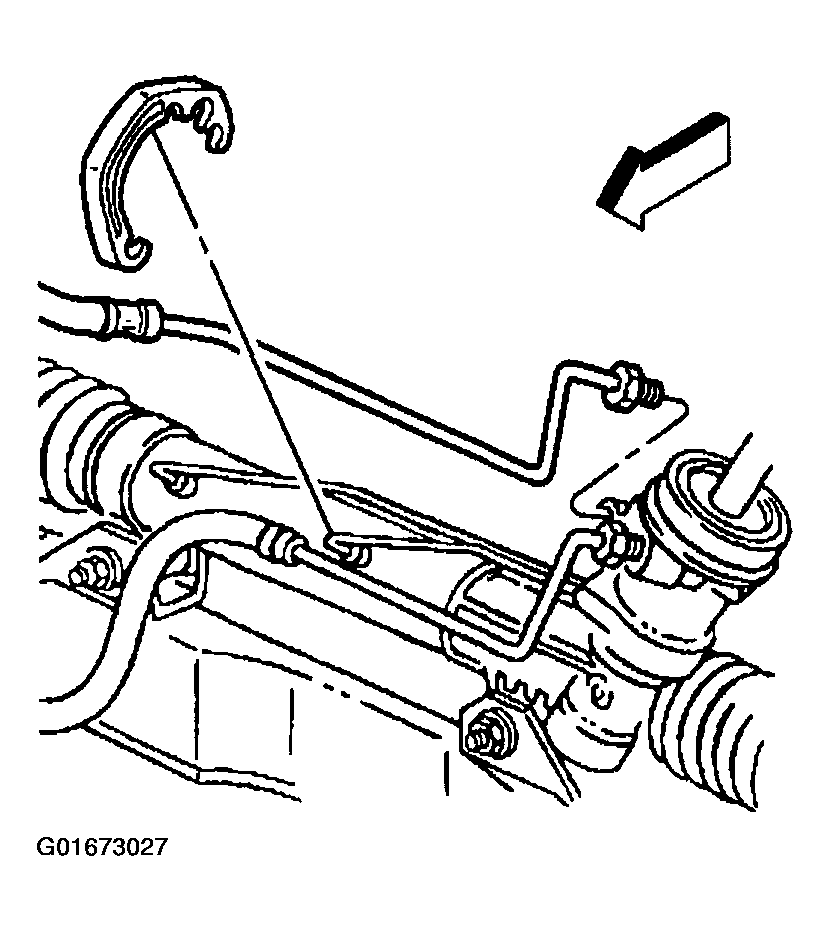

    Fig 2: Installing Pressure Hose To Gear
    G01673027Courtesy of GENERAL MOTORS CORP.
  4. Install the power steering pressure hose to the retaining bracket on the engine.
  5. Lower the vehicle.
  6. Install the power steering pressure hose to the power steering pump.

    Tighten

    Tighten the fitting to 27 N.m(20 lb ft).

  7. Install the coolant reservoir. Refer to COOLANT RECOVERY RESERVOIR REPLACEMENT .
  8. Fill the power steering system with power steering fluid. Refer to Checking and Adding Power Steering Fluid .
  9. Bleed the power steering system. Refer to Bleeding the Power Steering System .
  10. Inspect the power steering system for leaks. Refer to Power Steering Fluid Leaks .
  11. Remove the drain pan from under the vehicle.

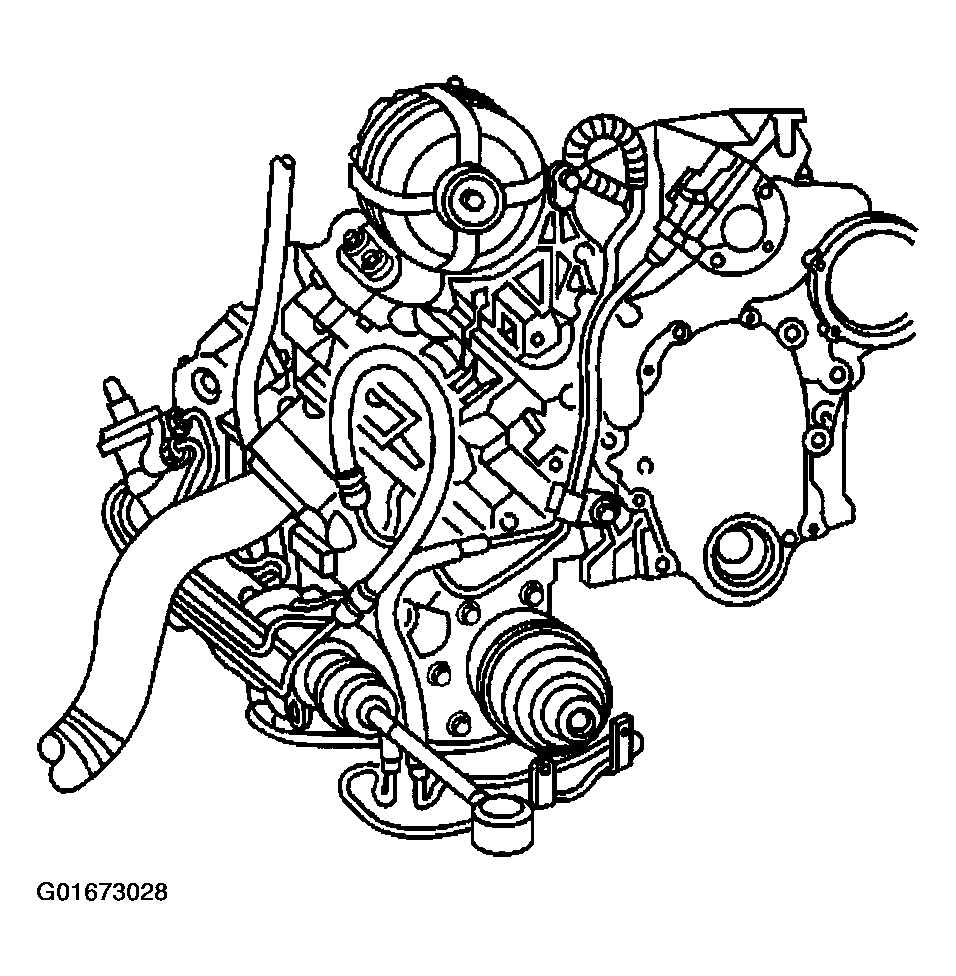

    Fig 3: Identifying Pressure Steering Hose (3.1)
    G01673028Courtesy of GENERAL MOTORS CORP.
