Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the folding top. Refer to FOLDING TOP REPLACEMENT in Roof.

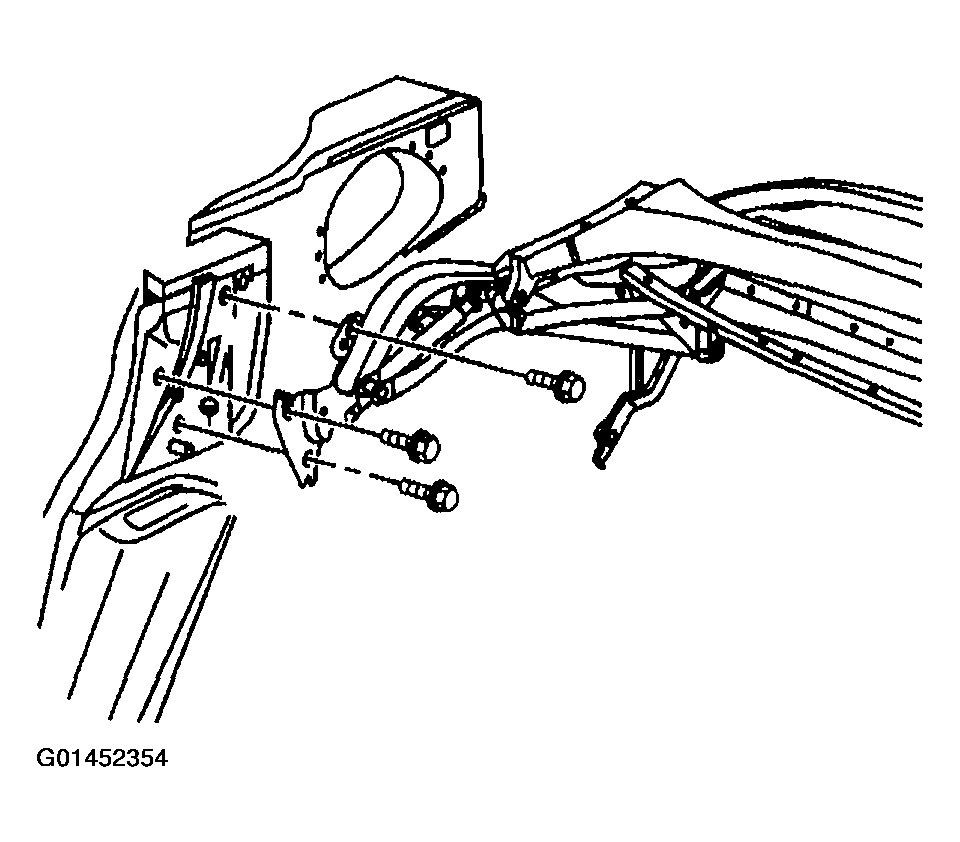

    Fig 1: Removing Folding Top
    G01452354Courtesy of GENERAL MOTORS CORP.
  2. Remove the bolts attaching the shoulder harness guide bracket.

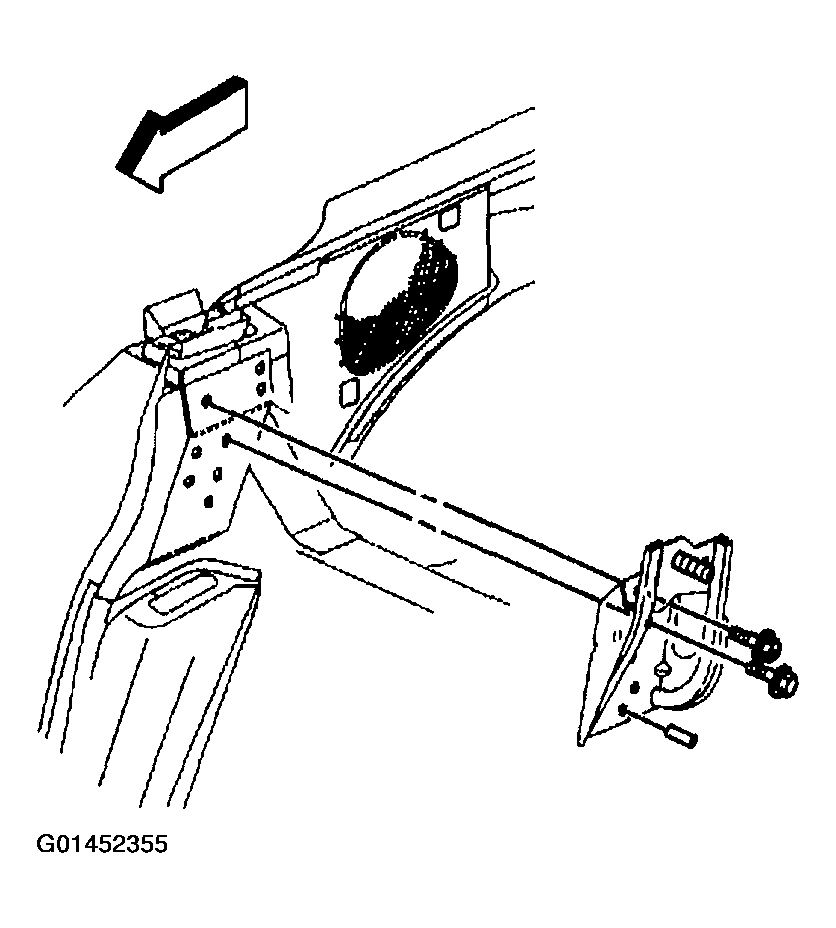

    Fig 2: Removing Bolts Attaching Shoulder Harness Guide Bracket
    G01452355Courtesy of GENERAL MOTORS CORP.
  3. Remove the bracket.
