Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Uncover the upper guide bolt by pushing up at the belt edge of the cover and flipping up the cover.
  2. Remove the upper guide bolt.

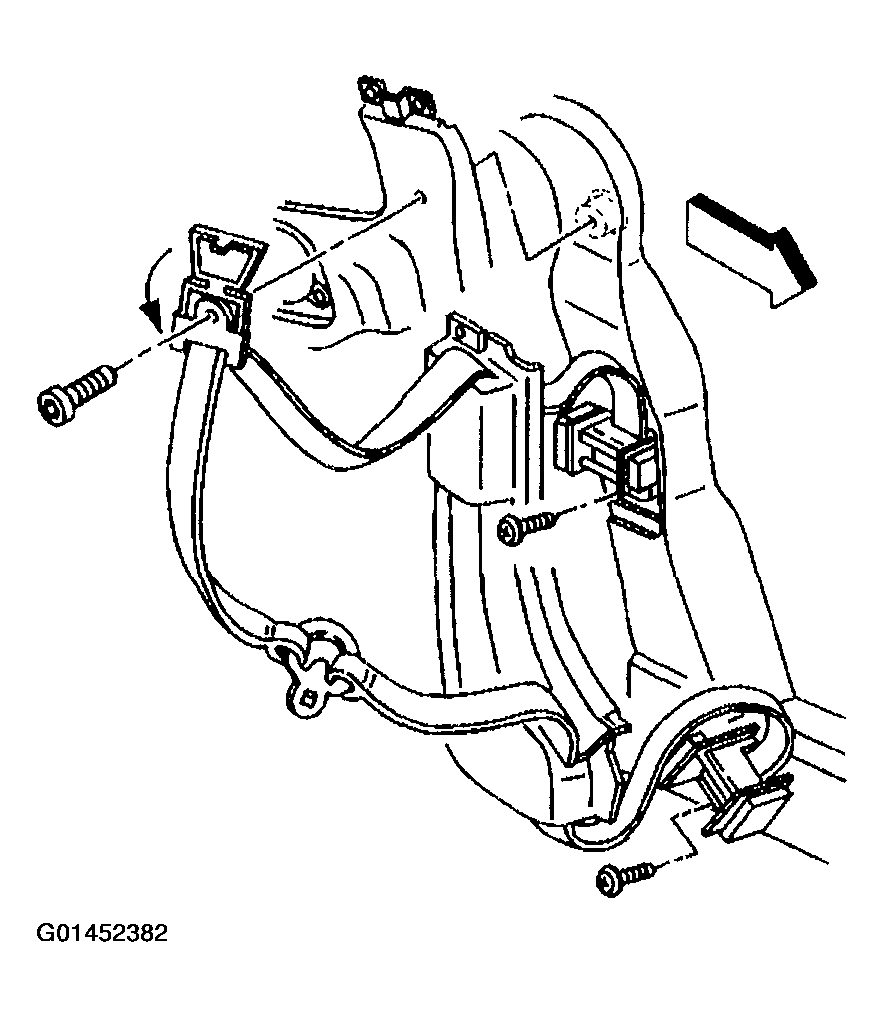

    Fig 1: Removing Upper Guide Bolt
    G01452382Courtesy of GENERAL MOTORS CORP.
  3. Remove the side sill trim plate. Refer to DOOR SILL PLATE REPLACEMENT in Interior Trim.

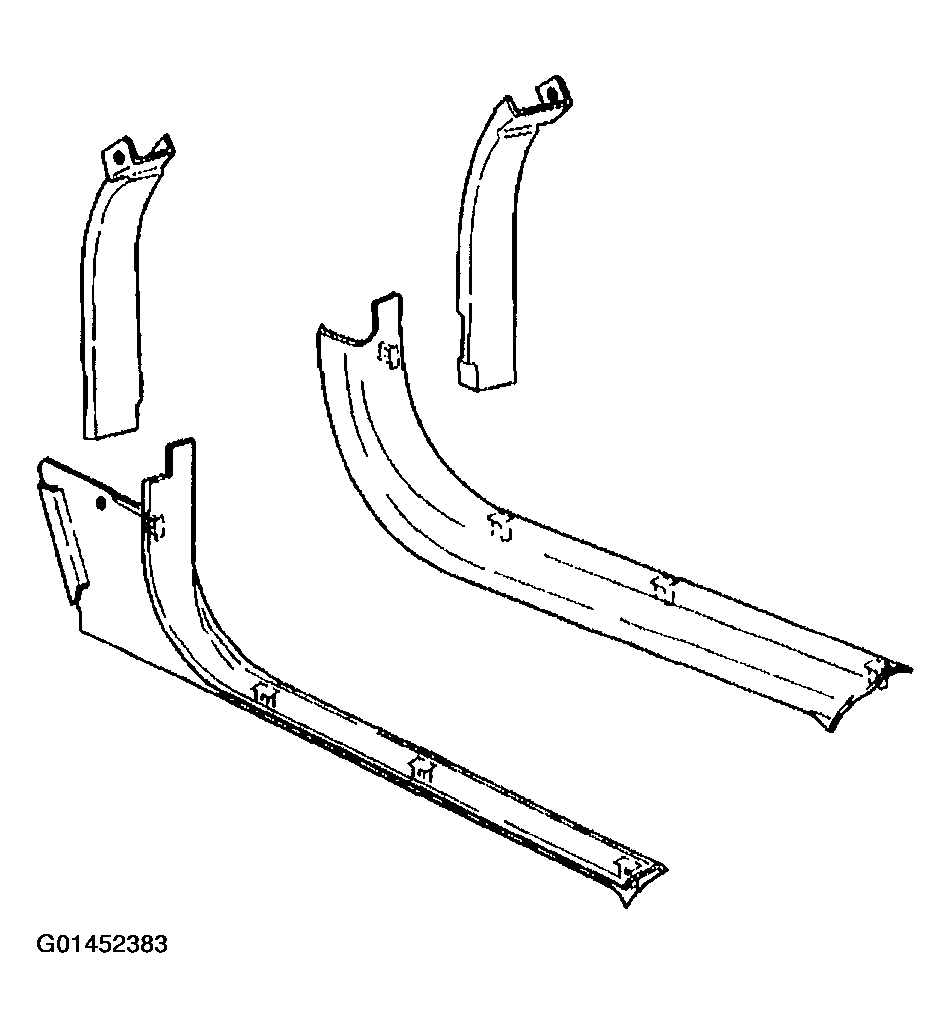

    Fig 2: Identifying Side Sill Trim Plate
    G01452383Courtesy of GENERAL MOTORS CORP.
  4. Remove the lock pillar trim panel. Refer to TRIM REPLACEMENT - LOCK PILLAR (UPPER CONVERTIBLE)  or  TRIM REPLACEMENT - LOCK PILLAR (COUPE)  or  TRIM REPLACEMENT - LOCK PILLAR (LOWER CONVERTIBLE AND HARD TOP)  in Interior Trim.

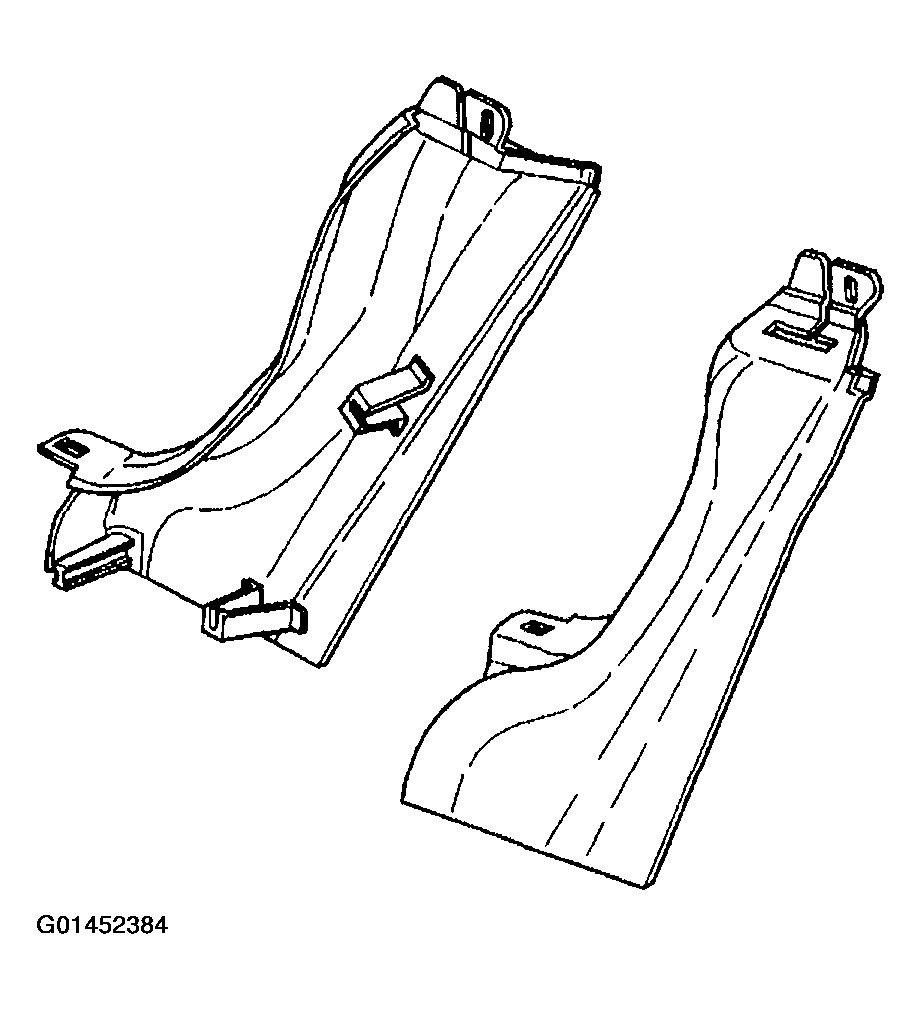

    Fig 3: View Of Lock Pillar Trim Panel
    G01452384Courtesy of GENERAL MOTORS CORP.
  5. Remove the bolt, mounting the upper retractor.
  6. Remove the bolt, mounting the lower retractor.
  7. Remove the retractor side of the seat belt.

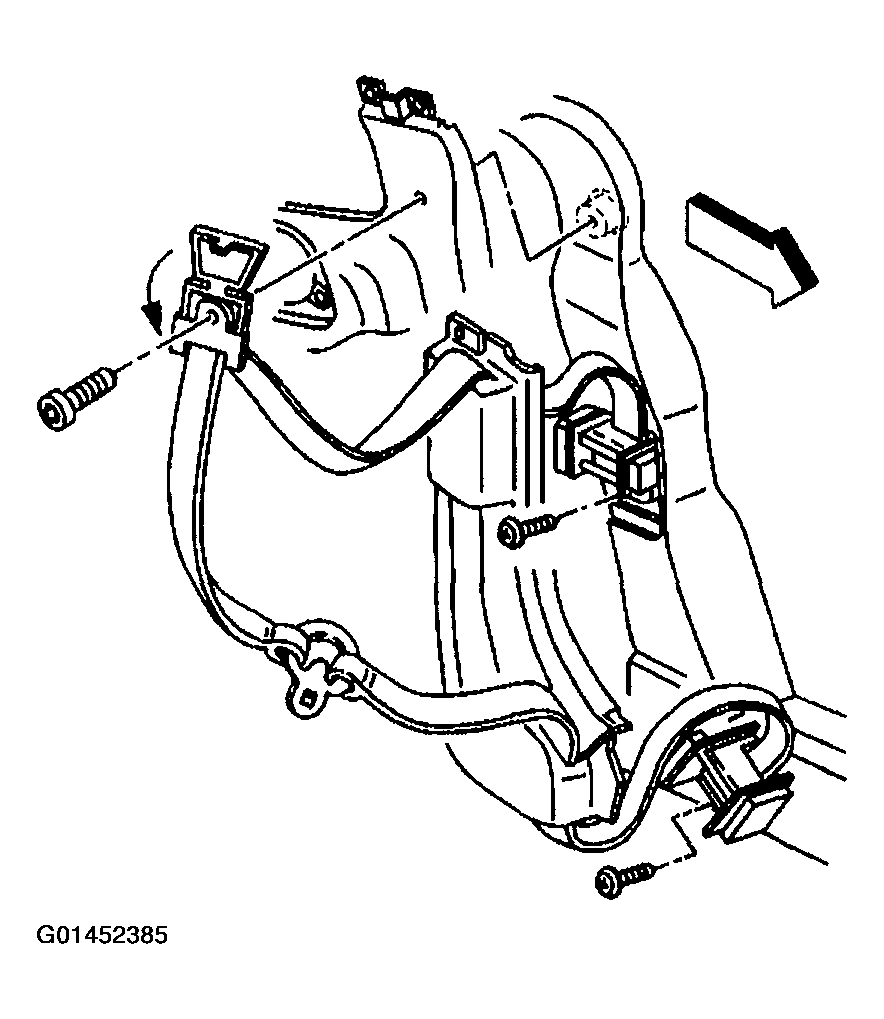

    Fig 4: Removing Retractor Side Of Seat Belt
    G01452385Courtesy of GENERAL MOTORS CORP.
