Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the upper guide bolt cover by prying up at the belt side of the cover.
  2. Remove the nut attaching the upper guide to the seat belt guide bracket stud.
  3. Remove the upper guide from the stud.

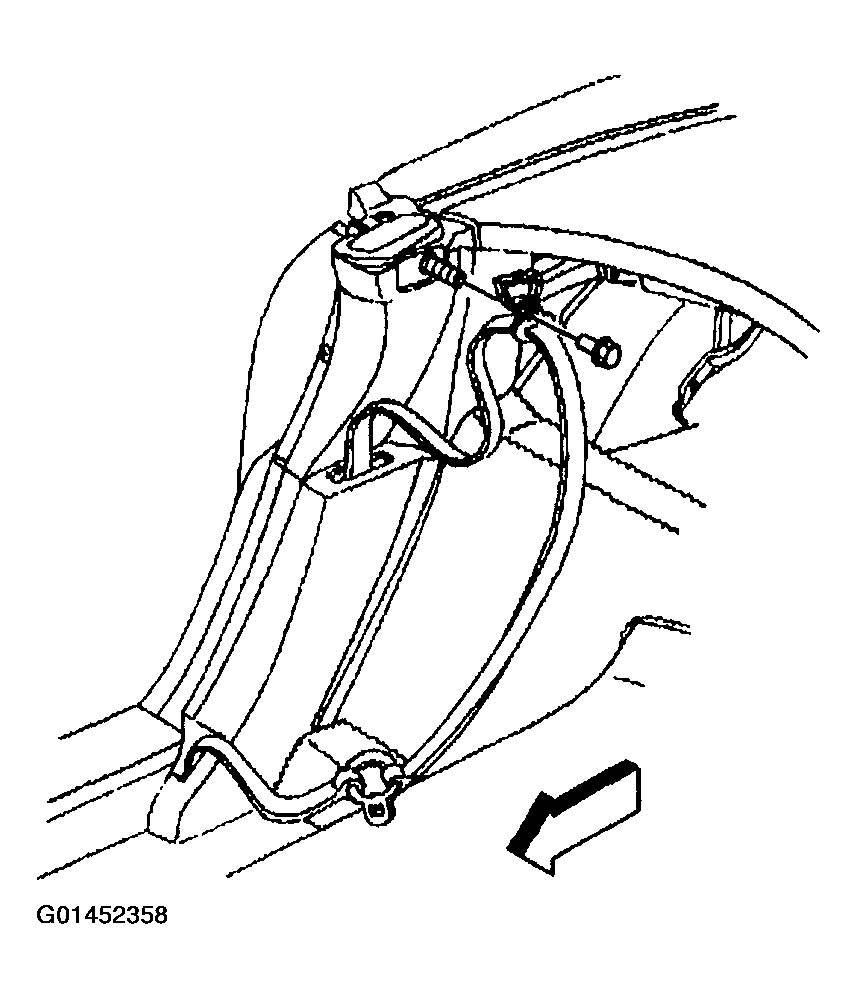

    Fig 1: Removing Upper Guide From Stud
    G01452358Courtesy of GENERAL MOTORS CORP.
  4. Remove the washer and spacer from the stud.
  5. Remove the screw attaching the lock pillar upper trim panel.
  6. Remove the lock pillar upper trim panel.

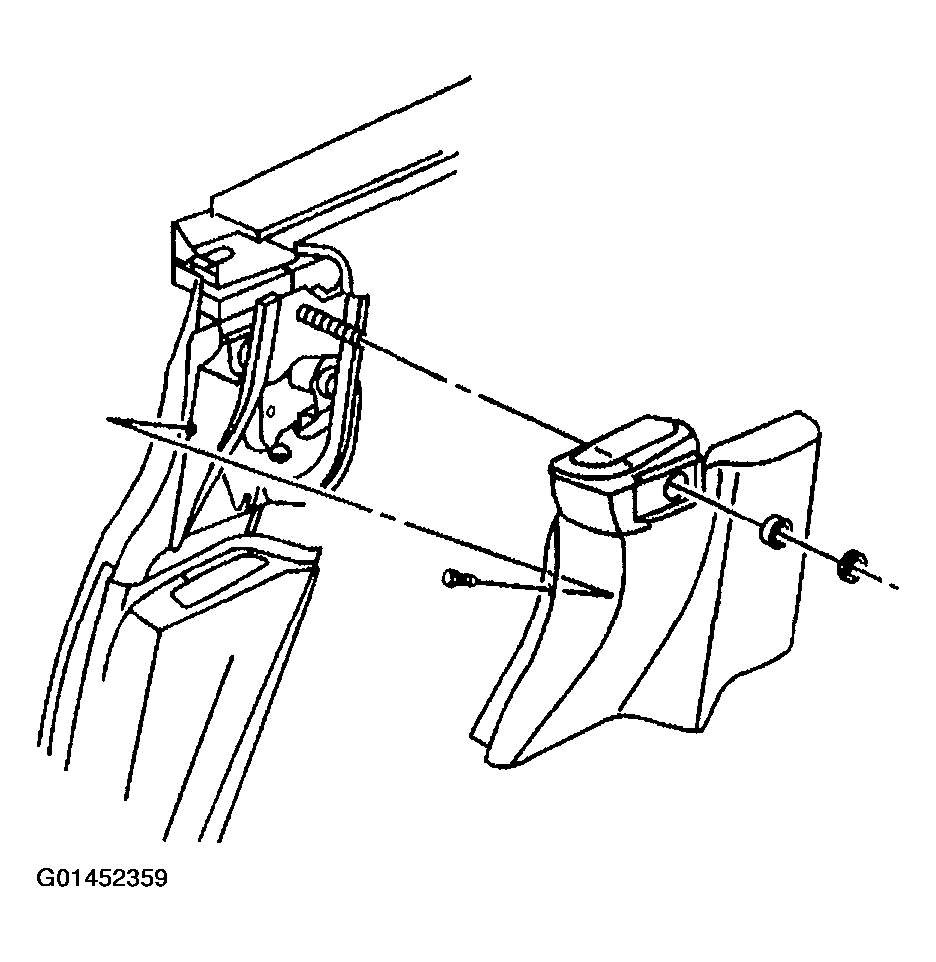

    Fig 2: Removing Lock Pillar Upper Trim Panel
    G01452359Courtesy of GENERAL MOTORS CORP.
  7. Remove the sill plate trim.
  8. Remove the lock pillar lower trim panel.
    Fig 3: Removing Lock Pillar Lower Trim Panel
    G01452360Courtesy of GENERAL MOTORS CORP.
  9. Remove the bolt attaching the upper retractor.
  10. Remove the bolt attaching the lower retractor.
  11. Remove the retractor side of the seat belt.

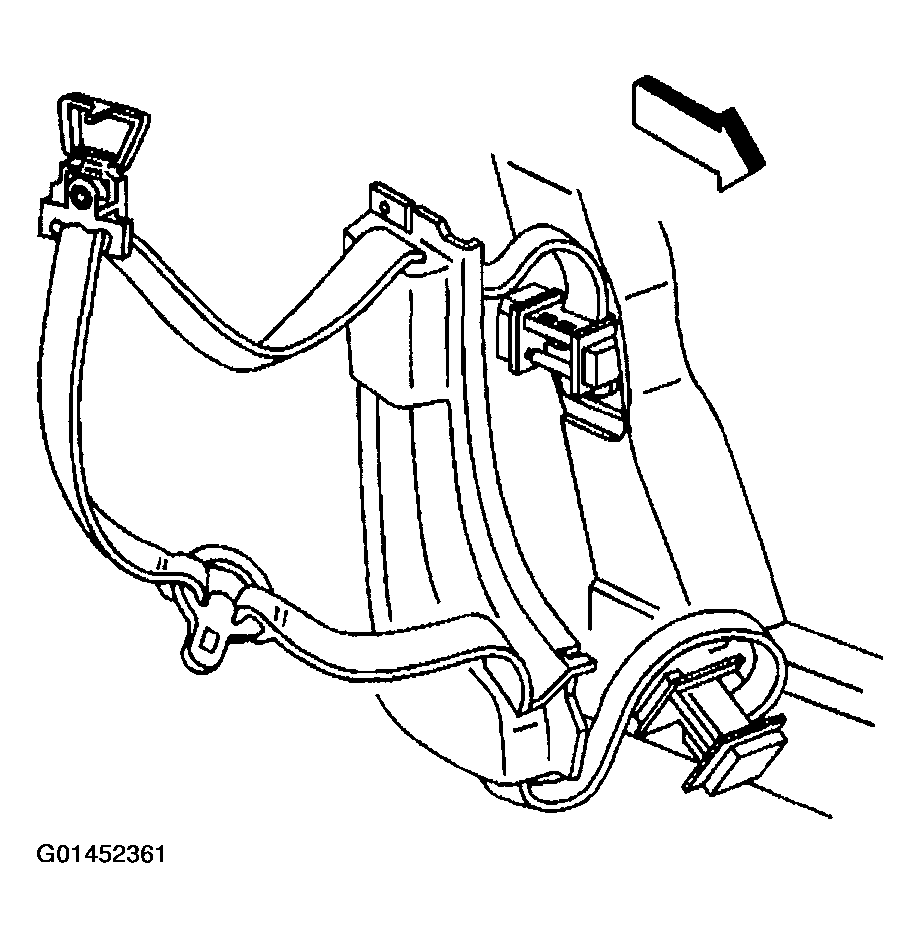

    Fig 4: Removing Retractor Side Of Seat Belt
    G01452361Courtesy of GENERAL MOTORS CORP.
