Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the passenger seat. Refer to SEAT REPLACEMENT (POWER)  or  SEAT REPLACEMENT (MANUAL)  in Seats.
  2. Remove the buckle side seat belt.

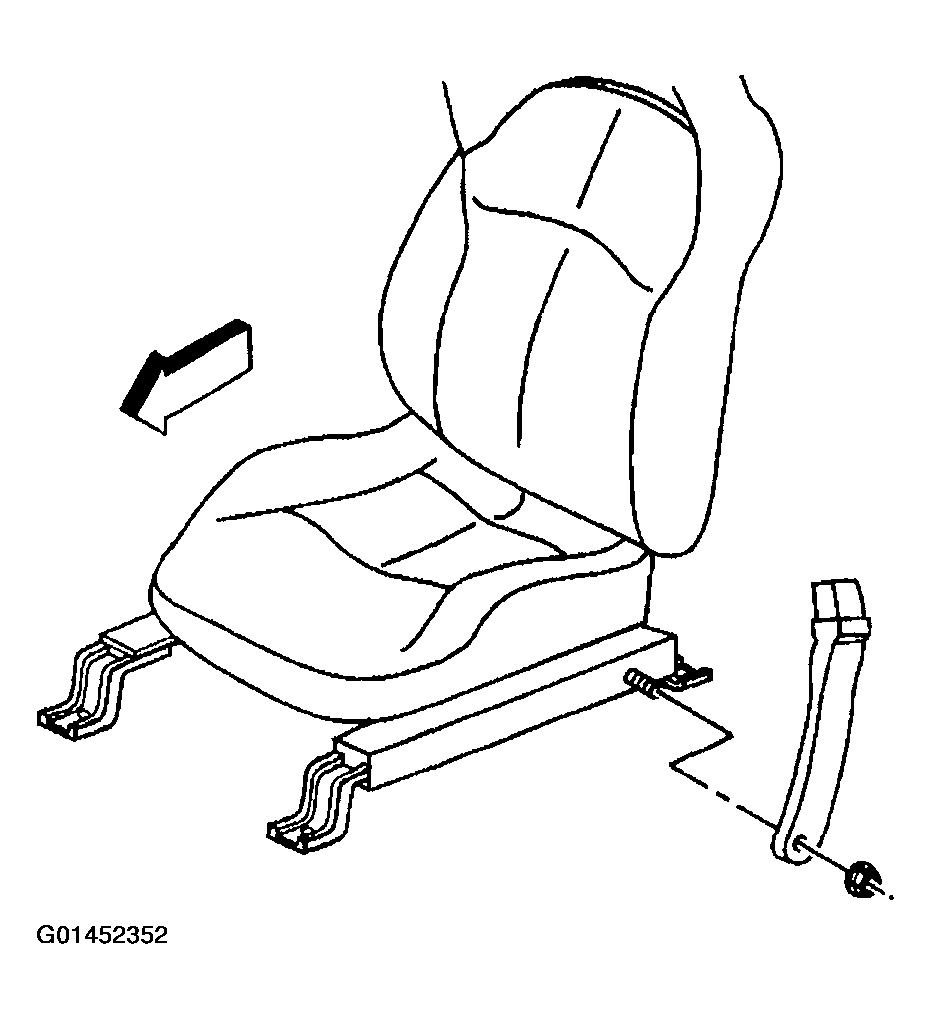

    Fig 1: Removing Buckle Side Seat Belt
    G01452352Courtesy of GENERAL MOTORS CORP.
