Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the driver seat. Refer to SEAT REPLACEMENT (POWER)  or  SEAT REPLACEMENT (MANUAL)  in Seats.
  2. Disconnect the seat belt electrical connector.
  3. Remove the buckle side seat belt from the seat track.

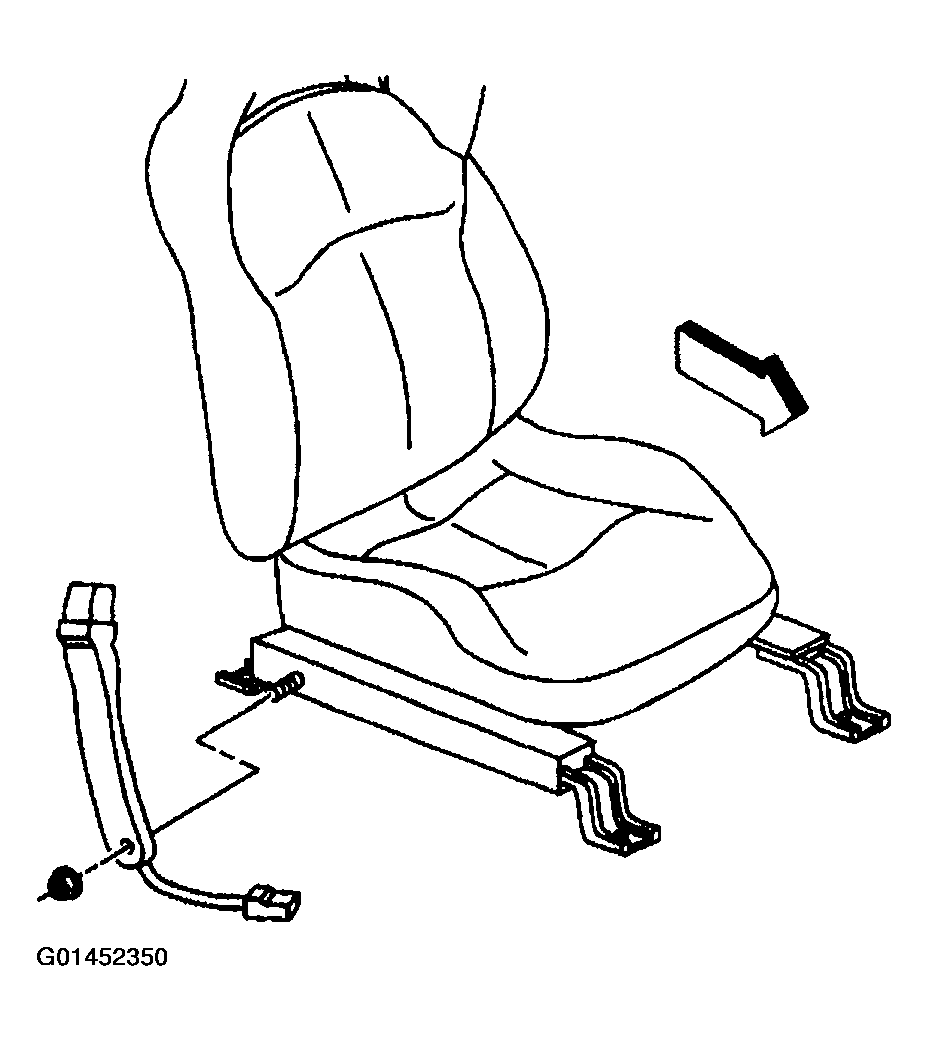

    Fig 1: Removing Buckle Side Seat Belt From Seat Track
    G01452350Courtesy of GENERAL MOTORS CORP.
