Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  1. Install the buckle side seat belt to the drivers seat track.

    Tighten

    Tighten the buckle side nut to 50 N.m (37 lb ft).

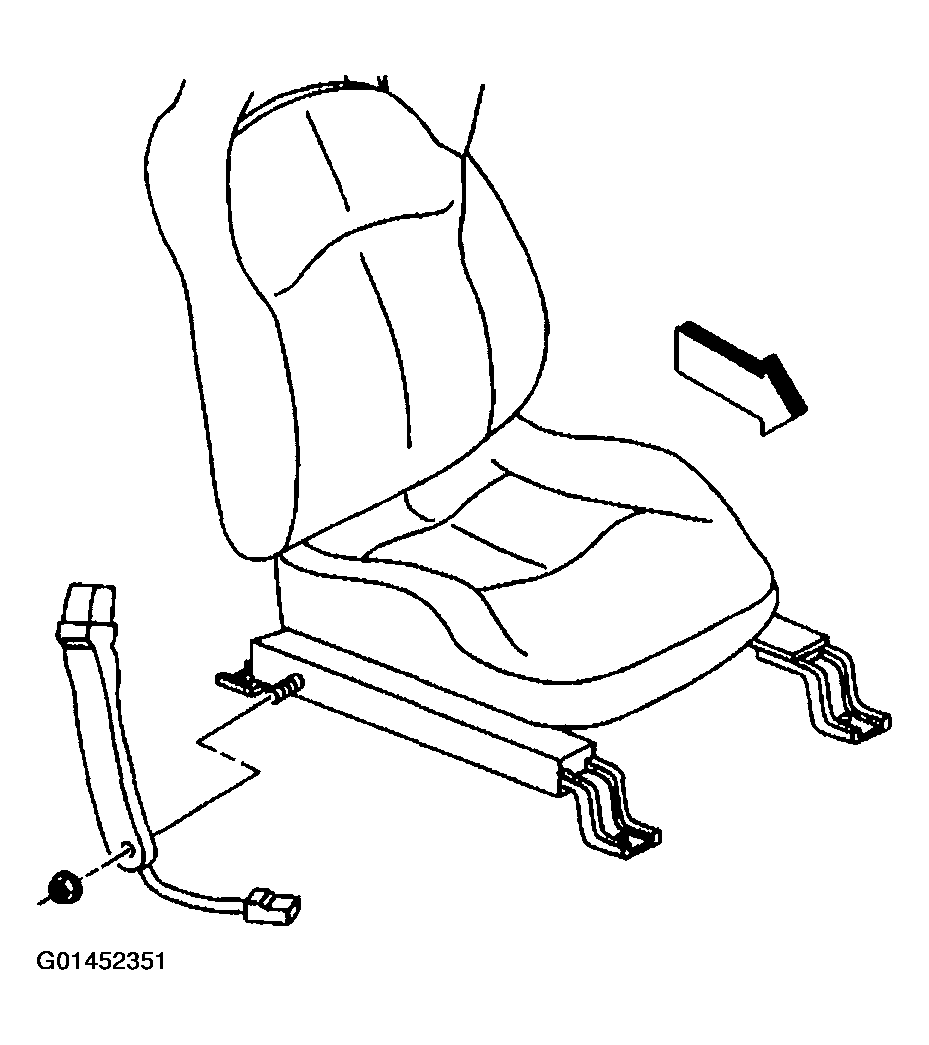

    Fig 1: Installing Buckle Side Seat Belt To Drivers Seat Track
    G01452351Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connector.
  3. Install the seat. Refer to SEAT REPLACEMENT (POWER) or SEAT REPLACEMENT (MANUAL) in Seats.
