Schematic and Routing Diagrams

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

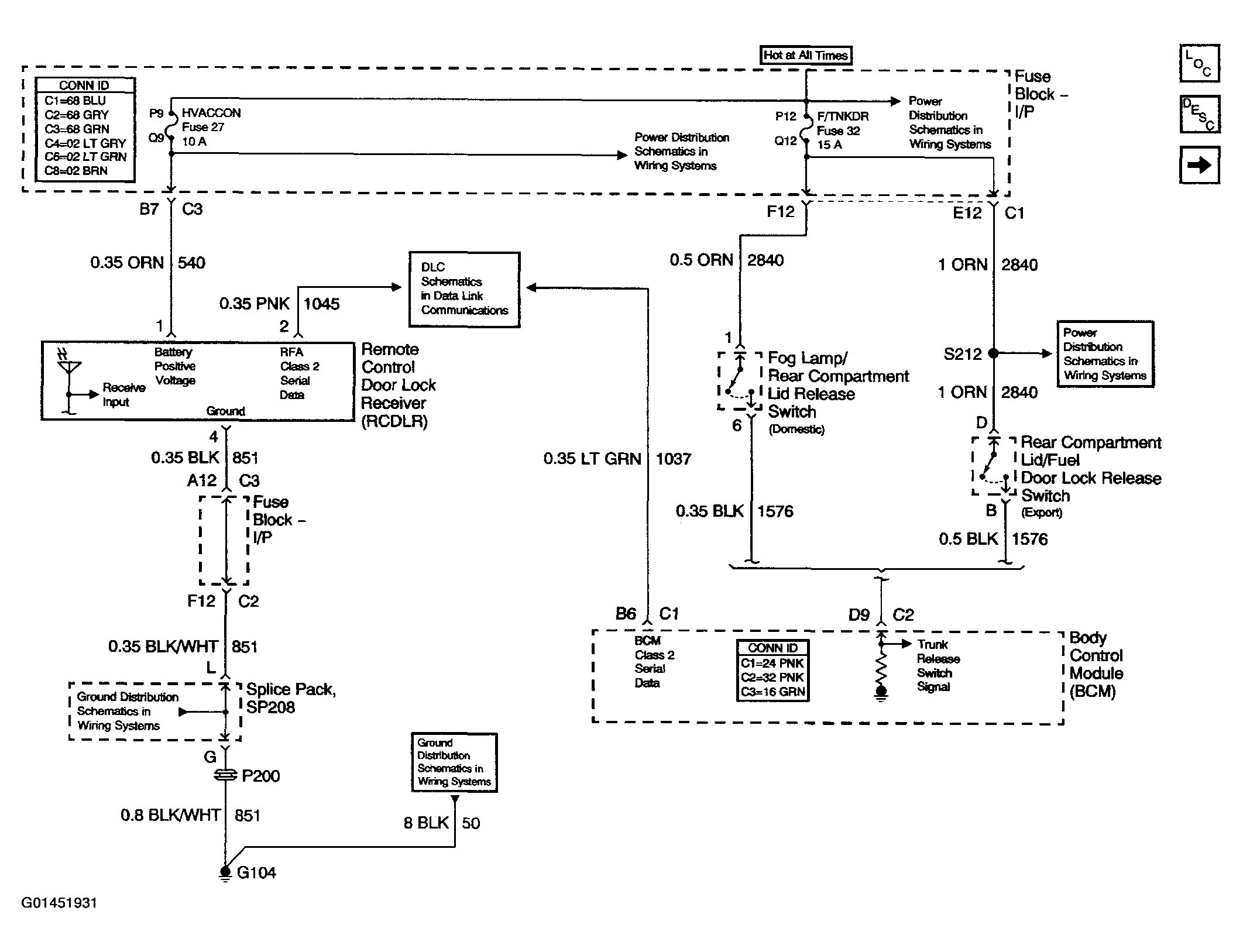

Fig 1: Body Rear End Schematics (Remote Control Door Lock Receiver & Rear Compartment Lid Release Request)

Courtesy of GENERAL MOTORS CORP.

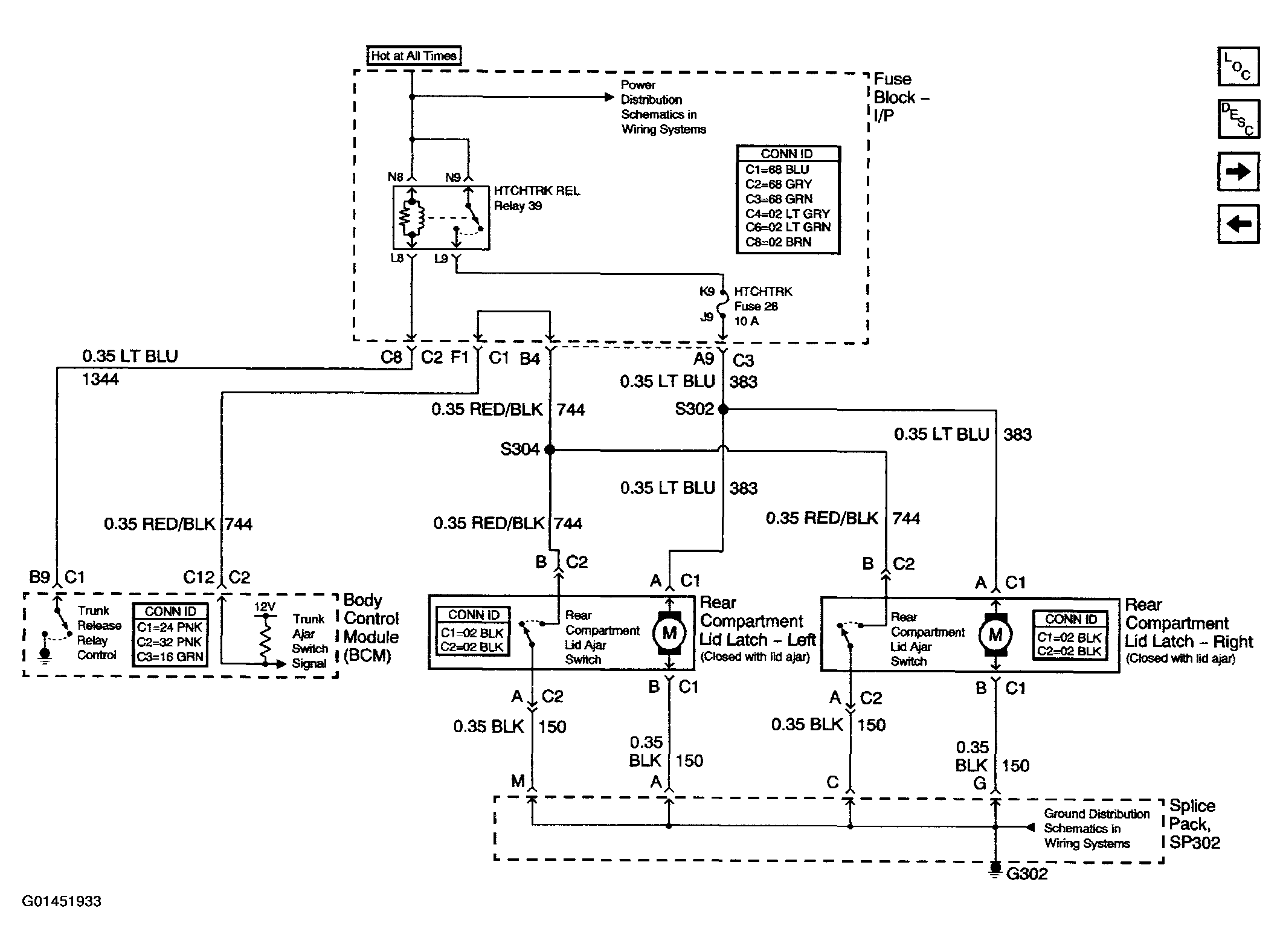

Fig 2: Body Rear End Schematics (Rear Compartment Lid Release Control & Rear Compartment Lid Ajar Switch (Hardtop/Convertible))

Courtesy of GENERAL MOTORS CORP.

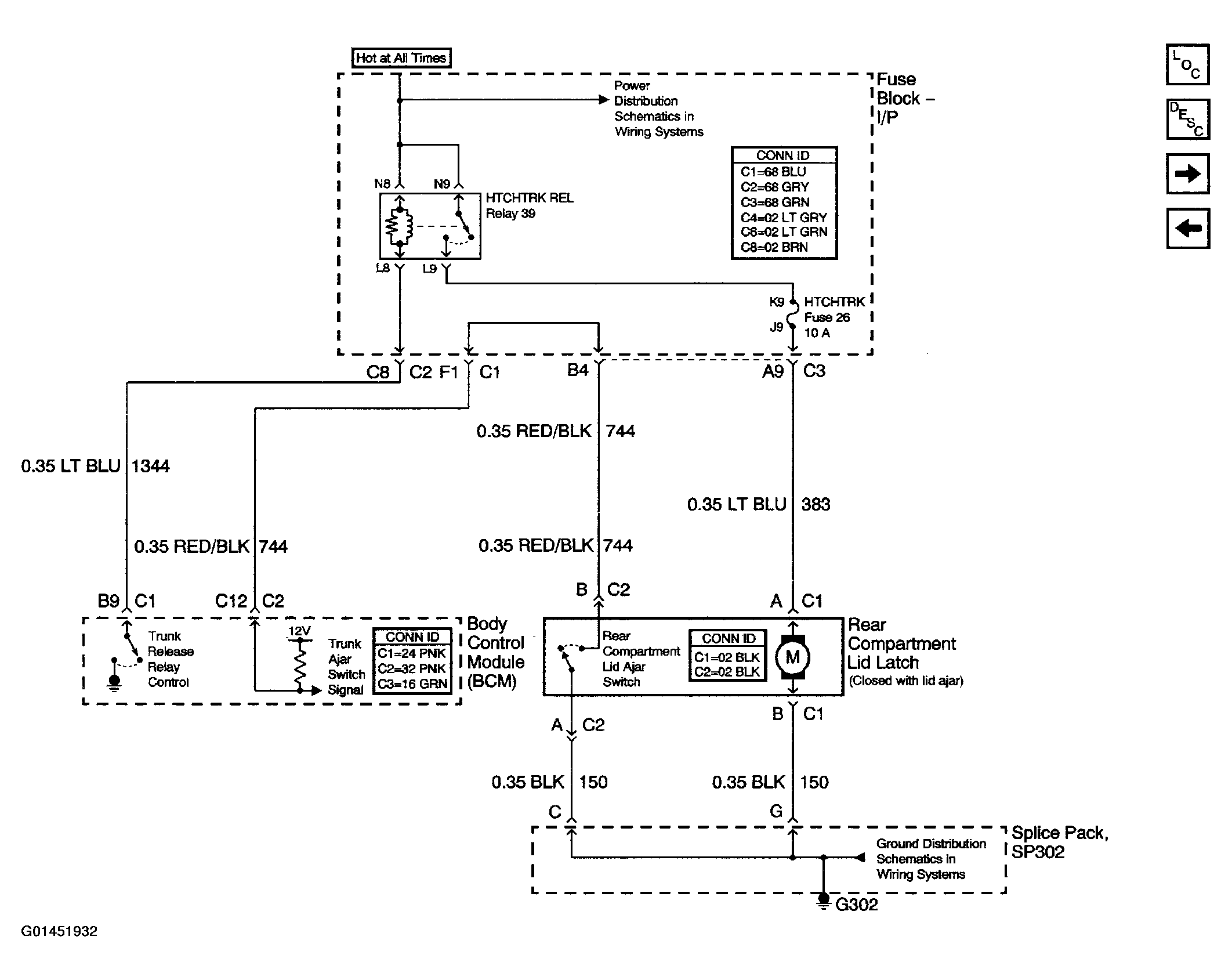

Fig 3: Body Rear End Schematics (Rear Compartment Lid Release Control & Rear Compartment Lid Ajar Switch (Coupe))

Courtesy of GENERAL MOTORS CORP.

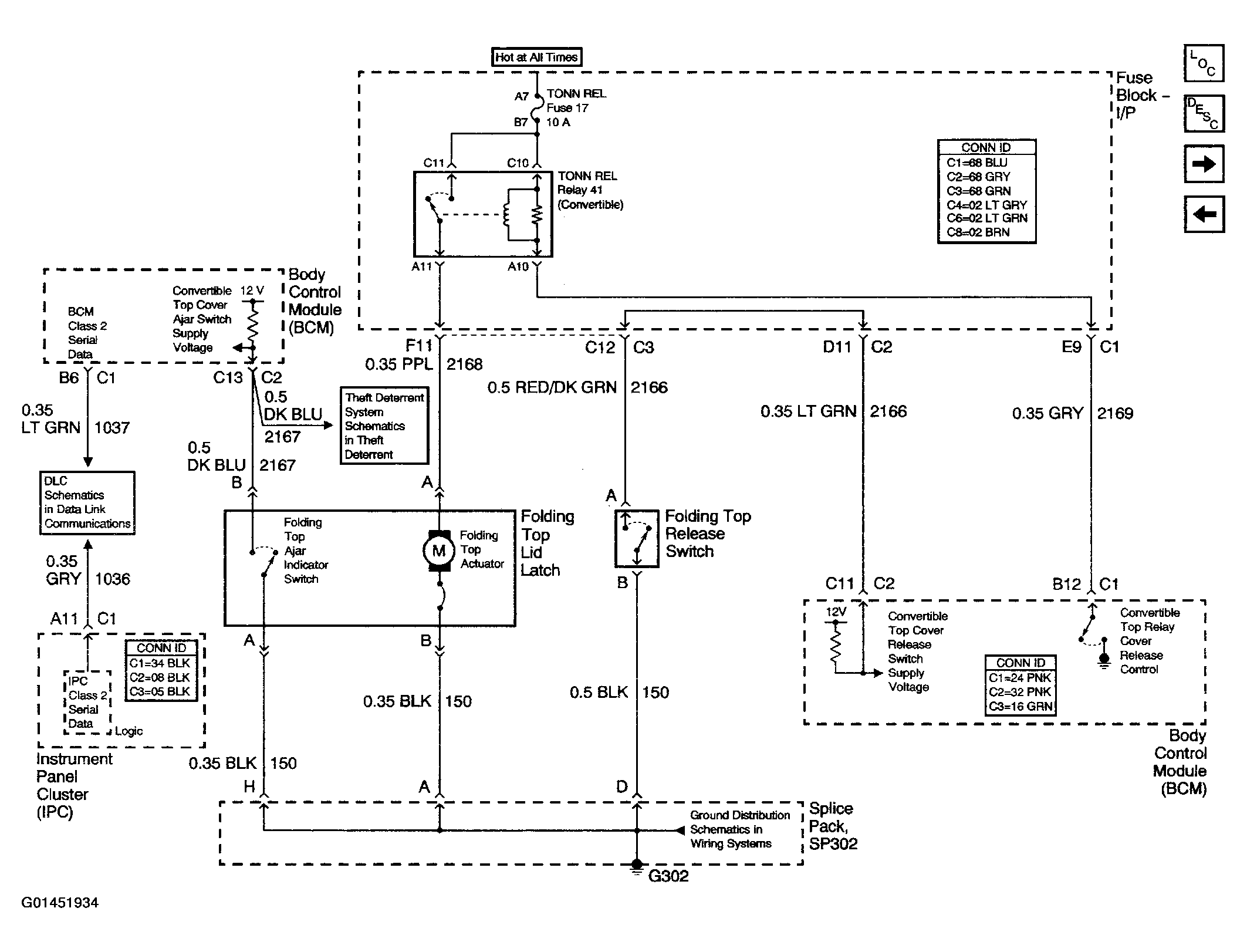

Fig 4: Body Rear End Schematics (Folding Top Control)

Courtesy of GENERAL MOTORS CORP.

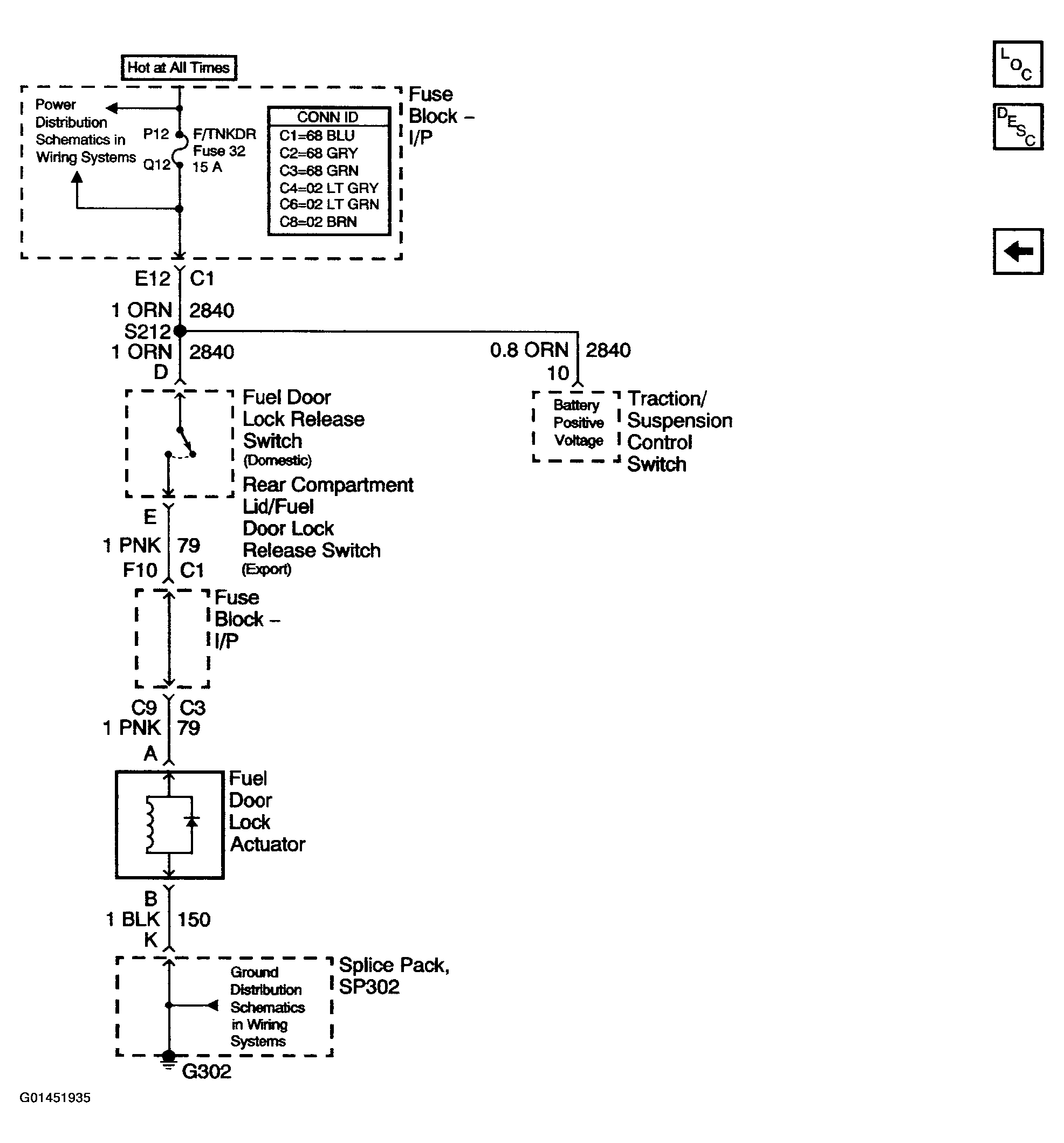

Fig 5: Body Rear End Schematics (Fuel Tank Filler Door Release)

Courtesy of GENERAL MOTORS CORP.
