Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.
  2. Remove the bolts attaching the rear wheelhouse liner panel.
  3. Remove the wheelhouse liner panel.

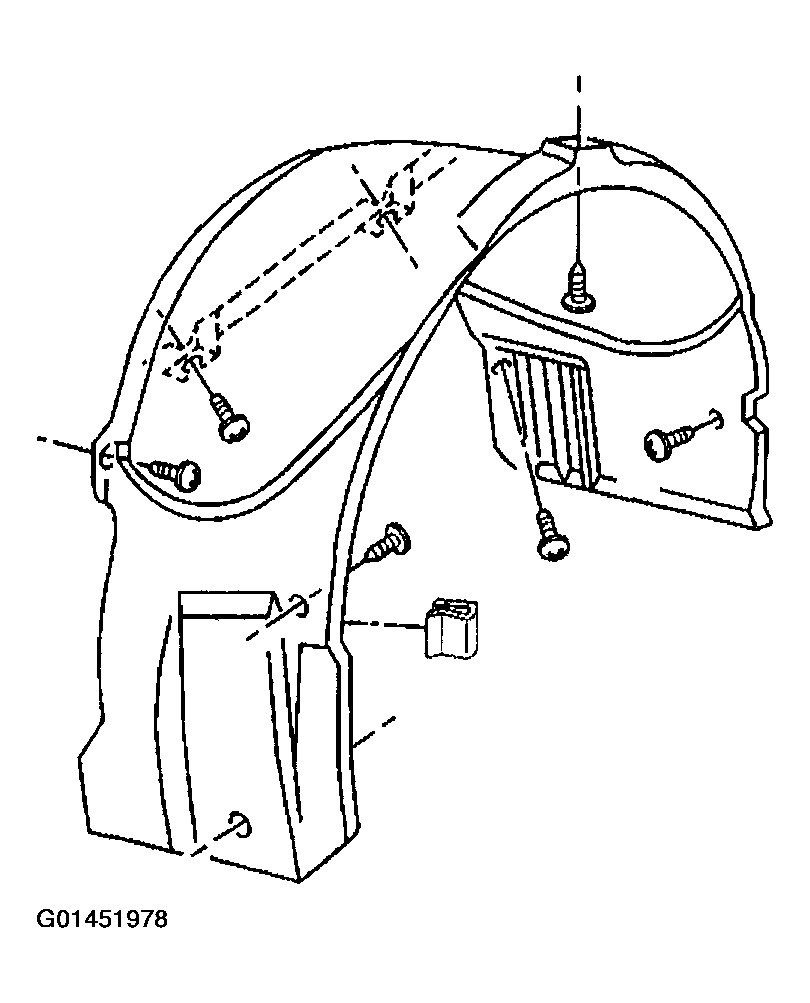

    Fig 1: Wheelhouse Liner Panel
    G01451978Courtesy of GENERAL MOTORS CORP.
