Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the wheelhouse liner panel.
  2. Install the upper outer bolt.
  3. Install the upper center bolts.
  4. Position the lower front corner of the wheelhouse liner panel behind the door opening finish panel and install the attaching bolt.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  5. Install the remaining bolts attaching the wheelhouse liner panel to the wheelhouse.

    Tighten

    Tighten the rear wheelhouse liner bolts to 2 N.m (18 lb in).

  6. Install the tire and wheel. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION in Tires and Wheels.

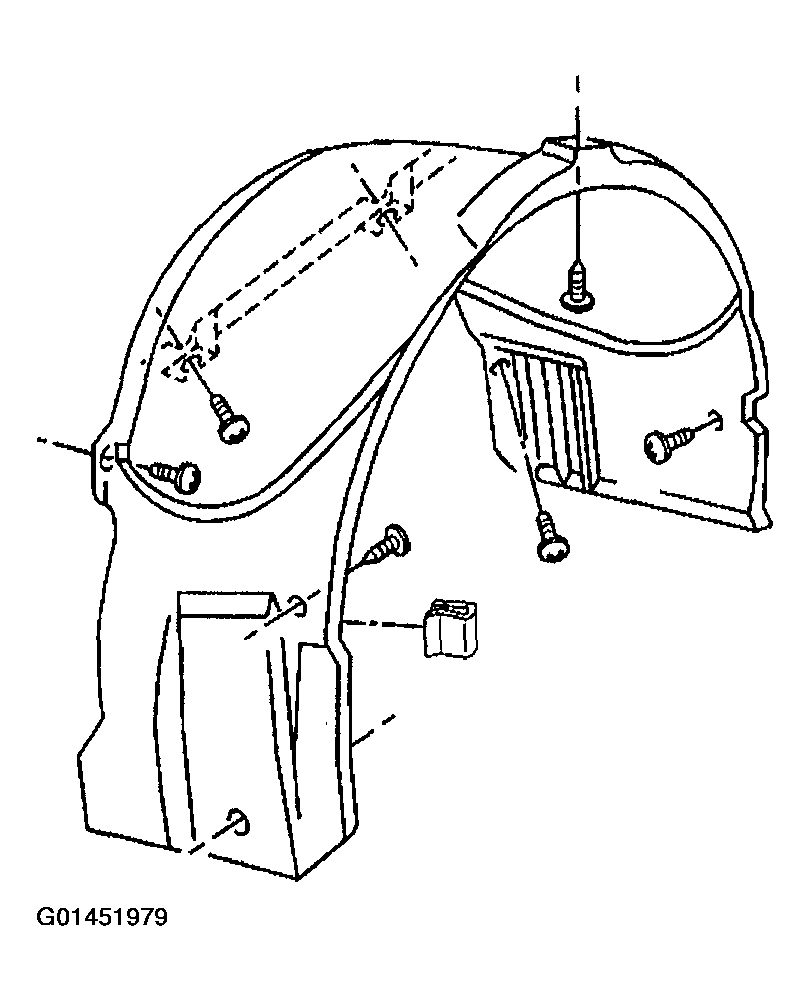

    Fig 1: Wheelhouse Liner Panel
    G01451979Courtesy of GENERAL MOTORS CORP.
