Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the roof panel.
    Fig 1: Roof Panel
    G01452159Courtesy of GENERAL MOTORS CORP.
  2. Remove the push-in retainers from the lower ends of the rear weatherstrip.
  3. Remove the screws from the upper corners of the rear weatherstrip.
  4. Remove the rear weatherstrip by pulling from the retainers.
  5. Inspect the weatherstrip for rips or tears. Replace if ripped or torn.

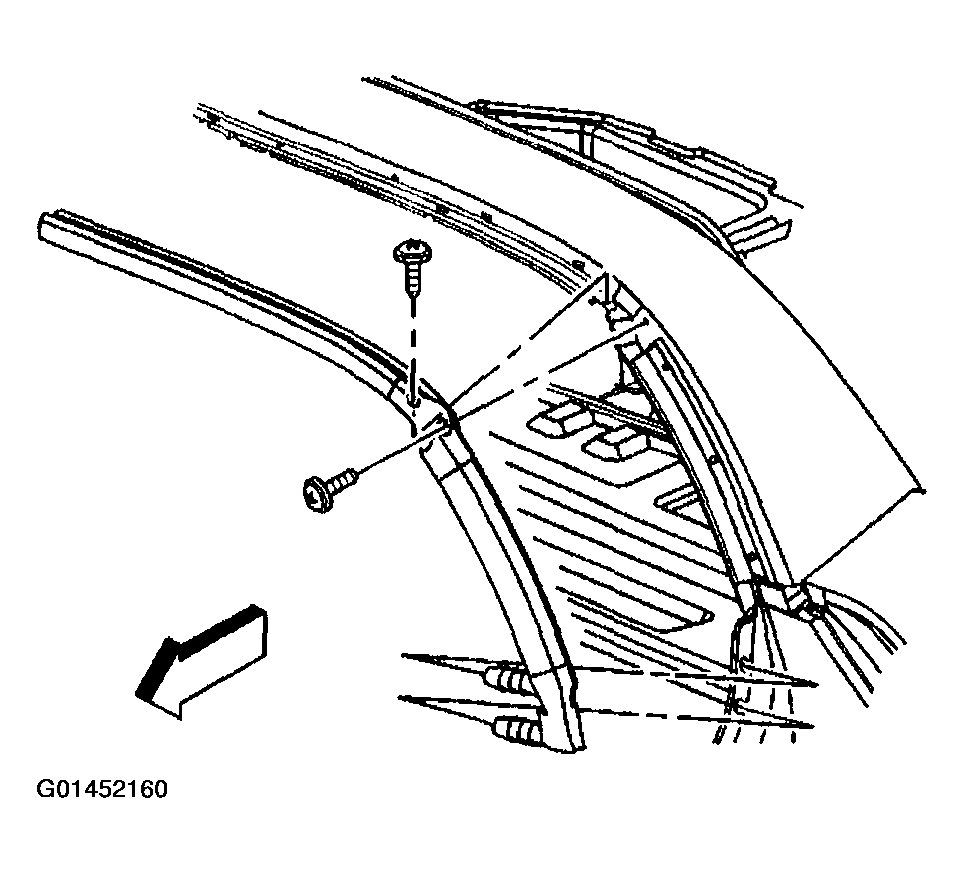

    Fig 2: Rear Weatherstrip
    G01452160Courtesy of GENERAL MOTORS CORP.
