Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install a spring clip to the right and left side of the lift window panel aligning the lower edge of the clip with the upper edge of the auxiliary seal (1).
  2. Apply a thin continuous bead of weatherstrip sealant inside the forward lip of the lid.
  3. Apply a thin bead of sealant, on the lower side of the lip, from the corners up approximately 400mm (16 in).

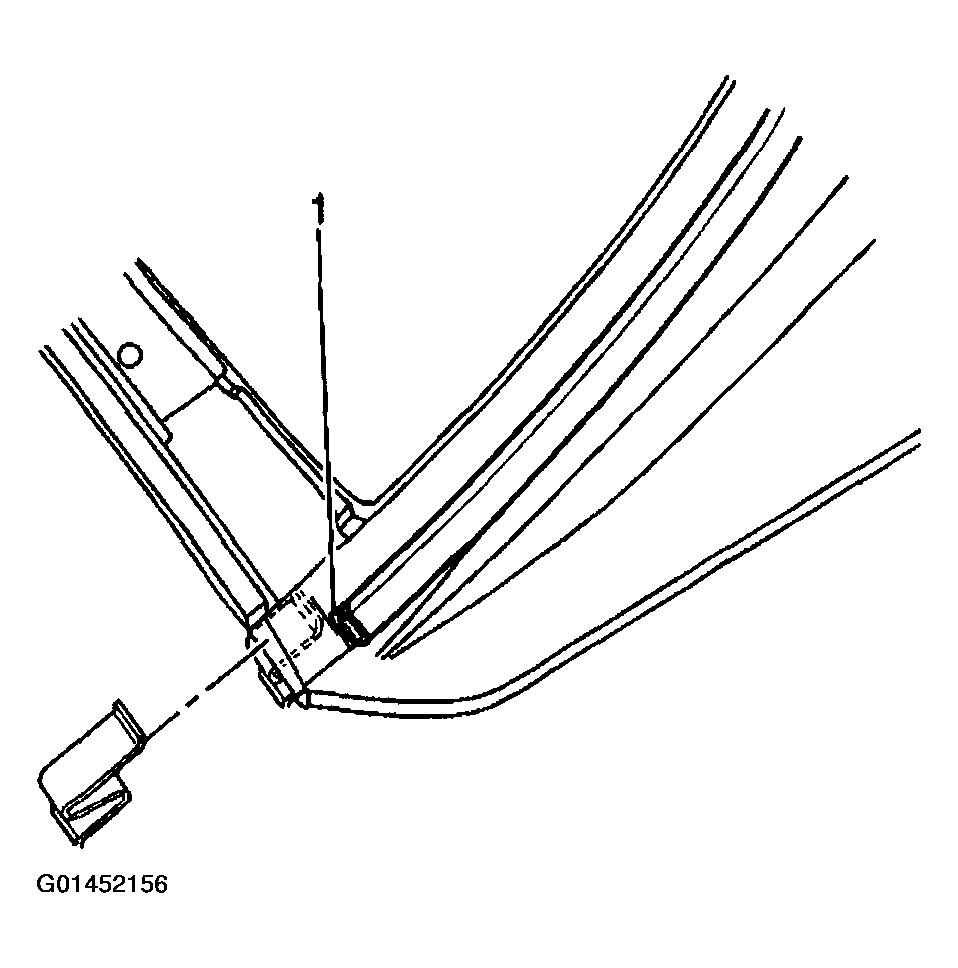

    Fig 1: Installing Spring Clip To Right & Left Side Of Lift Window Panel
    G01452156Courtesy of GENERAL MOTORS CORP.
  4. Position the weatherstrip to the panel.
    • The curved surface of the weatherstrip must point up.
    • Work from each end toward the centerline.
    Fig 2: Rear Compartment Lift Window Panel Weatherstrip
    G01452157Courtesy of GENERAL MOTORS CORP.
  5. Align the small notch (3) near the end of the weatherstrip over the edge of the lift window panel.
  6. Insert the flange of the weatherstrip into the spring clip (2).
  7. Install the remainder of the weatherstrip (1).
  8. Install the lift window panel. Refer to LIFT WINDOW PANEL REPLACEMENT - REAR  .

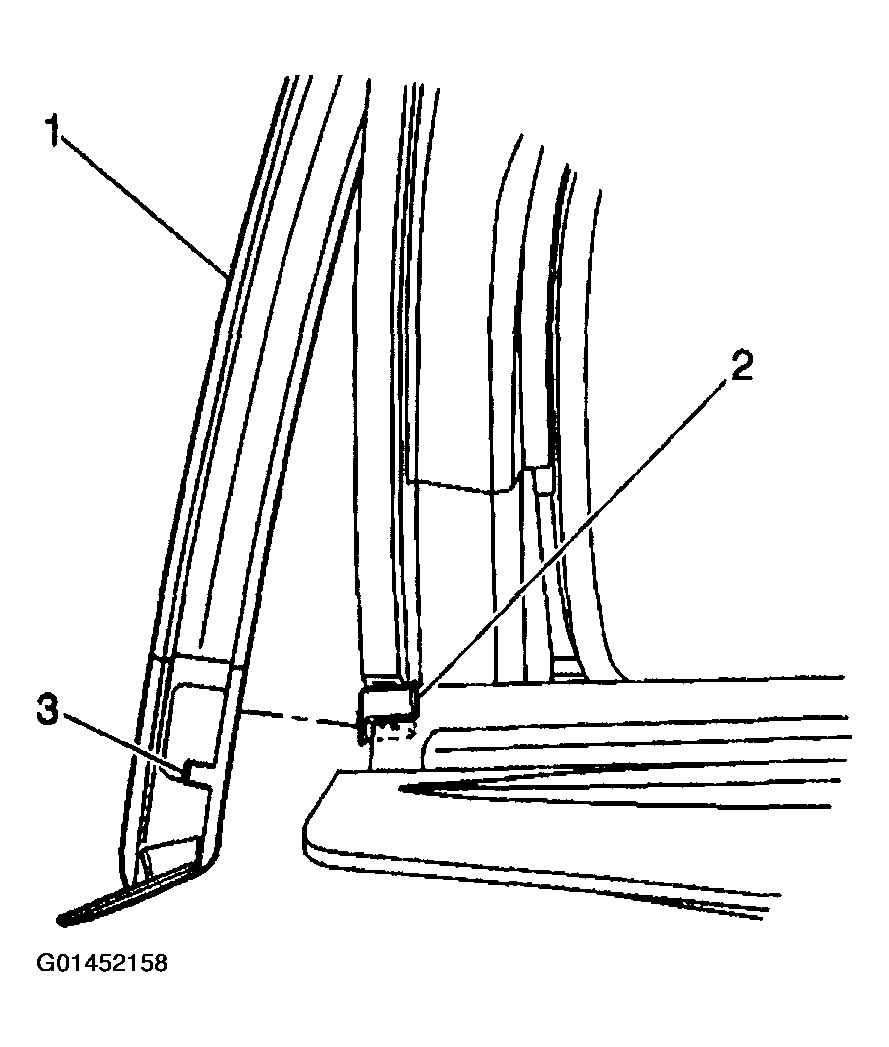

    Fig 3: Inserting Flange Of Weatherstrip Into Spring Clip
    G01452158Courtesy of GENERAL MOTORS CORP.
