Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the weatherstrip to the rear compartment flange with the upper lip of the seal facing outward.
  2. Seat the seal firmly to the flange.

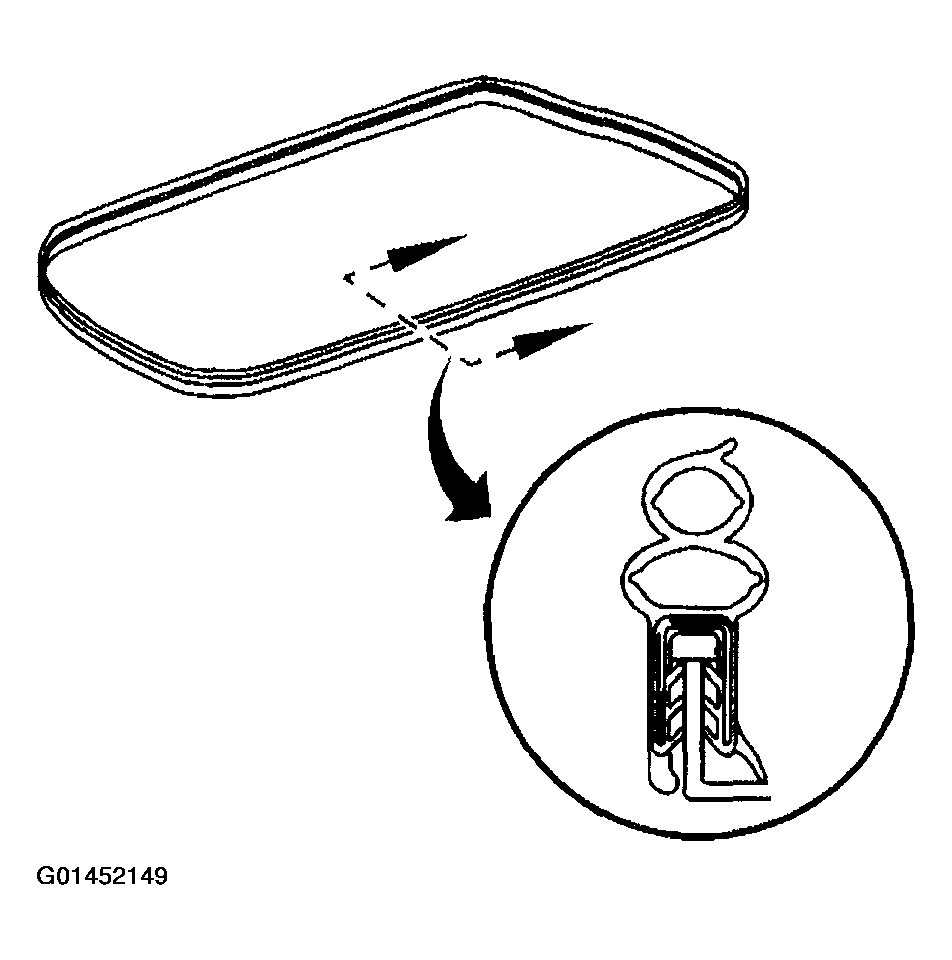

    Fig 1: Rear Compartment Opening Weatherstrip
    G01452149Courtesy of GENERAL MOTORS CORP.
