Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wheelhouse liner panel. Refer to WHEELHOUSE PANEL REPLACEMENT  .

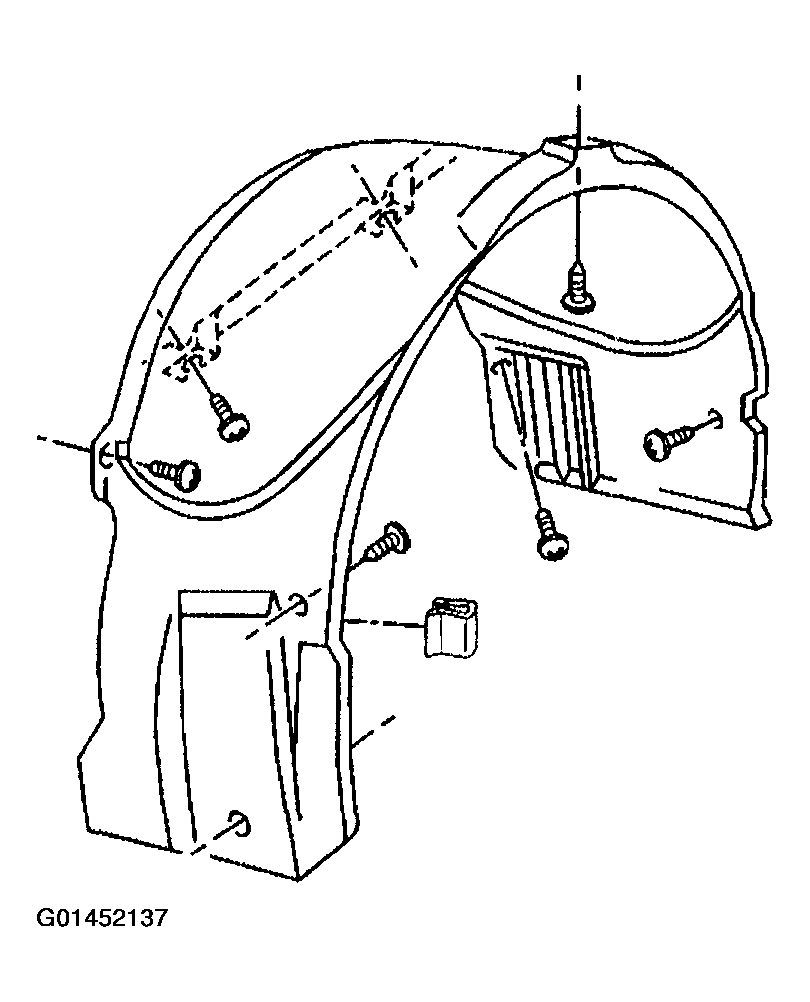

    Fig 1: Wheelhouse Liner Panel
    G01452137Courtesy of GENERAL MOTORS CORP.
  2. Remove the bolts attaching the quarter panel to the rear compartment brace.
  3. Remove the fuel system vent, (right brace only).

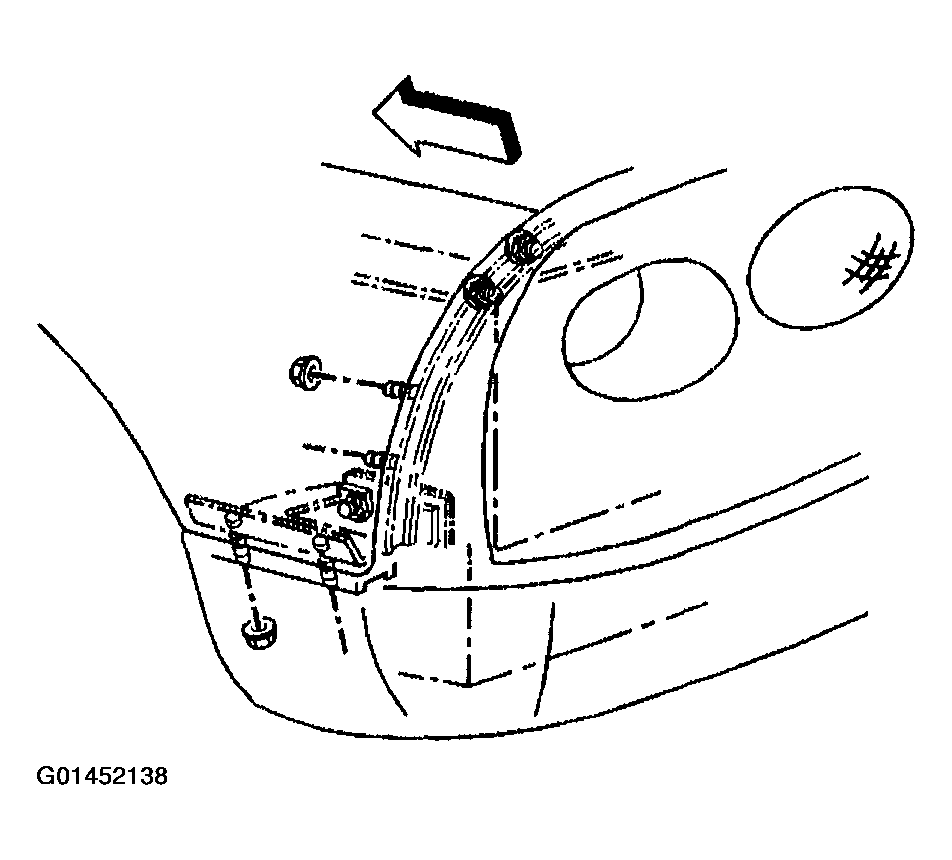

    Fig 2: Removing Bolts Attaching Quarter Panel To Rear Compartment Brace
    G01452138Courtesy of GENERAL MOTORS CORP.
  4. Remove the nuts attaching the rear compartment brace to the floor studs.
  5. Remove the brace.

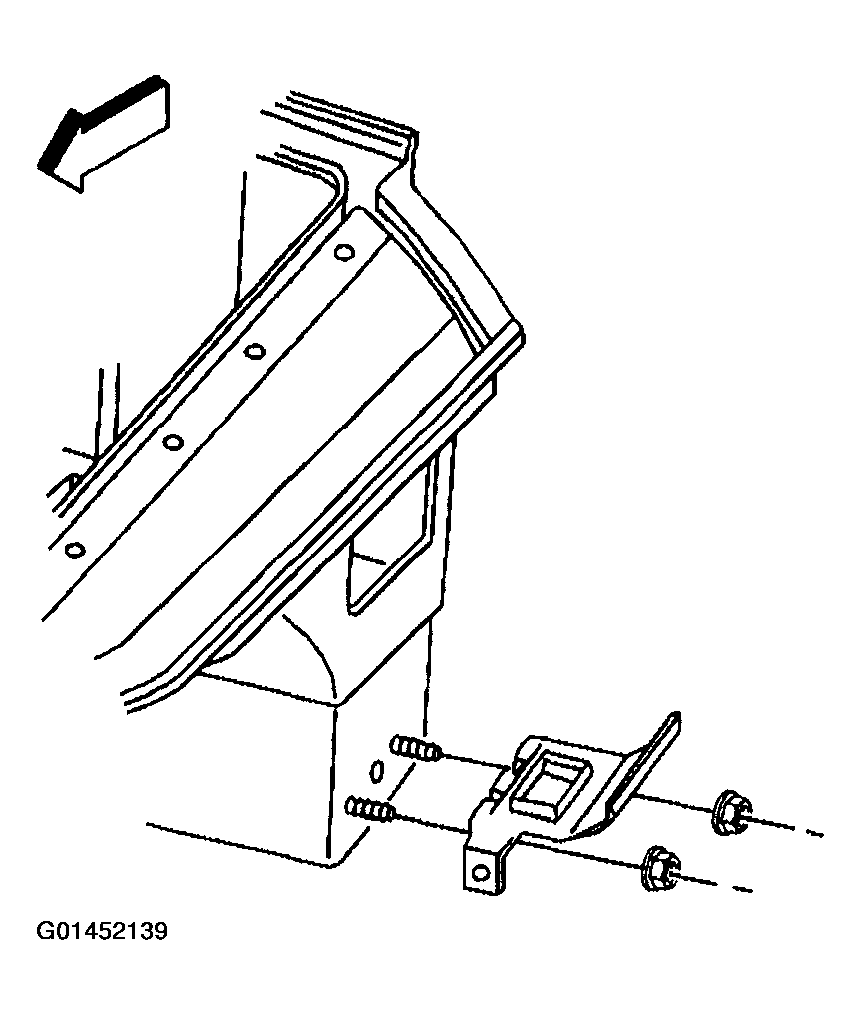

    Fig 3: Removing Nuts Attaching Rear Compartment Brace To Floor Studs
    G01452139Courtesy of GENERAL MOTORS CORP.
