Installation Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

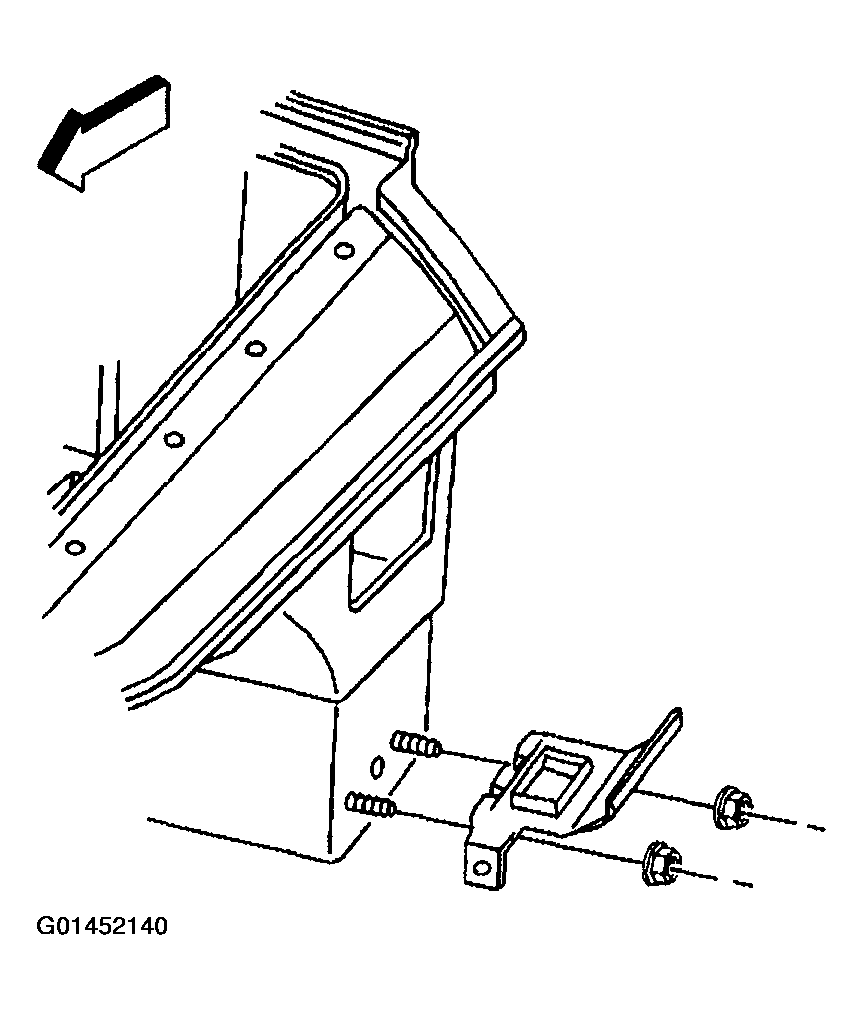

Install the brace and attaching nuts to the floor panel studs.
Tighten

Tighten the rear compartment brace to floor nuts to 10 N.m (89 lb in).
Install the fuel system vent, (right brace only).

Fig 1: Installing Brace & Attaching Nuts To Floor Panel Studs
Courtesy of GENERAL MOTORS CORP.

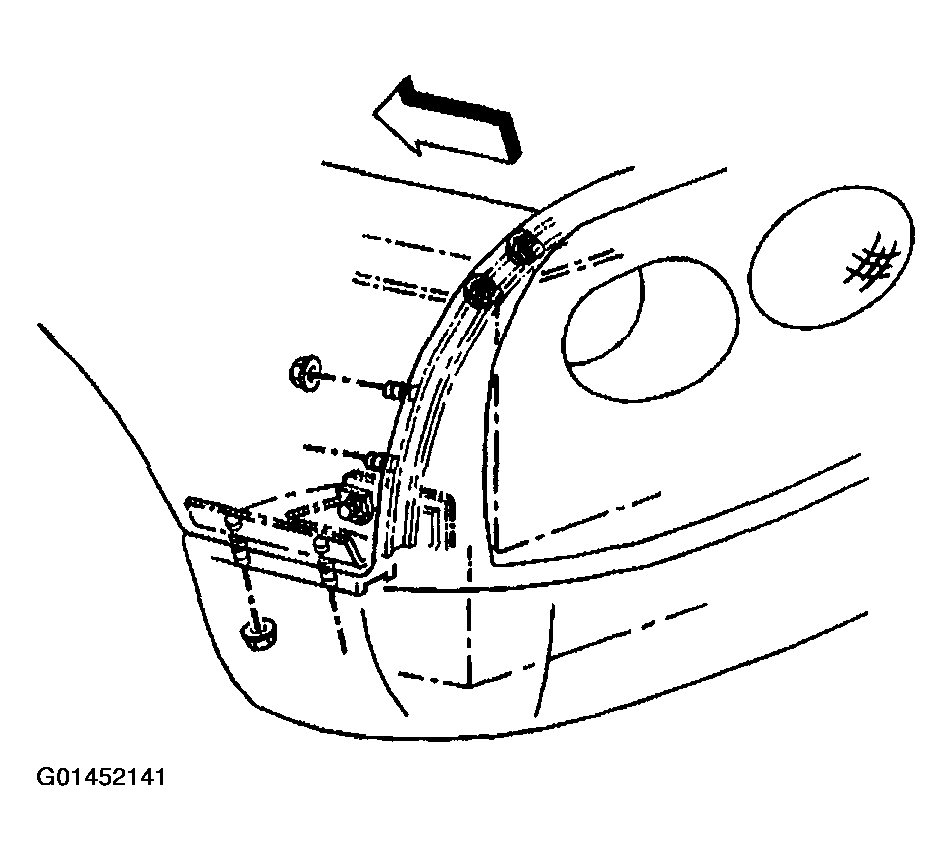

Install the bolts attaching the quarter panel to the rear compartment brace
Tighten

Tighten the quarter panel to rear compartment brace bolts to 5 N.m (44 lb in).

Fig 2: Installing Bolts Attaching Quarter Panel To Rear Compartment Brace
Courtesy of GENERAL MOTORS CORP.
Install the wheelhouse liner panel. Refer to WHEELHOUSE PANEL REPLACEMENT .

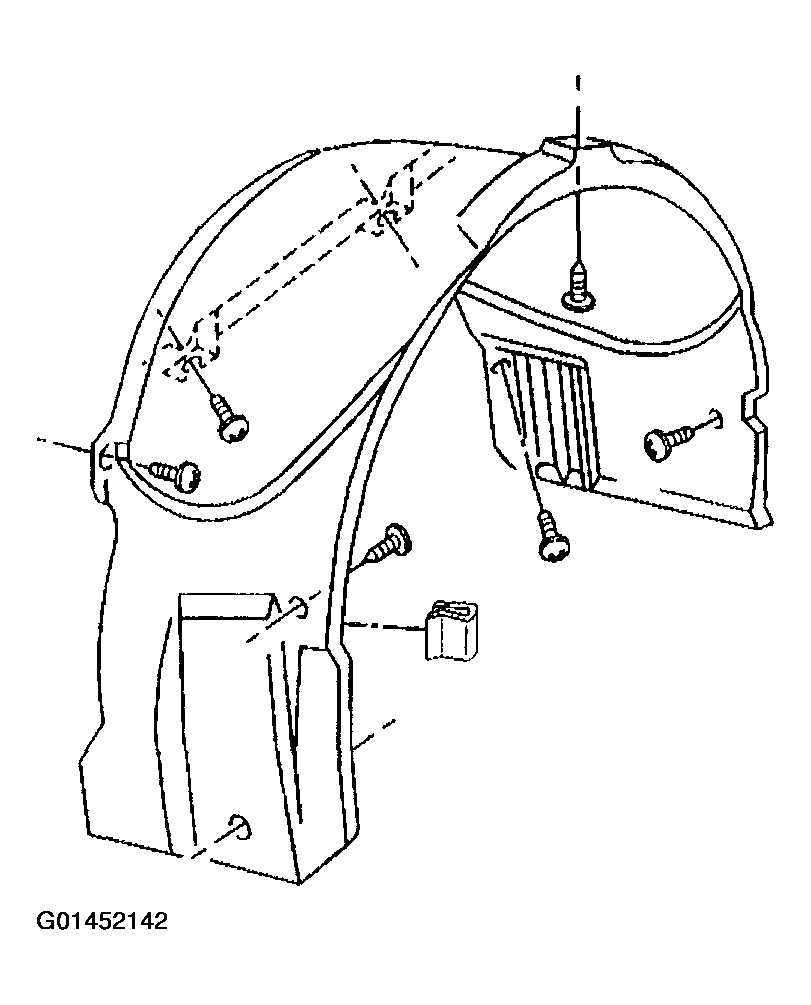

Fig 3: Wheelhouse Liner Panel
Courtesy of GENERAL MOTORS CORP.
