Removal Procedure

WARNING: This page is about a different car, the 2003 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the lid.
  2. Insert a screwdriver under the retaining clip on the upper end of the strut and pry the clip outward.
  3. Pull the strut from the upper ball stud.
  4. Insert a screwdriver under the retaining clip on the lower end of the strut and pry the clip outward.
  5. Pull the strut from the lower ball stud.

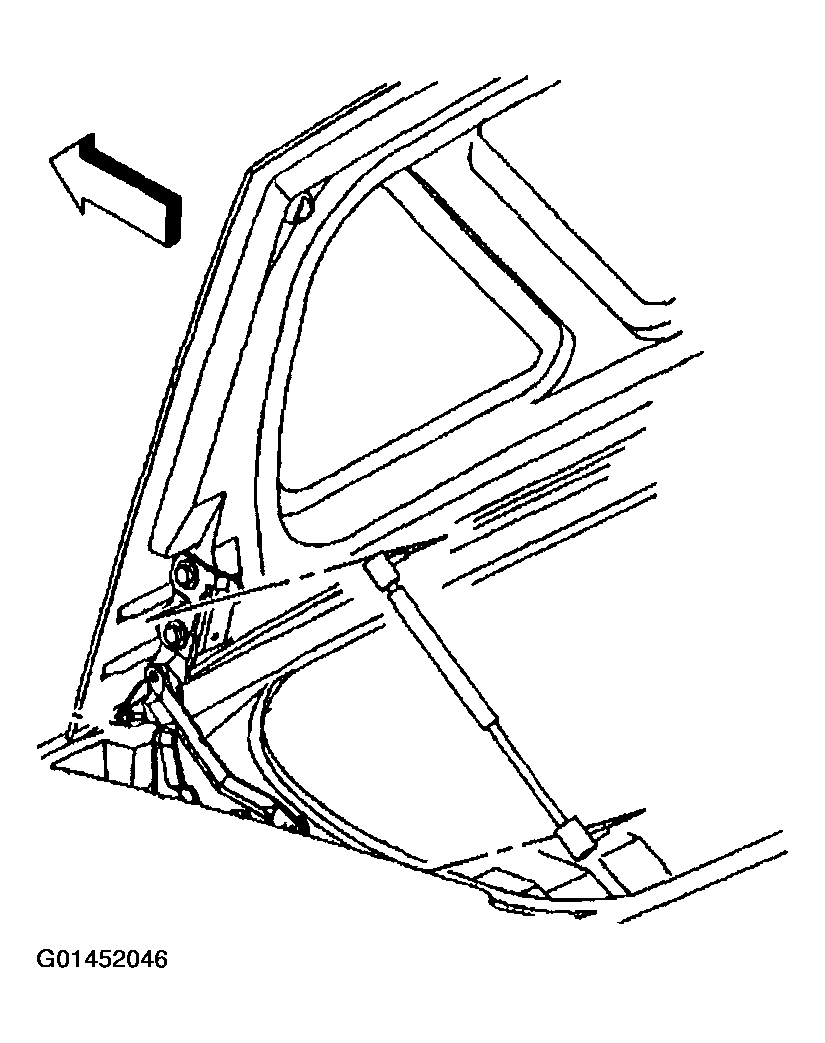

    Fig 1: Rear Compartment Lid Strut
    G01452046Courtesy of GENERAL MOTORS CORP.
